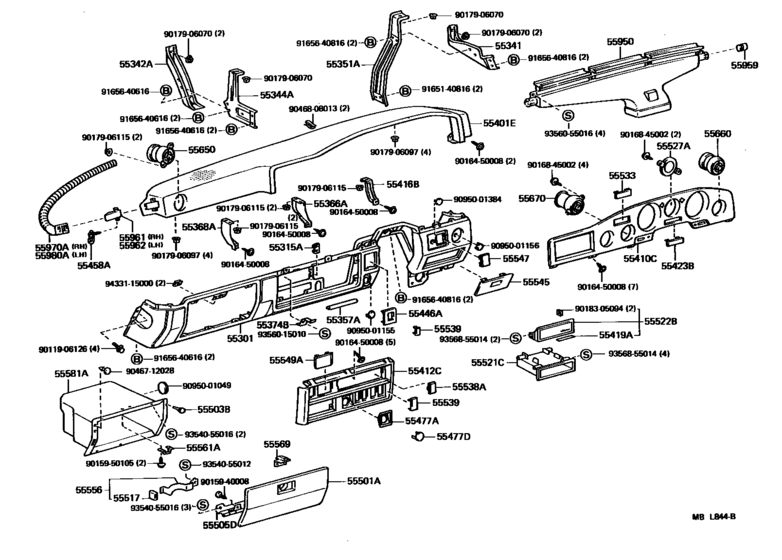

Instrument Panel & Glove Compartment ([08.1987 - ] (8708- )RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-90A69-05 Panel Sub-Assy, InstrumentINSTRUMENT [08.1987 - 01.1990] FJ62,HJ6#..ARL SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..GEN W(ASSIST GLIP),SEPIA BROWN,TRIM4# |
55301-90A69-05 |
US $647.92 |
||
|
55301
|
55301
55301-90A71-05 Panel Sub-Assy, InstrumentINSTRUMENT [08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..GEN SEPIA BROWN,TRIM4# |
55301-90A71-05 |
US $647.92 |
||
|
55315A
|
55315A
55315-90A00
Spacer, Instrument Panel, No.1
[08.1987 - 03.1992] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60 |
55315-90A00 |
— | ||
|
55341
|
55341
55341-90A00 Brace, Instrument Panel, No.1[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55341-90A00 |
US $96.10 |
||
|
55342A
|
55342A
55342-90A00 Brace, Instrument Panel, No.2[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55342-90A00 |
US $52.71 |
||
|
55344A
|
55344A
55344-90A00 Brace, Instrument Panel, No.3[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55344-90A00 |
US $59.84 |
||
|
55351A
|
55351A
55351-90A00 Brace, Instrument Panel To Floor[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55351-90A00 |
US $80.08 |
||
| replacement | |||||
|
55351A
|
55351A
55351-90A02 Brace, Instrument Panel To Floor[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55351-90A02 |
US $81.54 |
||
|
55357A
|
55357A
55357-90A00 Protector, Edge, No.1[08.1987 - 03.1992] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60 |
55357-90A00 |
US $4.02 |
||
|
55366A
|
55366A
55366-90A02 Bracket, Radio Mounting, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
55366-90A02 |
US $58.53 |
||
|
55368A
|
55368A
55368-90A03 Bracket, Radio Mounting, No.2[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
55368-90A03 |
US $59.26 |
||
|
55374B
|
55374B
55374-90A00 Bracket, Instrument Panel[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55374-90A00 |
US $3.93 |
||
|
55401E
|
55401E
55401-90A04-05
Pad Sub-Assy, Instrument Panel Safety
[08.1987 - 01.1990] HJ61 SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD SEPIA BROWN,TRIM4# |
55401-90A04-05 |
— | ||
|
55410C
|
55410C
55410-90G25
Panel Assy, Instrument Cluster Finish
[08.1987 - 10.1987] BJ60,FJ62,HJ60..RHD..GEN |
55410-90G25 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-90G26
Panel Assy, Instrument Cluster Finish
[08.1987 - 10.1987] BJ60,FJ62,HJ60..RHD..GEN |
55410-90G26 |
— | ||
|
55410C
|
55410C
55410-90G26
Panel Assy, Instrument Cluster Finish
[08.1987 - 10.1987] FJ62,HJ6#..ARL; BJ60..RHD W(TILT STEERING); FJ62,HJ60..RHD..GEN W(TILT STEERING) |
55410-90G26 |
— | ||
|
55412C
|
55412C
55412-90A09-05
Panel, Instrument Cluster Finish, Center No.1
[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD SEPIA BROWN,TRIM4# |
55412-90A09-05 |
— | ||
|
55416B
|
55416B
55416-90A00 Bracket, Instrument Pad, No.2[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD |
55416-90A00 |
US $49.07 |
||
|
55419A
|
55419A
55419-14020 Cushion, Instrument Cluster Finish Panel[08.1987 - 03.1992] FJ62..(STD,VX)..ME;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME) |
55419-14020 |
US $0.73 |
||
|
55423B
|
55423B
55423-90A00
Cover, Instrument Cluster Finish Panel
[08.1987 - 08.1988] HJ60..GEN;BJ60,FJ62..ARL,GEN |
55423-90A00 |
— | ||
|
55446A
|
55446A
55446-90A01-06
Base, Switch Hole, No.1
[08.1987 - 03.1992] BJ60,HJ60;FJ62..5F..VX..ME;FJ62,HJ61..MTM..(GX,STD) SEPIA BROWN,TRIM4# |
55446-90A01-06 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-90A01-13
Spacer, Instrument Panel Safety Pad, Set
[08.1987 - 03.1992] BJ60,HJ60;FJ62..5F..VX..ME;FJ62,HJ61..MTM..(GX,STD) SEPIA BROWN,TRIM4# |
55446-90A01-13 |
— | ||
|
55446A
|
55446A
55446-90A02-06
Base, Switch Hole, No.1
[08.1987 - 03.1992] FJ62,HJ61..4FC;FJ62,HJ61..5F..VX..ARL SEPIA BROWN,TRIM4#; HJ60..GX,VX;HJ60..RHD..STD;FJ62..5F..VX..ME;BJ60,FJ62,HJ61..MTM..(GX,STD) W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4# |
55446-90A02-06 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-90A02-13
Base, Switch Hole, No.1
[08.1987 - 03.1992] FJ62,HJ61..4FC;FJ62,HJ61..5F..VX..ARL SEPIA BROWN,TRIM4#; HJ60..GX,VX;HJ60..RHD..STD;FJ62..5F..VX..ME;BJ60,FJ62,HJ61..MTM..(GX,STD) W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4# |
55446-90A02-13 |
— | ||
|
55458A
|
55458A
55458-90A00
Cap, Instrument Panel Safety Pad
[08.1987 - 03.1992] HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60 |
55458-90A00 |
— | ||
|
55477A
|
55477A
55477-87001 Bezel, Cigar Lighter Hole[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
55477-87001 |
US $16.16 |
||
|
55477D
|
55477D
55477-10010-01
Cover, Cigarette Lighter Hole
[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,HJ60..ME BLACK,TRIM1#,4# |
55477-10010-01 |
— | ||
| replacement | |||||
|
55477D
|
55477D
55477-10010-C0
Cover, Cigarette Lighter Hole
[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,HJ60..ME BLACK,TRIM1#,4# |
55477-10010-C0 |
— | ||
|
55501A
|
55501A
55501-90A00-06
Door Sub-Assy, Glove Compartment
[08.1987 - 03.1992] HJ60..ARL,GEN;BJ60,FJ62,HJ61 SEPIA BROWN,TRIM4# |
55501-90A00-06 |
— | ||
|
55503B
|
55503B
90541-03015 Cushion, Instrument Panel Box[08.1987 - 03.1992] HJ60..ARL,GEN;BJ60,FJ62,HJ61 |
90541-03015 |
from US $1.38 |
||
|
55505D
|
55505D
55505-90A00
Hinge Sub-Assy, Glove Compartment Door
[08.1987 - 03.1992] HJ60..ARL,GEN;BJ60,FJ62,HJ61 |
55505-90A00 |
— | ||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[08.1987 - 03.1992] HJ60..ARL,GEN;BJ60,FJ62,HJ61 |
55517-14010 |
— | ||
|
55521C
|
55521C
55521-14050-01
Cover, Stereo Opening
[08.1987 - 03.1992] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; FJ62..(GX,VX)..GEN;BJ60,HJ60..(GX,VX)..(GEN,ME) BLACK,TRIM1#,4# |
55521-14050-01 |
— | ||
|
55522B
|
55522B
55522-32010
Cover, Radio Tuner Opening
[08.1987 - 03.1992] FJ62..(STD,VX)..ME;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME) |
55522-32010 |
— | ||
| replacement | |||||
|
55522B
|
55522B
55522-20070 Cover, Radio Tuner Opening[08.1987 - 03.1992] FJ62..(STD,VX)..ME;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME) |
55522-20070 |
US $22.01 |
||
|
55527A
|
55527A
55527-90A00 Cover, Meter Opening[08.1987 - 03.1992] HJ60..STD..ARL;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME);FJ62..5F..SRF..SO B..(GX,STD)..(ARL,ME) |
55527-90A00 |
US $11.50 |
||
|
55533
|
55533
55533-90A00 Cover, Auto Clock Hole[08.1987 - 03.1992] FJ62..STD..ME;BJ60,HJ6#..GX,STD;FJ62..(GX,STD)..(ARL,GEN) |
55533-90A00 |
from US $19.19 |
||
|
55538A
|
55538A
55538-22010
Cover, Cooler Switch Hole
[08.1987 - 03.1992] BJ60,HJ61;FJ62..STD..ME;FJ62,HJ60..ARL,GEN |
55538-22010 |
— | ||
|
55539
|
55539
55539-32010-01
Cover, Rear Window Wiper Switch Hole
[08.1987 - 12.1987] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
55539-32010-01 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[08.1987 - 12.1987] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
55539-32010-C0 |
from US $2.95 |
||
|
55539
|
55539
55539-32010-11
Cover, Cooler Switch Hole
[12.1987 - 08.1990] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
55539-32010-11 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[12.1987 - 08.1990] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
55539-32010-C0 |
from US $2.95 |
||
|
55545
|
55545
55545-90A01-06 Cover, Fuse Box Opening[08.1987 - 08.1988] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
55545-90A01-06 |
US $24.62 |
||
| replacement | |||||
|
55545
|
55545
55545-90A01-03 Cover, Fuse Box Opening (Gray color)[08.1987 - 08.1988] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
55545-90A01-03 |
from US $24.62 |
||
|
55547
|
55547
55547-90A00
Cover, Remote Control Mirror Hole
[08.1987 - 03.1992] BJ60,HJ6#;FJ62..GX,STD;FJ62..VX..(ARL,GEN) |
55547-90A00 |
— | ||
|
55549A
|
55549A
55549-90A00
Cover, Rear Cooler Switch Hole
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
55549-90A00 |
— | ||
|
55556
|
55556
55556-90A00 Arm, Glove Compartment Door Check[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
55556-90A00 |
US $30.28 |
||
|
55561A
|
55561A
55561-90A00 Striker, Glove Compartment Door Lock[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
55561-90A00 |
US $9.17 |
||
|
55569
|
55569
55569-90A00-06 Cover, Glove Compartment Door Lock[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
55569-90A00-06 |
US $9.17 |
||
| replacement | |||||
|
55569
|
55569
55569-90A00-23 Cover, Glove Compartment Door Lock[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
55569-90A00-23 |
US $9.17 |
||
|
55581A
|
55581A
55581-90A04
Compartment, Glove
[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
55581-90A04 |
— | ||
|
55650
|
55650
55650-90A02
Register Assy, Instrument Panel, No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..ARL,GEN |
55650-90A02 |
— | ||
|
55660
|
55660
55660-90A00
Register Assy, Instrument Panel, No.2
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..ARL,GEN |
55660-90A00 |
— | ||
|
55670
|
55670
55670-90A02
Register Assy, Instrument Panel, No.3
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..ARL,GEN |
55670-90A02 |
— | ||
|
55950
|
55950
55950-90A00 Nozzle Assy, Defroster[08.1987 - 05.1988] BJ60,FJ62,HJ6#..RHD |
55950-90A00 |
US $59.55 |
||
| replacement | |||||
|
55950
|
55950
55950-90A02 Nozzle Assy, Defroster[08.1987 - 05.1988] BJ60,FJ62,HJ6#..RHD |
55950-90A02 |
US $59.84 |
||
|
55950
|
55950
55950-90A02 Nozzle Assy, Defroster[05.1988 - 01.1990] BJ60,FJ62,HJ6#..RHD |
55950-90A02 |
US $59.84 |
||
|
55959
|
55959
55959-14010 Cover, Defroster Nozzle Opening, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
55959-14010 |
US $2.27 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $0.83 |
||
|
9015940008
|
9015940008
90159-40008
New Genuine Part
|
90159-40008 |
— | ||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.65 |
||
|
9016450008
|
9016450008
90164-50008 SCREW |
90164-50008 |
from US $0.72 |
||
|
9016845002
|
9016845002
90168-45002 New Genuine Part |
90168-45002 |
US $1.65 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.74 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.51 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.86 |
||
|
9046712028
|
9046712028
90467-12028 New Genuine Part |
90467-12028 |
US $2.18 |
||
|
9046808013
|
9046808013
90468-08013 New Genuine Part |
90468-08013 |
US $2.33 |
||
|
9095001049
|
9095001049
90950-01049
New Genuine Part
|
90950-01049 |
— | ||
|
9095001155
|
9095001155
90950-01155
Cover, Choke Knob Hole
|
90950-01155 |
— | ||
| replacement | |||||
|
9095001155
|
9095001155
90950-01725
Cover, Choke Knob Hole
|
90950-01725 |
— | ||
|
9095001156
|
9095001156
90950-01156
Plug, Hole(For Instrument Panel)
|
90950-01156 |
— | ||
|
9095001384
|
9095001384
90950-01384 New Genuine Part |
90950-01384 |
US $9.90 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.91 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $0.83 |
||
|
9165640816
|
9165640816
91656-40816 New Genuine Part |
91656-40816 |
US $1.89 |
||
| replacement | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.80 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $0.69 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $0.83 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $0.83 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.63 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9433115000
|
9433115000
94331-15000 New Genuine Part |
94331-15000 |
US $2.48 |
||
