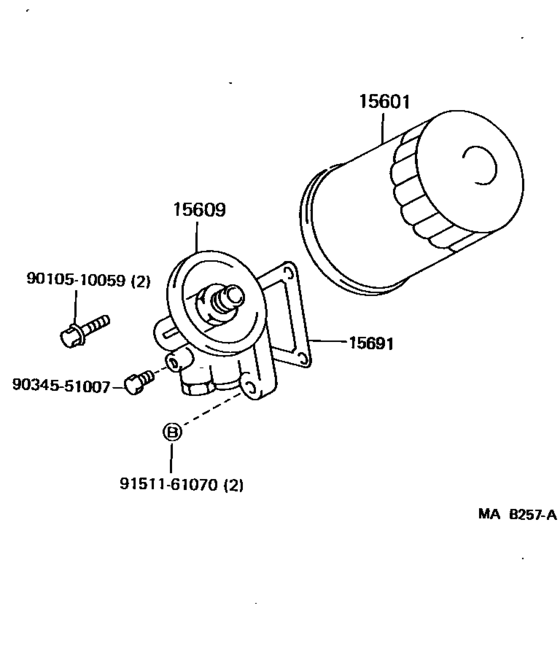

Oil Filter ([08.1988 - ] (8808- )3B) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15601
|
15601
15600-41010
Filter Assy, Oil
[08.1987 - 03.1992] 3B..BJ60; 3F..FJ62 |
15600-41010 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-40002 Filter Assy, Oil[08.1987 - 03.1992] 3B..BJ60; 3F..FJ62 |
90915-40002 |
from US $13.62 |
||
|
15609
|
15609
15609-58010
Bracket Sub-Assy, Oil Filter
[08.1987 - 08.1988] 3B..BJ60 |
15609-58010 |
— | ||
|
15609
|
15609
15609-58020
Bracket Sub-Assy, Oil Filter
[08.1988 - 01.1990] 3B..BJ60 |
15609-58020 |
— | ||
|
15691
|
15691
15691-56030
Gasket, Oil Filter
[08.1987 - 08.1988] 3B..BJ60 |
15691-56030 |
— | ||
| replacement | |||||
|
15691
|
15691
15691-56031
Gasket, Oil Filter
[08.1987 - 08.1988] 3B..BJ60 |
15691-56031 |
— | ||
|
15691
|
15691
15691-56040
Gasket, Oil Filter
[08.1988 - 01.1990] 3B..BJ60 |
15691-56040 |
— | ||
| replacement | |||||
|
15691
|
15691
15691-56041 Gasket, Oil Filter[08.1988 - 01.1990] 3B..BJ60 |
15691-56041 |
from US $3.23 |
||
|
9010510059
|
9010510059
90105-10059 New Genuine Part |
90105-10059 |
US $3.93 |
||
|
9034551007
|
9034551007
90345-51007 Plug, W/head Taper Screw, No.1 |
90345-51007 |
US $0.70 |
||
|
9151161070
|
9151161070
91511-61070
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-61070 |
— | ||
| replacement | |||||
|
9151161070
|
9151161070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.66 |
||
