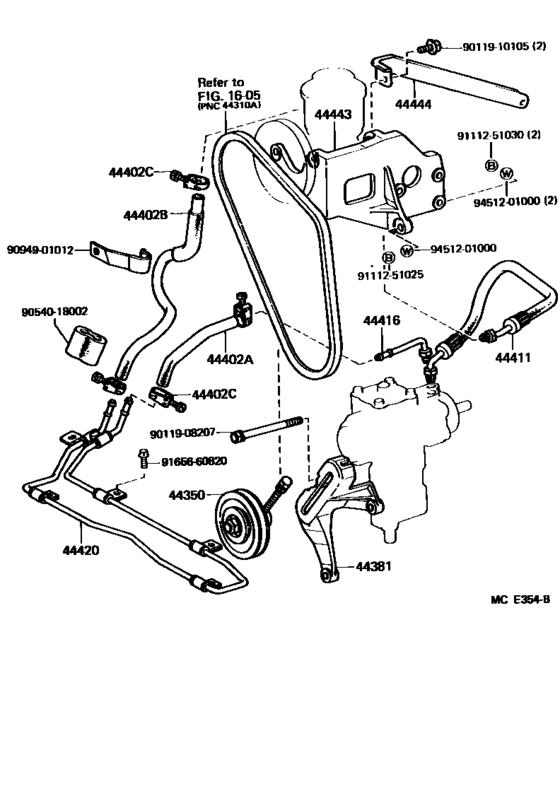

Power Steering Tube ([08.1987 - ] (8708- )BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44350
|
44350
44350-60010
Pulley Assy, Power Steering Idle
[08.1987 - 01.1990] BJ60 |
44350-60010 |
— | ||
|
44381
|
44381
44381-60020
Bracket, Power Steering Idle Pulley
[08.1987 - 01.1990] BJ60 |
44381-60020 |
— | ||
|
44402A
|
44402A
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
90445-18089 |
from US $8.97 |
||
|
44402B
|
44402B
90447-18008 Hose, Power Steering Oil Cooler OutletPOWER STEERING OIL COOLER OUTLET [08.1987 - 01.1990] BJ60..RHD |
90447-18008 |
US $34.36 |
||
|
44402C
|
44402C
90460-01001 Clamp, Oil Cooler Hose[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
90460-01001 |
US $10.39 |
||
|
44411
|
44411
44411-60280 Hose, Pressure FeedPRESSURE FEED [08.1987 - 01.1990] BJ60..RHD |
44411-60280 |
US $248.98 |
||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
44416-60061 |
— | ||
|
44420
|
44420
44420-60060
Cooler Sub-Assy, Power Steering Oil, No.1
[08.1987 - 01.1990] BJ60,FJ62..RHD |
44420-60060 |
— | ||
|
44443
|
44443
44443-60060
Bracket, Pump
[08.1987 - 01.1990] BJ60 |
44443-60060 |
— | ||
|
44444
|
44444
44444-60010
Stay, Pump, Rear
[08.1987 - 08.1988] BJ60 |
44444-60010 |
— | ||
|
44444
|
44444
44444-60030 Stay, Pump, Rear[08.1988 - 01.1990] BJ60 |
44444-60030 |
US $26.35 |
||
|
9011908207
|
9011908207
90119-08207
New Genuine Part
|
90119-08207 |
— | ||
| replacement | |||||
|
9011908207
|
9011908207
90119-08768
New Genuine Part
|
90119-08768 |
— | ||
|
9011910105
|
9011910105
90119-10105
New Genuine Part
|
90119-10105 |
— | ||
|
9054018002
|
9054018002
90540-18002
Cushion(For Pressure Feed Hose)
|
90540-18002 |
— | ||
|
9094901012
|
9094901012
90949-01012 New Genuine Part |
90949-01012 |
US $7.72 |
||
|
9111251025
|
9111251025
91112-51025
Bolt(For Torque Arm Setting)
|
91112-51025 |
— | ||
| replacement | |||||
|
9111251025
|
9111251025
91112-61025 Bolt(For Clutch Pedal Stopper) |
91112-61025 |
from US $0.84 |
||
|
9111251030
|
9111251030
91112-51030
Pin Or Bolt(For Steering Worm Yoke)
|
91112-51030 |
— | ||
| replacement | |||||
|
9111251030
|
9111251030
91112-61032
Pin Or Bolt(For Steering Worm Yoke)
|
91112-61032 |
— | ||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
