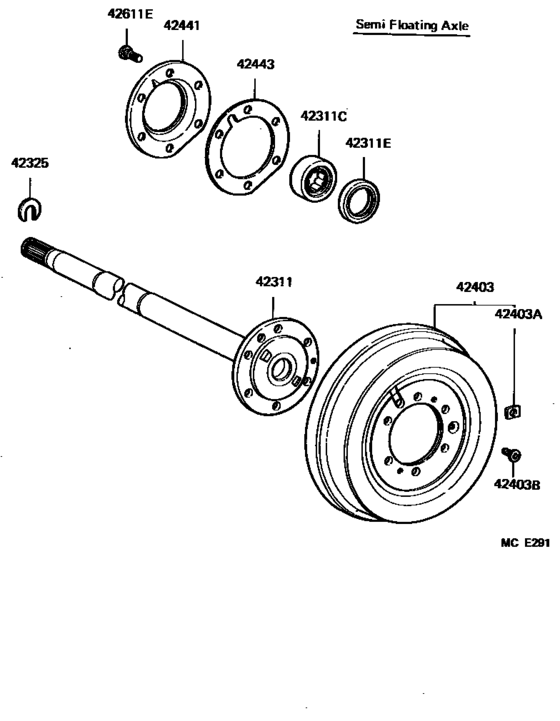

Rear Axle Shaft & Hub ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311
|
42311
42311-60052
Shaft, Rear Axle
[08.1987 - 04.1990] BJ60,FJ62,HJ60..GEN,ME W(*FFA),RH |
42311-60052 |
— | ||
| replacements | |||||
|
42311
|
42311
42311-60053 Shaft, Rear Axle, Rh[08.1987 - 04.1990] BJ60,FJ62,HJ60..GEN,ME W(*FFA),RH |
42311-60053 |
US $480.48 |
||
|
42311
|
42311
90310-36003 Seal, Oil (For Rear Axle Shaft Outer)[08.1987 - 04.1990] BJ60,FJ62,HJ60..GEN,ME W(*FFA),RH |
90310-36003 |
from US $2.61 |
||
|
42311
|
42311
42311-60060
Shaft, Rear Axle
[08.1987 - 05.1989] BJ60,FJ62,HJ60..GEN,ME RH |
42311-60060 |
— | ||
| replacement | |||||
|
42311
|
42311
42311-60061
Shaft, Rear Axle
[08.1987 - 05.1989] BJ60,FJ62,HJ60..GEN,ME RH |
42311-60061 |
— | ||
|
42311
|
42311
42311-60061
Shaft, Rear Axle
[05.1989 - 03.1992] BJ60,FJ62,HJ60..GEN,ME RH |
42311-60061 |
— | ||
|
42311
|
42311
42312-60050
Shaft, Rear Axle
[08.1987 - 05.1989] BJ60,FJ62,HJ60..GEN,ME LH |
42312-60050 |
— | ||
| replacement | |||||
|
42311
|
42311
42312-60051
Shaft, Rear Axle
[08.1987 - 05.1989] BJ60,FJ62,HJ60..GEN,ME LH |
42312-60051 |
— | ||
|
42311
|
42311
42312-60051
Shaft, Rear Axle
[05.1989 - 03.1992] BJ60,FJ62,HJ60..GEN,ME LH |
42312-60051 |
— | ||
|
42311
|
42311
42312-60060
Shaft, Rear Axle
[08.1987 - 01.1990] FJ62,HJ6#..ARL LH; BJ60;HJ60..ME W(*FFA),LH |
42312-60060 |
— | ||
| replacements | |||||
|
42311
|
42311
42312-60061
Shaft, Rear Axle, Lh
[08.1987 - 01.1990] FJ62,HJ6#..ARL LH; BJ60;HJ60..ME W(*FFA),LH |
42312-60061 |
— | ||
|
42311
|
42311
90310-36003 Seal, Oil (For Rear Axle Shaft Outer)[08.1987 - 01.1990] FJ62,HJ6#..ARL LH; BJ60;HJ60..ME W(*FFA),LH |
90310-36003 |
from US $2.61 |
||
|
42311C
|
42311C
90365-47013 Bearing (For Rear Axle Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
90365-47013 |
US $32.40 |
||
|
42311E
|
42311E
90310-35001 Seal, Oil (For Rear Axle Shaft)[08.1987 - 01.1990] FJ62,HJ6#..ARL; BJ60;HJ60..ME W(*FFA) |
90310-35001 |
from US $2.75 |
||
|
42311E
|
42311E
90311-47001 Seal, Oil (For Rear Axle Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
90311-47001 |
from US $5.92 |
||
|
42325
|
42325
42325-55010 Lock, Rear Axle Shaft[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
42325-55010 |
from US $3.99 |
||
|
42403
|
42403
42431-60020 Drum Sub-Assy, Rear Brake[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
42431-60020 |
US $237.62 |
||
|
42403A
|
42403A
90937-01117 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ6# 10G |
90937-01117 |
US $1.14 |
||
|
42403A
|
42403A
90937-01118 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ6# 20G |
90937-01118 |
US $1.05 |
||
|
42403A
|
42403A
90937-01119 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ6# 30G |
90937-01119 |
US $1.05 |
||
|
42403A
|
42403A
90937-01121 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ6# 50G |
90937-01121 |
US $1.05 |
||
|
42403A
|
42403A
90937-01122 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ6# 60G |
90937-01122 |
US $1.05 |
||
|
42403B
|
42403B
90113-10003 Bolt, Set (For Rear Brake Drum Setting)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90113-10003 |
from US $0.67 |
||
|
42441
|
42441
42441-30010 Deflector, Brake Drum Oil[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
42441-30010 |
from US $6.69 |
||
|
42443
|
42443
42443-55020 Gasket, Brake Drum Oil Deflector[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
42443-55020 |
from US $1.24 |
||
|
42611E
|
42611E
90942-02052 Bolt, Hub (For Rear Axle)[08.1987 - 03.1992] HJ60..ARL,GEN;BJ60,FJ62,HJ61 |
90942-02052 |
US $3.03 |
||
