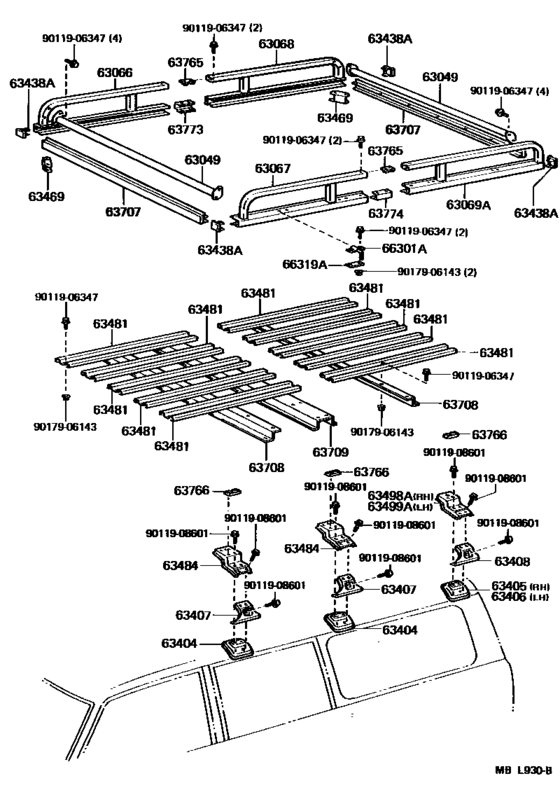

Roof Panel & Back Panel ([08.1987 - ] (8708- )SRF) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63049
|
63049
63049-90K01 Frame Sub-Assy, Roof Rack, Upper EndROOF RACK, UPPER END [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63049-90K01 |
US $152.88 |
||
|
63066
|
63066
63066-90A05 Frame Sub-Assy, Roof Rack, Lower Front RhROOF RACK, LOWER FRONT RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63066-90A05 |
US $419.33 |
||
|
63067
|
63067
63067-90A05 Frame Sub-Assy, Roof Rack, Lower Front LhROOF RACK, LOWER FRONT LH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63067-90A05 |
US $419.33 |
||
|
63068
|
63068
63068-90A05 Frame Sub-Assy, Roof Rack, Lower Rear RhROOF RACK, LOWER REAR RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63068-90A05 |
US $419.33 |
||
|
63069A
|
63069A
63069-90A05 Frame Sub-Assy, Roof Rack, Lower Rear LhROOF RACK, LOWER REAR LH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63069-90A05 |
US $419.33 |
||
|
63404
|
63404
63404-90A01 Leg Sub-Assy, Roof Rack, FrontROOF RACK, FRONT [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63404-90A01 |
US $160.16 |
||
|
63405
|
63405
63405-90A01 Leg Sub-Assy, Roof Rack, Rear RhROOF RACK, REAR RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63405-90A01 |
US $160.16 |
||
|
63406
|
63406
63406-90A01 Leg Sub-Assy, Roof Rack, Rear LhROOF RACK, REAR LH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63406-90A01 |
US $160.16 |
||
|
63407
|
63407
63407-90A01 Support Sub-Assy, Roof Rack Leg, FrontROOF RACK LEG, FRONT [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63407-90A01 |
US $27.52 |
||
|
63408
|
63408
63408-90A01 Support Sub-Assy, Roof Rack Leg, RearROOF RACK LEG, REAR [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63408-90A01 |
US $27.52 |
||
|
63438A
|
63438A
63438-90K00 Cover, Roof Rack End, No.1ROOF RACK END, NO.1 [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) FRONT |
63438-90K00 |
US $7.13 |
||
|
63438A
|
63438A
63439-90K00 Cover, Roof Rack End, No.2ROOF RACK END, NO.1 [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) REAR |
63439-90K00 |
US $7.13 |
||
|
63469
|
63469
63469-90K01 Gusset, Roof Rack Lower FrameROOF RACK LOWER FRAME [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63469-90K01 |
US $13.40 |
||
|
63481
|
63481
63481-90K01 Board, Roof Rack Deck, No.1ROOF RACK DECK, NO.1 [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63481-90K01 |
US $128.13 |
||
|
63484
|
63484
63484-90K01 Stay, Roof RackROOF RACK [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63484-90K01 |
US $33.63 |
||
|
63498A
|
63498A
63498-90A01 Stay, Roof Rack, Rear RhROOF RACK, REAR RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63498-90A01 |
US $44.41 |
||
|
63499A
|
63499A
63499-90A01 Stay, Roof Rack, Rear LhROOF RACK, REAR LH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63499-90A01 |
US $44.41 |
||
|
63707
|
63707
63463-90K01 Frame Sub-Assy, Roof Rack, Lower No.1ROOF RACK, LOWER NO.1 [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63463-90K01 |
US $125.22 |
||
|
63708
|
63708
63708-90A02 Frame Sub-Assy, Roof Rack, Lower No.2ROOF RACK, LOWER NO.2 [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63708-90A02 |
US $190.74 |
||
|
63709
|
63709
63795-90A01 Frame Sub-Assy, Roof Rack, Lower No.3ROOF RACK, LOWER NO.3 [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63795-90A01 |
US $225.68 |
||
| replacement | |||||
|
63709
|
63709
63795-90A02 Frame Sub-Assy, Roof Rack, Lower No.3[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63795-90A02 |
US $225.68 |
||
|
63765
|
63765
63765-90K00 Retainer, Roof Rack, UpperROOF RACK, UPPER [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
63765-90K00 |
US $5.24 |
||
|
63766
|
63766
63766-90K04 Retainer, Roof Rack, LowerROOF RACK, LOWER [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63766-90K04 |
US $7.28 |
||
|
63773
|
63773
63773-90K01 Gusset, Roof Rack Center Frame, RhROOF RACK CENTER FRAME, RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63773-90K01 |
US $17.33 |
||
|
63774
|
63774
63773-90K01 Gusset, Roof Rack Center Frame, RhROOF RACK CENTER FRAME, RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..SRF..(GEN,ME) |
63773-90K01 |
US $17.33 |
||
|
66301A
|
66301A
66301-90K01 Hook Sub-Assy, RopeROPE [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
66301-90K01 |
US $5.10 |
||
|
66319A
|
66319A
66319-90K00 Plate, Rope HookROPE HOOK [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
66319-90K00 |
US $2.04 |
||
|
9011906347
|
9011906347
90119-06347 New Genuine Part |
90119-06347 |
US $1.43 |
||
|
9011908601
|
9011908601
90119-08601 Bolt(For Front Stabilizer Bar Protector) |
90119-08601 |
US $1.40 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.78 |
||
