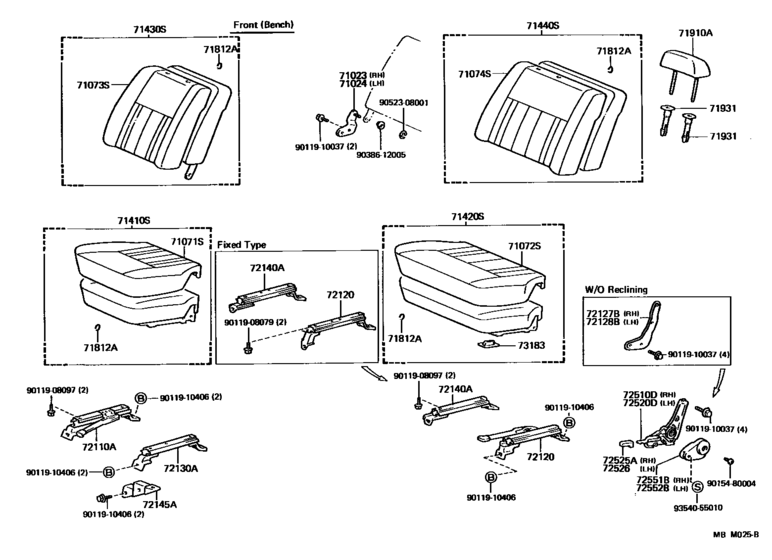

Seat & Seat Track ([08.1987 - ] (8708- )RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71023
|
71023
71024-90A04 Plate Sub-Assy, Front Seat Hinge, RhFRONT SEAT HINGE, RH [08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN |
71024-90A04 |
US $18.35 |
||
|
71024
|
71024
71023-90A02 Plate Sub-Assy, Front Seat Hinge, LhFRONT SEAT HINGE, RH [08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD..SRF |
71023-90A02 |
US $66.98 |
||
|
71071S
|
71071S
71071-90A53-06 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71071-90A53-06 |
US $190.74 |
||
|
71072S
|
71072S
71072-90A34-06
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..LHD..STD SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71072-90A34-06 |
— | ||
|
71072S
|
71072S
71072-90A38-06
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN SEPIA BROWN,TRIM4# |
71072-90A38-06 |
— | ||
|
71073S
|
71073S
71073-90A75-06
Cover, Front Seat Back, Rh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(HEAD REST),SEPIA BROWN,TRIM4# |
71073-90A75-06 |
— | ||
|
71073S
|
71073S
71074-90A09-06 Cover, Front Seat Back, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ60..STD..ARL SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(RECLINING),SEPIA BROWN,TRIM4# |
71074-90A09-06 |
US $285.38 |
||
|
71074S
|
71074S
71073-90A88-06
Cover, Front Seat Back, Rh(For Separate Type)
[08.1987 - 01.1990] FJ62,HJ60..STD..ARL SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..STD..GEN W(BENCH SEAT),SEPIA BROWN,TRIM4# |
71073-90A88-06 |
— | ||
|
71074S
|
71074S
71074-90A09-06 Cover, Front Seat Back, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ60..STD..(ARL,ME) SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..STD..GEN SEPIA BROWN,TRIM4# |
71074-90A09-06 |
US $285.38 |
||
|
71074S
|
71074S
71074-90A17-06
Cover, Front Seat Back, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(HEAD REST),SEPIA BROWN,TRIM4# |
71074-90A17-06 |
— | ||
|
71410S
|
71410S
71410-90A49-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 09.1988] BJ60,FJ62,HJ60..RHD..STD SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71410-90A49-03 |
— | ||
| replacement | |||||
|
71410S
|
71410S
71410-90A49-06 Cushion Assy, Front Seat, Rh(For Separate Type)[08.1987 - 09.1988] BJ60,FJ62,HJ60..RHD..STD SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71410-90A49-06 |
US $578.03 |
||
|
71410S
|
71410S
71410-90A49-06 Cushion Assy, Front Seat, Rh(For Separate Type)[09.1988 - 01.1990] BJ60,FJ62,HJ60..RHD..STD SEPIA BROWN,TRIM4#; FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71410-90A49-06 |
US $578.03 |
||
|
71420S
|
71420S
71420-90A48-06
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(BENCH SEAT),SEPIA BROWN,TRIM4# |
71420-90A48-06 |
— | ||
|
71420S
|
71420S
71420-90A55-06 Cushion Assy, Front Seat, Lh (For Separate Type)[08.1987 - 01.1990] BJ60,FJ62,HJ60..LHD..STD SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71420-90A55-06 |
US $578.03 |
||
|
71430S
|
71430S
71430-90A76-06
Back Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(HEAD REST),SEPIA BROWN,TRIM4# |
71430-90A76-06 |
— | ||
|
71430S
|
71430S
71430-90A77-06 Back Assy, Front Seat, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ60..STD..ARL SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT & HEAD REST),SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT & HEADREST),SEPIA BROWN,TRIM4# |
71430-90A77-06 |
US $758.58 |
||
|
71430S
|
71430S
71430-90A79-06
Back Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(RECLINING),SEPIA BROWN,TRIM4# |
71430-90A79-06 |
— | ||
|
71430S
|
71430S
71430-90A80-06
Back Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN SEPIA BROWN,TRIM4# |
71430-90A80-06 |
— | ||
|
71440S
|
71440S
71440-90A75-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(HEAD REST),SEPIA BROWN,TRIM4# |
71440-90A75-06 |
— | ||
|
71440S
|
71440S
71440-90A77-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] FJ62,HJ60..STD..ARL SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(BENCH SEAT & HEAD REST),SEPIA BROWN,TRIM4# |
71440-90A77-06 |
— | ||
|
71440S
|
71440S
71440-90A78-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(RECLINING),SEPIA BROWN,TRIM4# |
71440-90A78-06 |
— | ||
|
71440S
|
71440S
71440-90A79-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN SEPIA BROWN,TRIM4# |
71440-90A79-06 |
— | ||
|
71440S
|
71440S
71440-90A81-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(BENCH SEAT),SEPIA BROWN,TRIM4# |
71440-90A81-06 |
— | ||
|
71440S
|
71440S
71440-90A90-06 Back Assy, Front Seat, Lh(For Separate Type)[08.1987 - 01.1990] FJ62..STD..ME SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT & HEAD REST),SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT & HEADREST),SEPIA BROWN,TRIM4# |
71440-90A90-06 |
US $758.58 |
||
|
71812A
|
71812A
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 01.1990] BJ60,HJ60..SOB;FJ62..STD..GEN;FJ62..SOB..(GX,STD)..(ARL,ME) |
90468-18071 |
— | ||
| replacement | |||||
|
71812A
|
71812A
90468-16019 Clip (For Rear Seat Back)[08.1987 - 01.1990] BJ60,HJ60..SOB;FJ62..STD..GEN;FJ62..SOB..(GX,STD)..(ARL,ME) |
90468-16019 |
from US $0.84 |
||
|
71910A
|
71910A
71910-90A01-16 Headrest Assy, Front Seat[08.1987 - 03.1992] BJ60,FJ62,HJ60..(GX,STD)..(GEN,ME) SEPIA BROWN,TRIM4# |
71910-90A01-16 |
US $205.30 |
||
| replacement | |||||
|
71910A
|
71910A
71910-90A01-E0 Headrest Assy, Front Seat[08.1987 - 03.1992] BJ60,FJ62,HJ60..(GX,STD)..(GEN,ME) SEPIA BROWN,TRIM4# |
71910-90A01-E0 |
US $205.30 |
||
|
71931
|
71931
71956-30020-56 Support, Front Seat Headrest[08.1987 - 01.1990] FJ62..SOB..GX..ME W/O(LOCK),SEPIA BROWN,TRIM4#; HJ61..4FC;HJ61..5F..VX;HJ61..5F..SRF;BJ60,FJ62,HJ60..STD,VX;FJ62,HJ60..SRF..LUB..G X..(ARL,ME) W/O(LOCK),SEPIA BROWN,TRIM4# |
71956-30020-56 |
US $11.65 |
||
| replacement | |||||
|
71931
|
71931
71956-30020-10
Support, Rear Seat Headrest
[08.1987 - 01.1990] FJ62..SOB..GX..ME W/O(LOCK),SEPIA BROWN,TRIM4#; HJ61..4FC;HJ61..5F..VX;HJ61..5F..SRF;BJ60,FJ62,HJ60..STD,VX;FJ62,HJ60..SRF..LUB..G X..(ARL,ME) W/O(LOCK),SEPIA BROWN,TRIM4# |
71956-30020-10 |
— | ||
|
71931
|
71931
71990-30020-56
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62..SOB..GX..ME W(LOCK),SEPIA BROWN,TRIM4#; HJ61..4FC;HJ61..5F..VX;HJ61..5F..SRF;BJ60,FJ62,HJ60..STD,VX;FJ62,HJ60..SRF..LUB..G X..(ARL,ME) W(LOCK),SEPIA BROWN,TRIM4# |
71990-30020-56 |
— | ||
|
72110A
|
72110A
72110-90A04 Track Assy, Front Seat, Outer Rh[08.1987 - 03.1992] HJ60..GX,VX;FJ62..VX..GEN;HJ60..RHD..STD;FJ62..(STD,VX)..ME;BJ60,FJ62,HJ61..RHD;BJ 60,FJ62..LHD..MTM..GX; FJ62..LHD..4FC..GX W(SEPARATE SEAT); FJ62..4F..GX;FJ62..LHD..5F..HRF..GX;FJ62..5F..SRF..SOB..GX;FJ62..LHD..5F..SRF..LUB ..GEN W(S |
72110-90A04 |
US $165.98 |
||
|
72120
|
72120
72120-90A04
Track Assy, Front Seat, Outer Lh
[08.1987 - 01.1990] HJ60..RHD..GX..GEN W(SEPARATE SEAT); FJ62..RHD..4F..GX W(SEPARATE SEAT); FJ62..RHD..5F..GEN NEW ZEALAND SPEC OR W(SEPARATE SEAT); BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT OR BENCH SEAT) |
72120-90A04 |
— | ||
|
72120
|
72120
72120-90A07 Track Assy, Seat, Outer Lh (For Bench Seat)SEAT, OUTER LH (FOR BENCH SEAT) [08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN |
72120-90A07 |
US $125.22 |
||
|
72127B
|
72127B
72127-90A00 Support, Rh Seat, OuterRH SEAT, OUTER [08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..GEN |
72127-90A00 |
US $54.60 |
||
|
72128B
|
72128B
72128-90A00 Support, Lh Seat, OuterLH SEAT, OUTER [08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..GEN |
72128-90A00 |
US $54.60 |
||
|
72130A
|
72130A
72130-90A03
Track Assy, Front Seat, Inner Rh
[08.1987 - 01.1990] FJ62..LUB..GX..ME;FJ62,HJ60..LHD..VX;BJ60,FJ62,HJ6#..RHD; FJ62..RHD..5F..GEN NEW ZEALAND SPEC OR W(SEPARATE SEAT); HJ60..RHD..GX..GEN S(SEPARATE SEAT); FJ62..RHD..4F..GX S(SEPARATE SEAT) |
72130-90A03 |
— | ||
|
72140A
|
72140A
72140-90A00 Track Assy, Front Seat,inner Lh[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..GEN W(SEPARATE SEAT) |
72140-90A00 |
US $107.74 |
||
|
72140A
|
72140A
72140-90A01 Track Assy, Lh Seat, Inner (For Bench Seat)LH SEAT, INNER (FOR BENCH SEAT) [08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN; BJ60,FJ62,HJ6#..RHD..SRF; FJ62..RHD..5F..GEN NEW ZEALAND SPEC |
72140-90A01 |
US $109.20 |
||
|
72145A
|
72145A
72145-90A00 Bracket, Front Inner Seat Track, Lower Front Rh[08.1987 - 03.1992] FJ62..4F,4FC;BJ60,HJ6#..ARL,GEN;FJ62..5F..(ARL,GEN);FJ62..5F..(GX,VX)..ME |
72145-90A00 |
US $32.76 |
||
|
72510D
|
72510D
72510-90A00
Adjuster Assy, Reclining Seat Back, Rh
[08.1987 - 01.1990] FJ62..LUB..GX..ME;FJ62,HJ60..LHD..VX;BJ60,FJ62,HJ6#..RHD; FJ62..SOB..GX..ME;BJ60,FJ62,HJ60..LHD..STD..GEN W(SEPARATE SEAT) |
72510-90A00 |
— | ||
|
72520D
|
72520D
72520-90A00
Adjuster Assy, Reclining Seat Back, Lh
[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD..STD..GEN W(SEPARATE SEAT); FJ62,HJ60..RHD..GX..GEN W(SEPARATE SEAT) |
72520-90A00 |
— | ||
|
72520D
|
72520D
72520-90A01 Adjuster Assy, Reclining Seat Back, LhRECLINING SEAT BACK, LH [08.1987 - 01.1990] FJ62,HJ60..STD..ARL;FJ62,HJ6#..RHD..SRF..GX; BJ60,FJ62,HJ60..RHD..STD..GEN W(BENCH SEAT); FJ62..RHD..5F..GEN NEW ZEALAND SPEC |
72520-90A01 |
US $200.93 |
||
|
72525A
|
72525A
72525-14010-56 Handle, Reclining Adjuster Release[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72525-14010-56 |
US $12.38 |
||
| replacement | |||||
|
72525A
|
72525A
72525-14010-01
Handle, Reclining Adjuster Release
[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72525-14010-01 |
— | ||
|
72526
|
72526
72526-14010-56 Handle, Reclining Adjuster Release[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72526-14010-56 |
US $12.38 |
||
| replacement | |||||
|
72526
|
72526
72526-14010-01
Handle, Reclining Adjuster Release
[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72526-14010-01 |
— | ||
|
72551B
|
72551B
72551-90A00-16 Cover, Reclining Hinge Outer, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
72551-90A00-16 |
US $29.99 |
||
| replacement | |||||
|
72551B
|
72551B
72551-90A00-B0 Cover, Reclining Hinge Outer, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
72551-90A00-B0 |
US $29.99 |
||
|
72552B
|
72552B
72552-90A00-16
Cover, Reclining Hinge Outer, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
72552-90A00-16 |
— | ||
|
73183
|
73183
73183-20020 Guide, Front Seat Lap Belt, Inner[08.1987 - 03.1992] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN |
73183-20020 |
US $7.72 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
|
9011908097
|
9011908097
90119-08097 BOLT |
90119-08097 |
US $1.89 |
||
| replacement | |||||
|
9011908097
|
9011908097
90119-08080 BOLT |
90119-08080 |
from US $1.61 |
||
|
9011910037
|
9011910037
90119-10037 BOLT |
90119-10037 |
US $2.09 |
||
|
9011910406
|
9011910406
90119-10406
New Genuine Part
|
90119-10406 |
— | ||
|
9015480004
|
9015480004
90154-80004 New Genuine Part |
90154-80004 |
US $2.33 |
||
|
9038612005
|
9038612005
90386-12005 Bush (For Front Seat Hinge Pin) |
90386-12005 |
US $0.79 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.25 |
||
