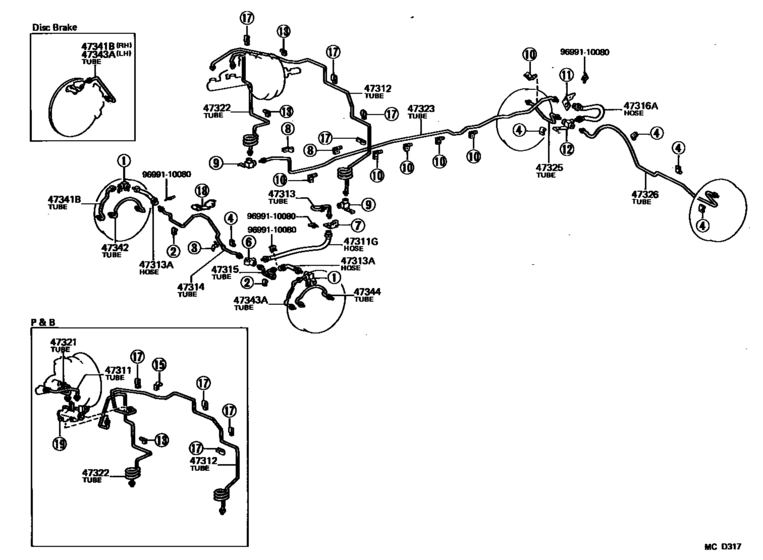

Brake Tube & Clamp ([08.1980 - 10.1982] (8008-8210)BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- Europe
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-30320
Tube, Front Brake, No.1
[08.1980 - 10.1982] BJ60,FJ60,HJ60..ARL,GEN |
47311-30320 |
— | ||
|
47311
|
47311
47311-30330
Tube, Front Brake, No.1
[10.1982 - 01.1983] FJ60..ARL,GEN; BJ60,HJ60..RHD..(ARL,GEN) |
47311-30330 |
— | ||
|
47311
|
47311
47311-30400
Tube, Front Brake, No.1
[11.1984 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
47311-30400 |
— | ||
|
47311G
|
47311G
96940-34305 Hose, Flexible(For Brake Tube)[08.1980 - 08.1987] BJ60 |
96940-34305 |
from US $23.35 |
||
|
47312
|
47312
47312-60250
Tube, Front Brake, No.2
[08.1980 - 11.1984] BJ60..RHD |
47312-60250 |
— | ||
|
47312
|
47312
47312-60251 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [11.1984 - 08.1987] BJ60..RHD |
47312-60251 |
US $34.51 |
||
|
47312
|
47312
47312-60260 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1980 - 10.1982] BJ60..RHD DISC BRAKE |
47312-60260 |
US $20.53 |
||
|
47312
|
47312
47312-60261
Tube, Front Brake, No.2
[10.1982 - 11.1984] BJ60..RHD DISC BRAKE |
47312-60261 |
— | ||
|
47312
|
47312
47312-60262 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [11.1984 - 08.1987] BJ60..RHD DISC BRAKE |
47312-60262 |
US $34.51 |
||
|
47313
|
47313
47313-60110
Tube, Front Brake, No.3
[08.1980 - 11.1984] BJ60 |
47313-60110 |
— | ||
|
47313
|
47313
47313-60111 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [11.1984 - 08.1987] BJ60 |
47313-60111 |
US $8.01 |
||
|
47313A
|
47313A
96940-39855 Hose, Flexible, No.1(For Front)[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
96940-39855 |
from US $16.49 |
||
|
47314
|
47314
47315-60270
Tube, Front Brake, No.4
[08.1980 - 11.1984] BJ60 |
47315-60270 |
— | ||
|
47314
|
47314
47315-60271 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [11.1984 - 10.1985] BJ60 |
47315-60271 |
US $14.71 |
||
|
47314
|
47314
47315-60272
Tube, Front Brake, No.4
[10.1985 - 01.1986] BJ60 |
47315-60272 |
— | ||
|
47314
|
47314
47315-60273 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [01.1986 - 08.1986] BJ60 |
47315-60273 |
US $14.71 |
||
|
47314
|
47314
47315-60274 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1986 - 08.1987] BJ60 |
47315-60274 |
US $15 |
||
|
47315
|
47315
47316-60150
Tube, Front Brake, No.5
[08.1980 - 11.1984] BJ60 |
47316-60150 |
— | ||
|
47315
|
47315
47316-60151
Tube, Front Brake, No.5
[11.1984 - 01.1986] BJ60 |
47316-60151 |
— | ||
|
47315
|
47315
47316-60152 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [01.1986 - 08.1986] BJ60 |
47316-60152 |
US $8.01 |
||
|
47315
|
47315
47316-60153 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1986 - 08.1987] BJ60 |
47316-60153 |
US $8.01 |
||
|
47316A
|
47316A
96940-33605
Hose, Flexible, No.1(For Front)
[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
96940-33605 |
— | ||
| replacement | |||||
|
47316A
|
47316A
90947-02492 Hose, Flexible, No.1(For Front)[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
90947-02492 |
US $28.22 |
||
|
47316A
|
47316A
96940-33805 Hose, Clutch, No.1[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
96940-33805 |
from US $22.18 |
||
|
47321
|
47321
47321-30050
Tube, Rear Brake, No.1
[10.1982 - 11.1984] BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
47321-30050 |
— | ||
|
47321
|
47321
47321-30120
Tube, Rear Brake, No.1
[11.1984 - 08.1987] FJ62..ARL,GEN;BJ60,HJ6#..ARL,GEN,ME |
47321-30120 |
— | ||
|
47321
|
47321
47321-60100
Tube, Rear Brake, No.1
[08.1980 - 10.1982] BJ60,FJ60,HJ60..ARL,GEN |
47321-60100 |
— | ||
|
47322
|
47322
47322-60150
Tube, Rear Brake, No.2
[08.1980 - 11.1984] BJ60..RHD |
47322-60150 |
— | ||
|
47322
|
47322
47322-60151 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [11.1984 - 08.1987] BJ60..RHD |
47322-60151 |
US $20.09 |
||
|
47322
|
47322
47322-60160
Tube, Rear Brake, No.2
[08.1980 - 10.1982] BJ60..RHD DISC BRAKE |
47322-60160 |
— | ||
|
47322
|
47322
47322-60161
Tube, Rear Brake, No.2
[10.1982 - 11.1984] BJ60..RHD DISC BRAKE |
47322-60161 |
— | ||
|
47322
|
47322
47322-60162 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [11.1984 - 08.1987] BJ60..RHD DISC BRAKE |
47322-60162 |
US $18.05 |
||
|
47323
|
47323
47323-60030
Tube, Rear Brake, No.3
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
47323-60030 |
— | ||
|
47323
|
47323
47323-60031
Tube, Rear Brake, No.3
[11.1984 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
47323-60031 |
— | ||
|
47325
|
47325
47325-60010
Tube, Rear Brake, No.5
[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
47325-60010 |
— | ||
| replacement | |||||
|
47325
|
47325
47325-60011
Tube, Rear Brake, No.5
[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
47325-60011 |
— | ||
|
47325
|
47325
47325-60011
Tube, Rear Brake, No.5
[11.1984 - 08.1986] BJ60,FJ62,HJ6# |
47325-60011 |
— | ||
|
47325
|
47325
47325-60100
Tube, Rear Brake, No.5
[08.1986 - 08.1987] HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
47325-60100 |
— | ||
|
47326
|
47326
47326-60010
Tube, Rear Brake, No.6
[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
47326-60010 |
— | ||
| replacement | |||||
|
47326
|
47326
47326-60011
Tube, Rear Brake, No.6
[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
47326-60011 |
— | ||
|
47326
|
47326
47326-60011
Tube, Rear Brake, No.6
[11.1984 - 08.1986] BJ60,FJ62,HJ6# |
47326-60011 |
— | ||
|
47326
|
47326
47326-60110
Tube, Rear Brake, No.6
[08.1986 - 08.1987] HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
47326-60110 |
— | ||
|
47341B
|
47341B
47341-60020
Tube, Wheel Cylinder, Front Rh No.1
[08.1980 - 11.1980] BJ60,FJ60,HJ60..GEN DRUM BRAKE |
47341-60020 |
— | ||
|
47341B
|
47341B
47341-60021
Tube, Wheel Cylinder, Front Rh No.1
[11.1980 - 08.1987] BJ60,FJ6#,HJ60..GEN DRUM BRAKE |
47341-60021 |
— | ||
|
47341B
|
47341B
47341-60030
Tube, Wheel Cylinder, Front Rh No.1
[08.1980 - 08.1984] BJ60,FJ60,HJ60 DISC BRAKE |
47341-60030 |
— | ||
| replacement | |||||
|
47341B
|
47341B
47341-60031 Tube, Wheel Cylinder, Front Rh No.1[08.1980 - 08.1984] BJ60,FJ60,HJ60 DISC BRAKE |
47341-60031 |
from US $4.66 |
||
|
47341B
|
47341B
47341-60031 Tube, Wheel Cylinder, Front Rh No.1[08.1984 - 08.1987] BJ60,FJ6#,HJ6# DISC BRAKE |
47341-60031 |
from US $4.66 |
||
|
47342
|
47342
47342-60010
Tube, Wheel Cylinder, Front Rh No.2
[08.1980 - 11.1980] BJ60,FJ60,HJ60..GEN |
47342-60010 |
— | ||
|
47342
|
47342
47342-60011 Tube, Wheel Cylinder, Front Rh No.2WHEEL CYLINDER, FRONT RH NO.2 [11.1980 - 08.1987] BJ60,FJ6#,HJ60..GEN |
47342-60011 |
US $9.61 |
||
|
47343A
|
47343A
47343-60010
Tube, Wheel Cylinder, Front Lh No.1
[08.1980 - 11.1980] BJ60,FJ60,HJ60..GEN DRUM BRAKE |
47343-60010 |
— | ||
|
47343A
|
47343A
47343-60011
Tube, Wheel Cylinder, Front Lh No.1
[11.1980 - 08.1987] BJ60,FJ6#,HJ60..GEN DRUM BRAKE |
47343-60011 |
— | ||
|
47343A
|
47343A
47343-60020
Tube, Wheel Cylinder, Front Lh No.1
[08.1980 - 08.1984] BJ60,FJ60,HJ60 DISC BRAKE |
47343-60020 |
— | ||
| replacement | |||||
|
47343A
|
47343A
47343-60021 Tube, Wheel Cylinder, Front Lh No.1[08.1980 - 08.1984] BJ60,FJ60,HJ60 DISC BRAKE |
47343-60021 |
from US $4.64 |
||
|
47343A
|
47343A
47343-60021 Tube, Wheel Cylinder, Front Lh No.1[08.1984 - 08.1987] BJ60,FJ6#,HJ6# DISC BRAKE |
47343-60021 |
from US $4.64 |
||
|
47344
|
47344
47342-60010
Tube, Wheel Cylinder, Front Rh No.2
[08.1980 - 11.1980] BJ60,FJ60,HJ60..GEN |
47342-60010 |
— | ||
|
47344
|
47344
47342-60011 Tube, Wheel Cylinder, Front Rh No.2WHEEL CYLINDER, FRONT RH NO.2 [11.1980 - 08.1987] BJ60,FJ6#,HJ60..GEN |
47342-60011 |
US $9.61 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
