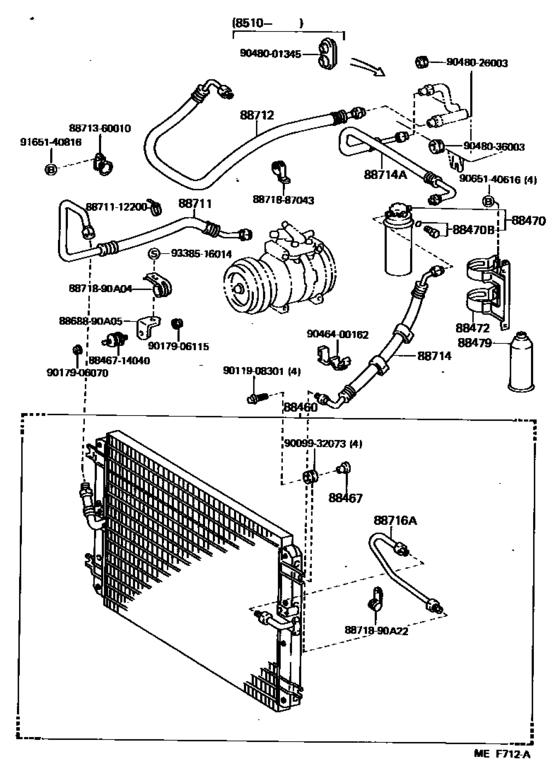

Heating & Air Conditioning - Cooler Piping ([11.1984 - ] (8411- )BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- Europe
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-90A00
Condenser Assy, Cooler
[08.1980 - 11.1984] BJ60,FJ60..ARL,GEN |
88460-90A00 |
— | ||
|
88460
|
88460
88460-90A02 Condenser Assy, CoolerCOOLER [11.1984 - 08.1987] BJ60,FJ62..RHD..GEN |
88460-90A02 |
US $500.86 |
||
|
88467
|
88467
88469-22010
Collar(For Radiator)
[11.1984 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME; FJ62,HJ60..HRF..ARL |
88469-22010 |
— | ||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
88470-14010 |
— | ||
| replacement | |||||
|
88470
|
88470
04884-33110 New Genuine Part[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
04884-33110 |
US $85.28 |
||
|
88470B
|
88470B
90099-04579
Bolt, Fuse
[08.1980 - 08.1987] BJ60,FJ6#,HJ60..ARL,GEN,ME |
90099-04579 |
— | ||
| replacement | |||||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[08.1980 - 08.1987] BJ60,FJ6#,HJ60..ARL,GEN,ME |
88475-12020 |
— | ||
|
88472
|
88472
88472-90A00
Bracket, Receiver Tank, No.1
[08.1980 - 08.1987] BJ60,FJ6#,HJ60..RHD..(ARL,GEN) |
88472-90A00 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1980 - 02.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1980 - 02.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[08.1980 - 02.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME 400G |
90986-02005 |
— | ||
|
88711
|
88711
88711-90A01
Hose, Cooler Refrigerant Discharge, No.1
[08.1980 - 10.1981] BJ60 |
88711-90A01 |
— | ||
| replacement | |||||
|
88711
|
88711
88711-90A03 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [08.1980 - 10.1981] BJ60 |
88711-90A03 |
US $171.81 |
||
|
88711
|
88711
88711-90A03 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [10.1981 - 11.1984] BJ60 |
88711-90A03 |
US $171.81 |
||
|
88711
|
88711
88711-90A05 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [11.1984 - 08.1987] BJ60 |
88711-90A05 |
US $193.65 |
||
|
88712
|
88712
88712-90A03
Hose, Cooler Refrigerant Suction, No.1
[08.1980 - 10.1981] BJ60..RHD |
88712-90A03 |
— | ||
|
88712
|
88712
88712-90A07 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [10.1981 - 11.1984] BJ60..RHD |
88712-90A07 |
US $346.53 |
||
|
88712
|
88712
88712-90A10 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [11.1984 - 08.1987] BJ60..RHD |
88712-90A10 |
US $311.58 |
||
|
88714
|
88714
88721-90A00 Hose, Cooler Refrigerant Liquid, No.1COOLER REFRIGERANT LIQUID, NO.1 [08.1980 - 11.1984] BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
88721-90A00 |
US $170.35 |
||
|
88714
|
88714
88721-90A12 Hose, Cooler Refrigerant Liquid, No.1[11.1984 - 08.1987] BJ60,HJ60..RHD..GEN |
88721-90A12 |
US $206.75 |
||
|
88714A
|
88714A
88721-90A01
Hose, Cooler Refrigerant Liquid, No.1
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..RHD..(ARL,GEN) |
88721-90A01 |
— | ||
|
88716A
|
88716A
88716-90A00 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [08.1980 - 11.1984] BJ60,FJ60..RHD |
88716-90A00 |
US $41.93 |
||
|
88716A
|
88716A
88716-90A06 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [11.1984 - 08.1987] BJ60,FJ62..RHD |
88716-90A06 |
US $32.47 |
||
|
8868890A05
|
8868890A05
88688-90A05
Bracket, Cooler Condenser, No.1
|
88688-90A05 |
— | ||
|
8871890A04
|
8871890A04
88718-90A04
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A04 |
— | ||
|
8871890A22
|
8871890A22
88718-90A22
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A22 |
— | ||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8871112200
|
8871112200
88711-12200 Hose, Cooler Refrigerant Discharge, No.1 |
88711-12200 |
US $177.63 |
||
|
8871360010
|
8871360010
88713-60010
Hose, Cooler Refrigerant Suction, No.2
|
88713-60010 |
— | ||
|
8871887043
|
8871887043
88718-87043
Pipe, Cooler Refrigerant Suction, No.2
|
88718-87043 |
— | ||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9011908301
|
9011908301
90119-08301 BOLT |
90119-08301 |
US $2.33 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9046400162
|
9046400162
90464-00162 New Genuine Part |
90464-00162 |
US $4.22 |
||
|
9048001345
|
9048001345
90480-01345
New Genuine Part
|
90480-01345 |
— | ||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $2.80 |
||
|
9048036003
|
9048036003
90480-36003 Grommet (For Cooler Unit) |
90480-36003 |
US $2.97 |
||
|
9065140616
|
9065140616
90651-40616
New Genuine Part
|
90651-40616 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
