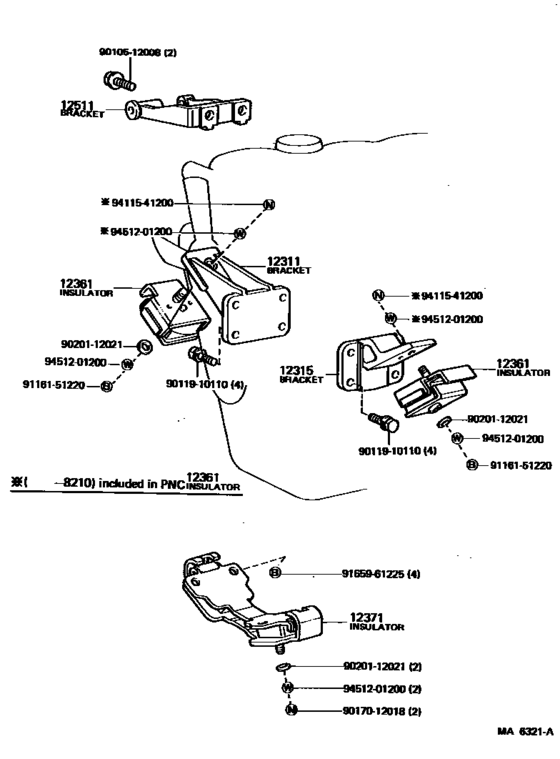

Mounting ([08.1980 - 11.1984] (8008-8411)3B) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- Europe
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
12311
|
12311
12311-56020
Bracket, Engine Mounting, Front No.1 Rh
[08.1980 - 11.1984] 3B..BJ60 |
12311-56020 |
— | ||
12311
|
12311
12311-58031 Bracket, Engine Mounting, Front No.1 Rh[11.1984 - 12.1986] 3B..BJ60 |
12311-58031 |
US $68.43 |
||
12311
|
12311
12311-58032 Bracket, Engine Mounting, Front No.1 Rh[12.1986 - 08.1987] 3B..BJ60 |
12311-58032 |
US $117.94 |
||
12315
|
12315
12315-56010 Bracket, Engine Mounting, Front No.1 LhENGINE MOUNTING, FRONT NO.1 LH [08.1980 - 05.1982] 3B..BJ60 |
12315-56010 |
US $87.36 |
||
replacement | |||||
12315
|
12315
12315-56011
Bracket, Engine Mounting, Front No.1 Lh
[08.1980 - 05.1982] 3B..BJ60 |
12315-56011 |
— | ||
12315
|
12315
12315-56011
Bracket, Engine Mounting, Front No.1 Lh
[05.1982 - 11.1984] 3B..BJ60 |
12315-56011 |
— | ||
12315
|
12315
12315-58020 Bracket, Engine Mounting, Front No.1 Lh[11.1984 - 08.1987] 3B..BJ60 |
12315-58020 |
US $43.68 |
||
12361
|
12361
12361-56031 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [10.1982 - 11.1984] 3B..BJ60 |
12361-56031 |
from US $81.84 |
||
12361
|
12361
12361-58030
Insulator, Engine Mounting, Front
[11.1984 - 08.1987] 3B..BJ60 |
12361-58030 |
— | ||
replacement | |||||
12361
|
12361
12361-58031
Insulator, Engine Mounting, Front
[11.1984 - 08.1987] 3B..BJ60 |
12361-58031 |
— | ||
12361
|
12361
12361-59035
Insulator, Engine Mounting, Front
[08.1980 - 10.1982] 3B..BJ60 |
12361-59035 |
— | ||
replacements | |||||
12361
|
12361
94130-61200 Nut[08.1980 - 10.1982] 3B..BJ60 |
94130-61200 |
from US $0.91 |
||
12361
|
12361
12361-56031 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [08.1980 - 10.1982] 3B..BJ60 |
12361-56031 |
from US $81.84 |
||
12361
|
12361
94512-01200 Washer[08.1980 - 10.1982] 3B..BJ60 |
94512-01200 |
from US $0.67 |
||
12371
|
12371
12371-58010 Insulator, Engine Mounting, Rear No.1ENGINE MOUNTING, REAR NO.1 [08.1980 - 11.1984] 3B..BJ60 |
12371-58010 |
US $267.92 |
||
12371
|
12371
12371-58020
Insulator, Engine Mounting, Rear No.1
[11.1984 - 08.1987] 3B..BJ60 |
12371-58020 |
— | ||
replacement | |||||
12371
|
12371
12371-58021 Insulator, Engine Mounting, Rear No.1[11.1984 - 08.1987] 3B..BJ60 |
12371-58021 |
from US $118.75 |
||
12511
|
12511
12511-56030 Bracket, Alternator, No.1ALTERNATOR, NO.1 [08.1980 - 02.1982] 3B..BJ60 |
12511-56030 |
US $107.74 |
||
replacement | |||||
12511
|
12511
12511-56031
Bracket, Alternator, No.1
[08.1980 - 02.1982] 3B..BJ60 |
12511-56031 |
— | ||
12511
|
12511
12511-56031
Bracket, Alternator, No.1
[02.1982 - 09.1984] 3B..BJ60 |
12511-56031 |
— | ||
12511
|
12511
12511-56040
Bracket, Alternator, No.1
[09.1984 - 08.1987] 3B..BJ60 |
12511-56040 |
— | ||
9010512008
|
9010512008
90105-12008 New Genuine Part |
90105-12008 |
US $5.39 |
||
9011910110
|
9011910110
90119-10110
Bolt (For Control Shaft Cover)
|
90119-10110 |
— | ||
replacement | |||||
9011910110
|
9011910110
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.03 |
||
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $0.63 |
||
9020112021
|
9020112021
90201-12021
New Genuine Part
|
90201-12021 |
— | ||
9116151220
|
9116151220
91161-51220
New Genuine Part
|
91161-51220 |
— | ||
replacement | |||||
9116151220
|
9116151220
91162-61220 New Genuine Part |
91162-61220 |
US $2.06 |
||
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $2.61 |
||
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
replacement | |||||
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.91 |
||
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.67 |
