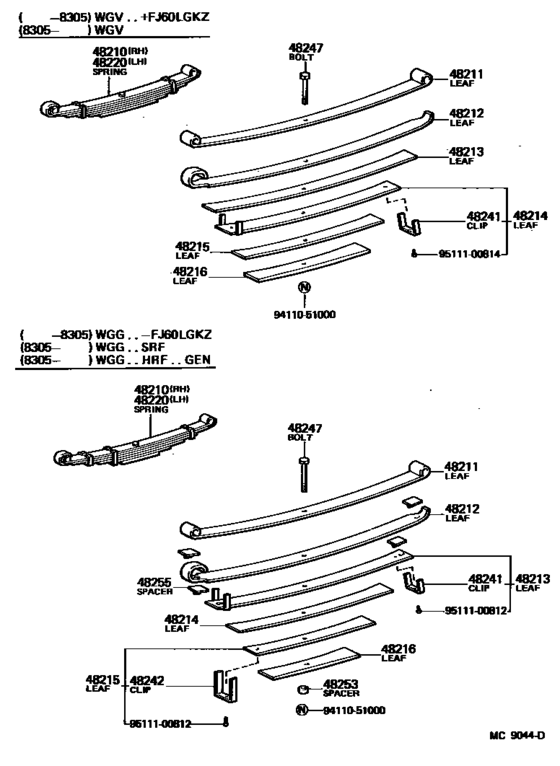

Rear Spring & Shock Absorber ([05.1980 - 05.1983] (8005-8305) ; (8305-8311)SRF..LUB ; (8305-8311)H RF..LUB..GEN ; (8305-8608)WGV ; (83 11-8411)SRF..LUB. .EUR) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- Europe
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-60240
Spring Assy, Rear Rh
[08.1980 - 08.1986] BJ60,FJ6#,HJ60..RHD..SOB |
48210-60240 |
— | ||
|
48210
|
48210
48210-60610 Spring Assy, Rear RhREAR RH [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB |
48210-60610 |
US $709.07 |
||
|
48211
|
48211
48211-60240 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48211-60240 |
US $186.37 |
||
| replacement | |||||
|
48211
|
48211
48211-60280 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48211-60280 |
US $205.30 |
||
|
48211
|
48211
48211-60270 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48211-60270 |
US $202.38 |
||
| replacement | |||||
|
48211
|
48211
48211-60280 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48211-60280 |
US $205.30 |
||
|
48211
|
48211
48211-60610 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48211-60610 |
US $203.84 |
||
| replacement | |||||
|
48211
|
48211
48211-60280 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48211-60280 |
US $205.30 |
||
|
48211
|
48211
48211-60620 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48211-60620 |
US $203.84 |
||
| replacement | |||||
|
48211
|
48211
48211-60280 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48211-60280 |
US $205.30 |
||
|
48212
|
48212
48212-60240 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48212-60240 |
US $158.70 |
||
| replacement | |||||
|
48212
|
48212
48212-60270 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48212-60270 |
US $179.09 |
||
|
48212
|
48212
48212-60270 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48212-60270 |
US $179.09 |
||
|
48212
|
48212
48212-60610 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48212-60610 |
US $145.60 |
||
| replacement | |||||
|
48212
|
48212
48212-60710 Leaf, Rear Spring, No.2[08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48212-60710 |
US $145.60 |
||
|
48212
|
48212
48212-60620 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48212-60620 |
US $145.60 |
||
| replacement | |||||
|
48212
|
48212
48212-60710 Leaf, Rear Spring, No.2[08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48212-60710 |
US $145.60 |
||
|
48213
|
48213
48202-60610 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48202-60610 |
US $136.86 |
||
| replacement | |||||
|
48213
|
48213
48202-60380 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48202-60380 |
US $136.86 |
||
|
48213
|
48213
48202-60620 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48202-60620 |
US $136.86 |
||
|
48213
|
48213
48213-60240 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48213-60240 |
US $104.83 |
||
| replacement | |||||
|
48213
|
48213
48213-60270 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48213-60270 |
US $116.48 |
||
|
48213
|
48213
48213-60270 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48213-60270 |
US $116.48 |
||
|
48214
|
48214
48202-60240 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48202-60240 |
US $107.74 |
||
|
48214
|
48214
48202-60270 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48202-60270 |
US $119.39 |
||
|
48214
|
48214
48214-60610 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48214-60610 |
US $75.71 |
||
|
48214
|
48214
48214-60620 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48214-60620 |
US $75.71 |
||
| replacement | |||||
|
48214
|
48214
48214-60610 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48214-60610 |
US $75.71 |
||
|
48215
|
48215
48203-60610 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48203-60610 |
US $80.08 |
||
| replacement | |||||
|
48215
|
48215
48203-60620 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48203-60620 |
US $81.54 |
||
|
48215
|
48215
48203-60620 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48203-60620 |
US $81.54 |
||
|
48215
|
48215
48215-60240 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48215-60240 |
US $64.36 |
||
| replacement | |||||
|
48215
|
48215
48215-60270 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48215-60270 |
US $64.36 |
||
|
48215
|
48215
48215-60270 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48215-60270 |
US $64.36 |
||
|
48216
|
48216
48216-60240 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48216-60240 |
US $106.29 |
||
| replacement | |||||
|
48216
|
48216
48216-60270 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
48216-60270 |
US $116.48 |
||
|
48216
|
48216
48216-60270 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
48216-60270 |
US $116.48 |
||
|
48216
|
48216
48216-60610 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB DRIVERS SEAT SIDE |
48216-60610 |
US $42.66 |
||
|
48216
|
48216
48216-60620 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48216-60620 |
US $42.37 |
||
| replacement | |||||
|
48216
|
48216
48216-60610 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB PASSENGER SEAT SIDE |
48216-60610 |
US $42.66 |
||
|
48220
|
48220
48210-60270
Spring Assy, Rear Lh
[08.1980 - 08.1986] BJ60,FJ6#,HJ60..RHD..SOB |
48210-60270 |
— | ||
|
48220
|
48220
48210-60620 Spring Assy, Rear LhREAR RH [08.1986 - 07.1987] BJ60,FJ62,HJ60..RHD..SOB |
48210-60620 |
US $709.07 |
||
|
48241
|
48241
48142-60081 Clip, Front Spring, No.2FRONT SPRING, NO.2 [08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
48142-60081 |
US $4.95 |
||
|
48247
|
48247
48247-29210 Bolt, Rear Spring, Center[08.1980 - 05.1983] FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
48247-29210 |
US $12.23 |
||
|
48247
|
48247
48247-35170 Bolt, Rear Spring, Center[08.1986 - 07.1987] BJ60,FJ62,HJ6#..WGV |
48247-35170 |
US $3.93 |
||
|
48255
|
48255
48252-26070 Silencer, Front Spring[08.1986 - 08.1987] BJ60,FJ62,HJ6#..WGV |
48252-26070 |
from US $2.07 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9511100812
|
9511100812
95111-00812
New Genuine Part
|
95111-00812 |
— | ||
|
9511100814
|
9511100814
95111-00814
New Genuine Part
|
95111-00814 |
— | ||
