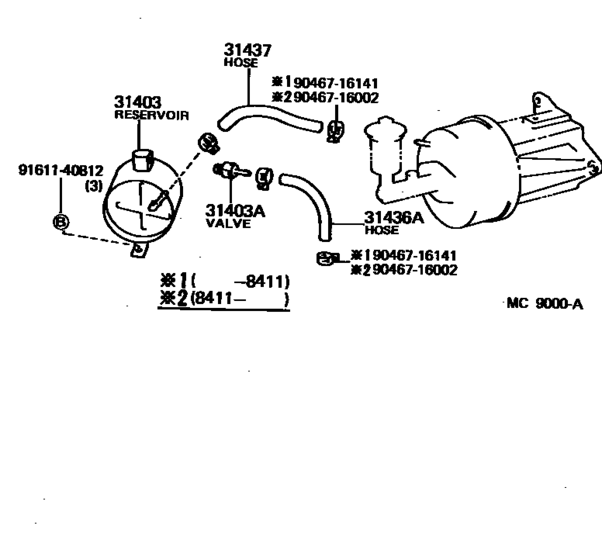

Clutch Booster ([10.1982 - ] (8210- )BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31403
|
31403
31403-60010 Reservoir Sub-Assy, Clutch Vacuum[10.1982 - 08.1987] BJ60,FJ6#..RHD..MTM |
31403-60010 |
US $100.46 |
||
|
31403A
|
31403A
44730-60040 Booster Kit, Brake[10.1982 - 11.1984] FJ60..LHD..GEN; BJ60,FJ60,HJ60..RHD |
44730-60040 |
US $77.93 |
||
|
31436A
|
31436A
90445-17002 Hose, No.1(For Clutch Booster Vacuum)[10.1982 - 04.1983] BJ60,HJ60..RHD |
90445-17002 |
US $12.67 |
||
| replacement | |||||
|
31436A
|
31436A
95446-09300 Hose, Solenoid To Vacuum Tube[10.1982 - 04.1983] BJ60,HJ60..RHD |
95446-09300 |
US $11.65 |
||
|
31436A
|
31436A
95441-09200
Hose, No.1(For Clutch Booster Vacuum)
[04.1983 - 08.1987] BJ60,HJ6#..RHD..MTM |
95441-09200 |
— | ||
| replacement | |||||
|
31436A
|
31436A
95446-09300 Hose, Solenoid To Vacuum Tube[04.1983 - 08.1987] BJ60,HJ6#..RHD..MTM |
95446-09300 |
US $11.65 |
||
|
31437
|
31437
90445-17016
Hose, No.2(For Clutch Booster Vacuum)
[10.1982 - 04.1983] BJ60..RHD |
90445-17016 |
— | ||
| replacement | |||||
|
31437
|
31437
95446-09300 Hose, Solenoid To Vacuum Tube[10.1982 - 04.1983] BJ60..RHD |
95446-09300 |
US $11.65 |
||
|
31437
|
31437
95441-09300
Hose, No.2(For Clutch Booster Vacuum)
[04.1983 - 08.1987] BJ60..RHD |
95441-09300 |
— | ||
| replacement | |||||
|
31437
|
31437
95446-09300 Hose, Solenoid To Vacuum Tube[04.1983 - 08.1987] BJ60..RHD |
95446-09300 |
US $11.65 |
||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
||
|
9046716141
|
9046716141
90467-16141
Clip(For Clutch Reservoir Tube)
|
90467-16141 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
