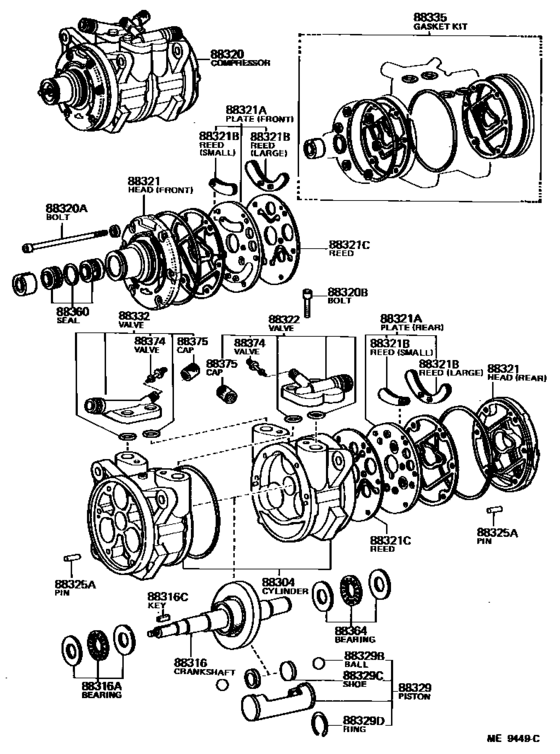

Heating & Air Conditioning - Compressor ([08.1980 - 11.1984] (8008-8411)) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-14021
Cylinder Sub-Assy, Cooler Compressor
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88304-14021 |
— | ||
|
88304
|
88304
88304-60010
Cylinder Sub-Assy, Cooler Compressor
[08.1980 - 11.1984] BJ60 |
88304-60010 |
— | ||
|
88316
|
88316
88316-14011
Crankshaft, Cooler Compressor
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88316-14011 |
— | ||
|
88316
|
88316
88316-20070
Crankshaft, Cooler Compressor
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88316-20070 |
— | ||
|
88316A
|
88316A
88366-14010
Bearing, Compressor Crankshaft, Front
[11.1984 - 03.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
88366-14010 |
— | ||
|
88316A
|
88316A
88366-20050
Bearing, Compressor Crankshaft, Front
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88366-20050 |
— | ||
|
88316C
|
88316C
90099-13011
Key, Compressor Crankshaft
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
90099-13011 |
— | ||
|
88316C
|
88316C
90099-13012
Key, Compressor Crankshaft
[11.1984 - 03.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
90099-13012 |
— | ||
|
88316C
|
88316C
90099-13024
Key, Compressor Crankshaft
[03.1987 - 08.1987] HJ61..LUB..EUR;HJ60..HRF..LUB..EUR; HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME |
90099-13024 |
— | ||
|
88320
|
88320
88320-60110
Compressor Assy, Cooler
[08.1980 - 11.1984] BJ60 |
88320-60110 |
— | ||
|
88320
|
88320
88320-60170
Compressor Assy, Cooler
[11.1984 - 08.1987] BJ60 |
88320-60170 |
— | ||
|
88320A
|
88320A
90099-04926
Bolt, Through
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
90099-04926 |
— | ||
|
88320A
|
88320A
90099-04958
Bolt, Through
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
90099-04958 |
— | ||
|
88320B
|
88320B
90099-04905
Bolt, Service Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
90099-04905 |
— | ||
| replacement | |||||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
90099-04924 |
— | ||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[11.1984 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
90099-04924 |
— | ||
|
88321
|
88321
88321-14011
Head, Cooler Compressor Cylinder
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR FR; BJ60,FJ62,HJ60..ARL,GEN,ME FR |
88321-14011 |
— | ||
|
88321
|
88321
88321-20061
Head, Cooler Compressor Cylinder
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN FR |
88321-20061 |
— | ||
|
88321
|
88321
88322-14011
Head, Cooler Compressor Cylinder
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR RR; BJ60,FJ62,HJ60..ARL,GEN,ME RR |
88322-14011 |
— | ||
|
88321
|
88321
88322-20040
Head, Cooler Compressor Cylinder
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN RR |
88322-20040 |
— | ||
|
88321A
|
88321A
88305-20070
Plate Sub-Assy, Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN FR |
88305-20070 |
— | ||
|
88321A
|
88321A
88306-20040
Plate Sub-Assy, Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN RR |
88306-20040 |
— | ||
|
88321A
|
88321A
88341-14010
Plate Sub-Assy, Valve
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR FR; BJ60,FJ62,HJ60..ARL,GEN,ME FR |
88341-14010 |
— | ||
|
88321A
|
88321A
88342-14010
Plate Sub-Assy, Valve
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR RR; BJ60,FJ62,HJ60..ARL,GEN,ME RR |
88342-14010 |
— | ||
|
88321B
|
88321B
88307-20050
Reed Sub-Assy, Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN SMALL |
88307-20050 |
— | ||
|
88321B
|
88321B
88307-20060
Reed Sub-Assy, Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN LARGE |
88307-20060 |
— | ||
|
88321B
|
88321B
88344-14011
Reed Sub-Assy, Valve
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88344-14011 |
— | ||
|
88321C
|
88321C
88343-14011
Reed, Suction Valve
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88343-14011 |
— | ||
|
88321C
|
88321C
88343-20040
Reed, Suction Valve
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88343-20040 |
— | ||
|
88322
|
88322
88371-14170
Valve, Cooler Compressor Suction Service
[08.1980 - 11.1984] BJ60;HJ60..LHD..GEN |
88371-14170 |
— | ||
|
88322
|
88322
88371-60110
Valve, Cooler Compressor Suction Service
[11.1984 - 08.1987] BJ60 |
88371-60110 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
90099-08058 |
— | ||
|
88329
|
88329
88301-14020
Piston Sub-Assy, Cooler Compressor
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88301-14020 |
— | ||
|
88329
|
88329
88301-20050
Piston Sub-Assy, Cooler Compressor
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88301-20050 |
— | ||
|
88329B
|
88329B
88312-30250
Ball, Piston
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88312-30250 |
— | ||
|
88329C
|
88329C
88313-14010
Shoe, Piston
[11.1984 - 03.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
88313-14010 |
— | ||
|
88329C
|
88329C
88313-20070
Shoe, Piston
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88313-20070 |
— | ||
|
88329D
|
88329D
88317-20030
Ring, Compressor Piston Snap
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88317-20030 |
— | ||
|
88332
|
88332
88372-26060
Valve, Cooler Compressor Discharge Service
[11.1984 - 03.1987] BJ60 |
88372-26060 |
— | ||
|
88332
|
88332
88372-26061
Valve, Cooler Compressor Discharge Service
[03.1987 - 08.1987] BJ60 |
88372-26061 |
— | ||
|
88332
|
88332
88372-30320
Valve, Cooler Compressor Discharge Service
[08.1980 - 11.1984] BJ60,FJ60..ARL,GEN |
88372-30320 |
— | ||
|
88335
|
88335
04881-10010
Gasket Kit, Cooler Compressor Overhaul
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
04881-10010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-28020
Gasket Kit, Overhaul
[11.1984 - 10.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88335-28020 |
— | ||
|
88335
|
88335
04881-14030
Gasket Kit, Overhaul
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
04881-14030 |
— | ||
|
88360
|
88360
88360-14020
Seal Assy, Cooler Compressor Shaft
[11.1984 - 01.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88360-14020 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-26020 Seal Assy, Cooler Compressor Shaft[11.1984 - 01.1985] HJ60..LHD..SRF..LUB..EUR; BJ60,FJ62,HJ60..ARL,GEN,ME |
88360-26020 |
US $125.25 |
||
|
88360
|
88360
88360-30270
Seal Assy, Cooler Compressor Shaft
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88360-30270 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-30280
Seal Assy, Cooler Compressor Shaft
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88360-30280 |
— | ||
|
88360
|
88360
88360-40010
Seal Assy, Cooler Compressor Shaft
[01.1985 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
88360-40010 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-26020 Seal Assy, Cooler Compressor Shaft[01.1985 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
88360-26020 |
US $125.25 |
||
|
88364
|
88364
88366-14010
Bearing, Compressor Crankshaft, Front
[11.1984 - 03.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
88366-14010 |
— | ||
|
88364
|
88364
88366-20050
Bearing, Compressor Crankshaft, Front
[08.1980 - 11.1984] BJ60,FJ60,HJ60..ARL,GEN |
88366-20050 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
88374-20020 |
US $5.73 |
||
|
88375
|
88375
88375-20010
Cap, Service Valve (For Cooler Pipe)
[03.1987 - 08.1987] HJ61..LUB..EUR;HJ60..HRF..LUB..EUR DISCHARGE; HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
88375-20010 |
— | ||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[03.1987 - 08.1987] HJ61..LUB..EUR;HJ60..HRF..LUB..EUR SUCTION; HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
88375-30270 |
— | ||
