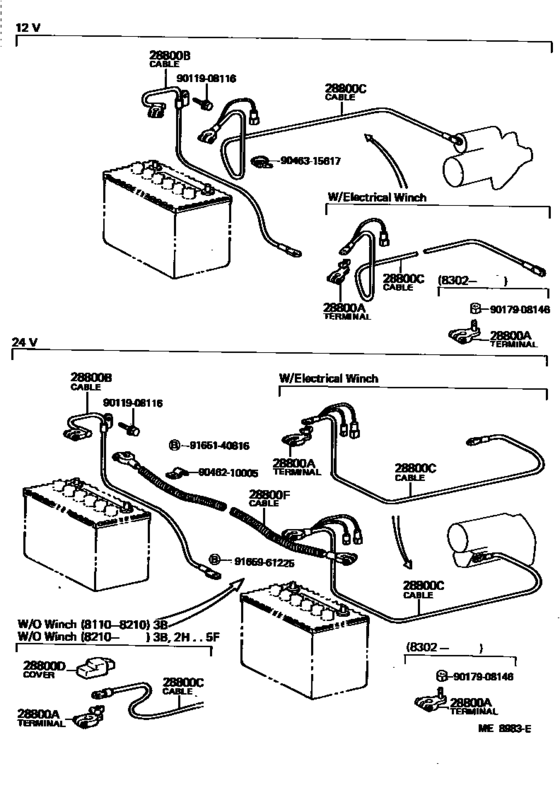

Battery & Battery Cable ([08.1980 - ] (8008- )CBU) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800A
|
28800A
99142-87175
Terminal, Battery Positive
[08.1980 - 02.1983] 3B,2F,2H..BJ6#,FJ6#,HJ60 |
99142-87175 |
— | ||
| replacement | |||||
|
28800A
|
28800A
82675-30021 Terminal, Junction[08.1980 - 02.1983] 3B,2F,2H..BJ6#,FJ6#,HJ60 |
82675-30021 |
US $14.15 |
||
|
28800B
|
28800B
90982-02207
Cable, Battery To Ground
[08.1980 - 08.1987] 12HT,3B,2F,3F,2H..BJ6#,FJ6#,HJ6#..CBU |
90982-02207 |
— | ||
|
28800C
|
28800C
90982-01352 Cable, Battery To Starter(For Battery To Main Switch)BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) [08.1980 - 10.1981] 3B..BJ60 L=1600 |
90982-01352 |
US $123.76 |
||
|
28800C
|
28800C
90982-01353 Cable, Battery To Starter(For Battery To Main Switch)BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) [08.1980 - 10.1982] 3B..BJ60 L=1600,W/ELECTRICAL WINCH |
90982-01353 |
US $115.02 |
||
|
28800C
|
28800C
90982-01414
Cable, Battery To Starter(For Battery To Main Switch)
[10.1981 - 08.1987] 12HT,3B,2H..BJ6#,HJ6# L=1600 |
90982-01414 |
— | ||
|
28800D
|
28800D
82821-12150 Cover, Connector(For Battery Terminal)[10.1981 - 08.1987] 12HT,3B,2H..BJ6#,HJ6# |
82821-12150 |
from US $6.35 |
||
|
28800F
|
28800F
90982-03019
Cable, Battery To Battery
[08.1980 - 08.1987] 12HT,3B,2H..BJ6#,HJ6# |
90982-03019 |
— | ||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046210005
|
9046210005
90462-10005 New Genuine Part |
90462-10005 |
US $8.59 |
||
|
9046315617
|
9046315617
90463-15617 New Genuine Part |
90463-15617 |
US $2.18 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
