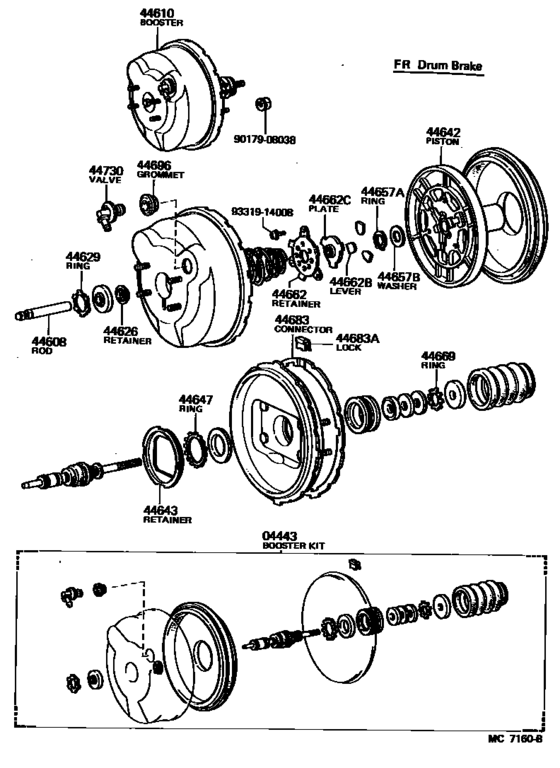

Brake Booster & Vacuum Tube ([08.1980 - 10.1981] (8008-8110)) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04443
|
04443
04443-60090 Booster Kit, BrakeBRAKE [08.1980 - 10.1981] BJ60 FR DRUM BRAKE |
04443-60090 |
US $173.26 |
||
|
04443
|
04443
04443-60100 Booster Kit, BrakeBRAKE [08.1980 - 11.1984] BJ6#,HJ60 FR DISC BRAKE |
04443-60100 |
US $205.30 |
||
|
44608
|
44608
44606-35100 Push Rod Sub-Assy, Booster[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44606-35100 |
US $12.23 |
||
|
44610
|
44610
44610-60110 Booster Assy, BrakeBRAKE [08.1980 - 10.1981] BJ60 FR DRUM BRAKE |
44610-60110 |
US $543.09 |
||
|
44610
|
44610
44610-60120 Booster Assy, BrakeBRAKE [08.1980 - 11.1984] BJ6#,HJ60 FR DISC BRAKE |
44610-60120 |
US $618.80 |
||
|
44626
|
44626
44626-60010 Retainer, Booster Seal[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44626-60010 |
US $2.27 |
||
|
44629
|
44629
44628-60010
Ring, Circular Internal
[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44628-60010 |
— | ||
|
44642
|
44642
44642-14170 Piston, Brake Booster[08.1980 - 10.1981] BJ60,FJ60..CBU FR DRUM BRAKE |
44642-14170 |
US $104.83 |
||
|
44642
|
44642
44642-30030 Piston, Brake BoosterBRAKE BOOSTER [08.1980 - 11.1984] BJ6#,FJ6#,HJ60 FR DISC BRAKE |
44642-30030 |
US $136.86 |
||
|
44643
|
44643
44643-60010 Retainer, Diaphragm[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44643-60010 |
US $8.30 |
||
|
44647
|
44647
44629-30090 Ring, Circular Internal[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44629-30090 |
US $3.93 |
||
|
44657A
|
44657A
96150-01600 Ring, Snap (For Shift & Select Lever Shaft)[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
96150-01600 |
US $3.67 |
||
|
44657B
|
44657B
44645-20100
Washer, Plate(For Booster Air Valve Stopper)
[08.1980 - 10.1981] BJ60,FJ60 FR DRUM BRAKE |
44645-20100 |
— | ||
|
44662
|
44662
44662-20460 Retainer, Reaction, No.1REACTION, NO.1 [08.1980 - 11.1984] BJ6#,FJ6#,HJ60 FR DISC BRAKE |
44662-20460 |
US $8.59 |
||
|
44662
|
44662
44662-35100 Retainer, Reaction, No.1[08.1980 - 10.1981] BJ60,FJ60..CBU FR DRUM BRAKE |
44662-35100 |
US $8.30 |
||
|
44662B
|
44662B
44661-35100
Lever, Reaction
[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44661-35100 |
— | ||
|
44662C
|
44662C
44607-25100
Plate, Reaction, No.1
[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 FR DISC BRAKE |
44607-25100 |
— | ||
|
44662C
|
44662C
44607-27050
Plate, Reaction, No.1
[08.1980 - 10.1981] BJ60,FJ60..CBU FR DRUM BRAKE |
44607-27050 |
— | ||
|
44669
|
44669
44669-60010 Ring, Circular Internal(For Air Cleaner Element Stopper)[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
44669-60010 |
US $3.64 |
||
|
44683
|
44683
44682-20150
Connector, Booster Body
[08.1980 - 10.1981] BJ60,FJ60 FR DRUM BRAKE |
44682-20150 |
— | ||
|
44683A
|
44683A
44683-20100 Lock, Connector[08.1980 - 10.1981] BJ60,FJ60 FR DRUM BRAKE |
44683-20100 |
US $5.97 |
||
|
44730
|
44730
44730-60040 Booster Kit, Brake[08.1980 - 08.1987] BJ6#,HJ6# |
44730-60040 |
US $77.93 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
