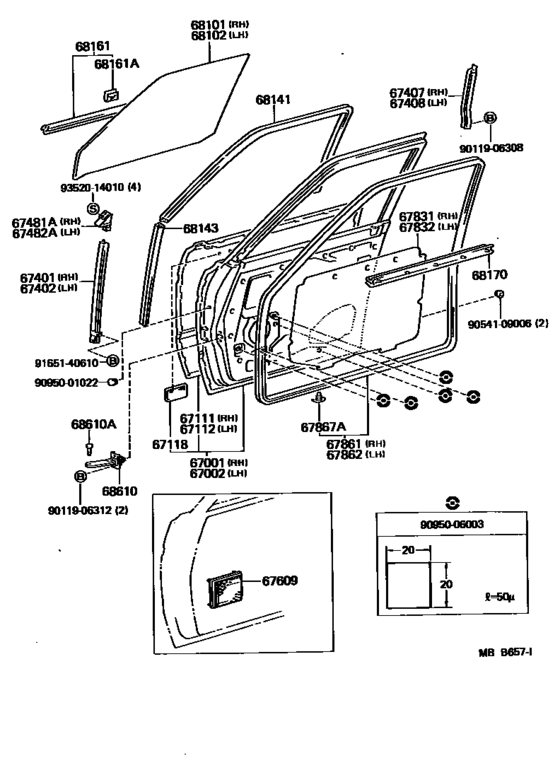

Front Door Panel & Glass ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-90A06
Panel Sub-Assy, Front Door, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
67001-90A06 |
— | ||
| replacements | |||||
|
67001
|
67001
67001-90A47 Panel Sub-assy, Front Door, Rh[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
67001-90A47 |
US $1,007.55 |
||
|
67001
|
67001
68160-90A02
Weatherstrip Assy, Front Door Glass, Outer Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
68160-90A02 |
— | ||
|
67001
|
67001
75710-90A02
Moulding Assy, Front Door Belt, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
75710-90A02 |
— | ||
|
67002
|
67002
67002-90A06 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
67002-90A06 |
US $1,000.27 |
||
| replacements | |||||
|
67002
|
67002
67002-90A61 Panel Sub-assy, Front Door, Lh[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
67002-90A61 |
US $1,007.55 |
||
|
67002
|
67002
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
67832-90A04 |
— | ||
|
67002
|
67002
68210-90A02 Weatherstrip, Front Door Glass, Outer[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
68210-90A02 |
US $32.76 |
||
|
67002
|
67002
75720-90A02
Moulding Assy, Front Door Belt, Lh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 |
75720-90A02 |
— | ||
|
67111
|
67111
67111-90A05 Panel, Front Door, Outer RhFRONT DOOR, OUTER RH [08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
67111-90A05 |
US $406.22 |
||
| replacements | |||||
|
67111
|
67111
67111-90A15 Panel, Front Door, Outer Rh[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
67111-90A15 |
US $404.77 |
||
|
67111
|
67111
68160-90A02
Weatherstrip Assy, Front Door Glass, Outer Rh
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
68160-90A02 |
— | ||
|
67111
|
67111
68160-90A03
Weatherstrip, Front Door Glass, Outer
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
68160-90A03 |
— | ||
|
67111
|
67111
75710-90A02
Moulding Assy, Front Door Belt, Rh
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
75710-90A02 |
— | ||
|
67111
|
67111
75710-90A03
Moulding, Front Door Belt, Rh
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
75710-90A03 |
— | ||
|
67112
|
67112
67112-90A05 Panel, Front Door, Outer LhFRONT DOOR, OUTER LH [08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
67112-90A05 |
US $406.22 |
||
| replacements | |||||
|
67112
|
67112
67112-90A15 Panel, Front Door, Outer Lh[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
67112-90A15 |
US $404.77 |
||
|
67112
|
67112
68210-90A02 Weatherstrip, Front Door Glass, Outer[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
68210-90A02 |
US $32.76 |
||
|
67112
|
67112
68210-90A03
Weatherstrip, Front Door Glass, Outer
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
68210-90A03 |
— | ||
|
67112
|
67112
75720-90A02
Moulding Assy, Front Door Belt, Lh
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
75720-90A02 |
— | ||
|
67112
|
67112
75720-90A03
Moulding, Front Door Belt, Lh
[08.1980 - 01.1986] BJ6#,FJ6#,HJ6# |
75720-90A03 |
— | ||
|
67401
|
67401
67401-90A00
Bar Sub-Assy, Front Door Window, Front Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
67401-90A00 |
— | ||
|
67402
|
67402
67402-90A00
Bar Sub-Assy, Front Door Window, Front Lh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
67402-90A00 |
— | ||
|
67831
|
67831
67831-90A00
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/O SPEAKER |
67831-90A00 |
— | ||
| replacement | |||||
|
67831
|
67831
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/O SPEAKER |
67832-90A04 |
— | ||
|
67831
|
67831
67831-90A01
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/SPEAKER |
67831-90A01 |
— | ||
| replacement | |||||
|
67831
|
67831
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/SPEAKER |
67832-90A04 |
— | ||
|
67832
|
67832
67831-90A00
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/O SPEAKER |
67831-90A00 |
— | ||
| replacement | |||||
|
67832
|
67832
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/O SPEAKER |
67832-90A04 |
— | ||
|
67832
|
67832
67831-90A01
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/SPEAKER |
67831-90A01 |
— | ||
| replacement | |||||
|
67832
|
67832
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1980 - 09.1983] BJ6#,FJ6#,HJ60 W/SPEAKER |
67832-90A04 |
— | ||
|
67861
|
67861
67861-90A00
Weatherstrip, Front Door, Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
67861-90A00 |
— | ||
|
67862
|
67862
67862-90A00
Weatherstrip, Front Door, Lh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
67862-90A00 |
— | ||
|
67867A
|
67867A
67868-30040 Retainer, Roof Side Rail, Rh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
67868-30040 |
from US $1.05 |
||
|
68101
|
68101
68111-90A00 Glass Sub-Assy, Front Door, Rh[08.1980 - 08.1987] BJ6#,FJ6#,HJ60..VKC..CBU ＊ＴＥＭ，厚さ＝４．０,*TEM,T=4.0 |
68111-90A00 |
US $147.06 |
||
| replacement | |||||
|
68101
|
68101
68111-90A01
Glass Sub-Assy, Front Door, Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ60..VKC..CBU ＊ＴＥＭ，厚さ＝４．０,*TEM,T=4.0 |
68111-90A01 |
— | ||
|
68101
|
68101
68111-90A01
Glass Sub-Assy, Front Door, Rh
[08.1980 - 08.1986] BJ6#,FJ6# ＊ＴＴ，厚さ＝４．０,*TT,T=4.0 |
68111-90A01 |
— | ||
|
68102
|
68102
68112-90A00 Glass Sub-Assy, Front Door, Lh[08.1980 - 08.1987] BJ6#,FJ6#,HJ60..VKC..CBU ＊ＴＥＭ，厚さ＝４．０,*TEM,T=4.0 |
68112-90A00 |
US $147.06 |
||
| replacement | |||||
|
68102
|
68102
68112-90A01
Glass Sub-Assy, Front Door, Lh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ60..VKC..CBU ＊ＴＥＭ，厚さ＝４．０,*TEM,T=4.0 |
68112-90A01 |
— | ||
|
68102
|
68102
68112-90A01
Glass Sub-Assy, Front Door, Lh
[08.1980 - 08.1986] BJ6#,FJ6# ＊ＴＴ，厚さ＝４．０,*TT,T=4.0 |
68112-90A01 |
— | ||
|
68141
|
68141
68141-90A00
Run, Front Door Glass
[08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
68141-90A00 |
— | ||
| replacement | |||||
|
68141
|
68141
68141-90A01
Run, Front Door Glass
[08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
68141-90A01 |
— | ||
|
68143
|
68143
68143-90A00
Run, Front Door Glass, Lower
[08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
68143-90A00 |
— | ||
| replacement | |||||
|
68143
|
68143
68143-90K00 Run, Front Door Glass, Lower[08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
68143-90K00 |
from US $8.24 |
||
|
68161
|
68161
68160-90A00
Weatherstrip, Front Door Glass, Outer
[08.1980 - 01.1986] BJ6#,FJ6#..VKC..CBU RH |
68160-90A00 |
— | ||
|
68161
|
68161
68210-90A01
Weatherstrip, Front Door Glass, Outer
[08.1980 - 01.1986] BJ6#,FJ6#..VKC..CBU LH |
68210-90A01 |
— | ||
|
68161A
|
68161A
68211-10030 Clip(For Front Door Glass Outer Weatherstrip)[08.1980 - 01.1986] BJ6#,FJ6#..VKC..CBU |
68211-10030 |
from US $3.33 |
||
|
68170
|
68170
68170-90A00
Weatherstrip Assy, Front Door Glass, Inner
[08.1980 - 08.1987] BJ6#,FJ6#,HJ60..VKC..CBU SEMI TRIM |
68170-90A00 |
— | ||
|
68170
|
68170
68170-90A01 Weatherstrip Assy, Front Door Glass, Inner[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# FULL TRIM |
68170-90A01 |
from US $49.17 |
||
|
68610
|
68610
68610-22010
Check Assy, Front Door
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
68610-22010 |
— | ||
|
68610A
|
68610A
68617-22010
Pin(For Front Door Check)
[08.1980 - 10.1984] BJ6#,FJ6#,HJ60 |
68617-22010 |
— | ||
| replacement | |||||
|
68610A
|
68610A
68617-90A01 Pin(For Front Door Check)[08.1980 - 10.1984] BJ6#,FJ6#,HJ60 |
68617-90A01 |
from US $3.38 |
||
|
9011906308
|
9011906308
90119-06308
New Genuine Part
|
90119-06308 |
— | ||
| replacement | |||||
|
9011906308
|
9011906308
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.97 |
||
|
9011906312
|
9011906312
90119-06312 Bolt |
90119-06312 |
US $1.25 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.65 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
|
9095006003
|
9095006003
90950-06003
Protector, Front Side Panel, No.3
|
90950-06003 |
— | ||
| replacement | |||||
|
9095006003
|
9095006003
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $3.05 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9352014010
|
9352014010
93520-14010 New Genuine Part |
93520-14010 |
US $0.52 |
||
