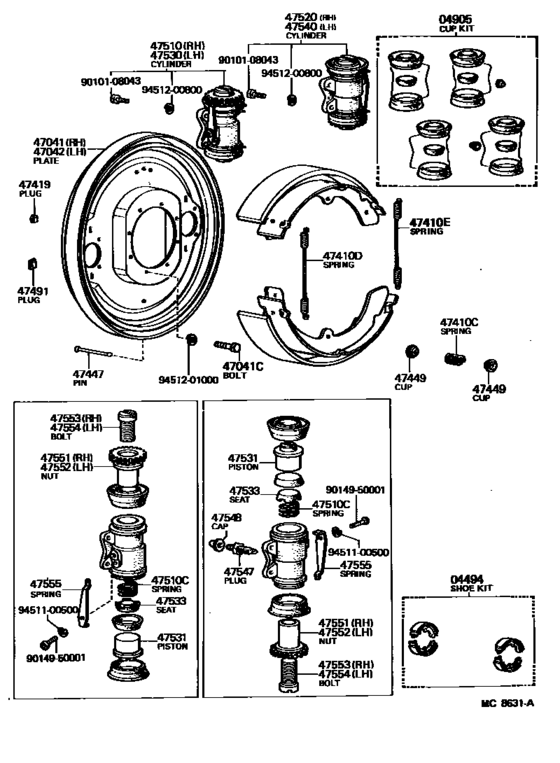

Front Drum Brake Wheel Cylinder & Backing Plate ([08.1980 - 10.1981] (8008-8110)CBU ; (8011-8411)IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04494
|
04494
04494-60020 Shoe Kit, Front BrakeFRONT BRAKE [08.1980 - 10.1981] BJ60,FJ60..CBU |
04494-60020 |
US $219.86 |
||
| replacement | |||||
|
04494
|
04494
04494-60021 Shoe Kit, Front Brake[08.1980 - 10.1981] BJ60,FJ60..CBU |
04494-60021 |
from US $92.15 |
||
|
04905
|
04905
04905-36030 Cup Kit, Front Wheel CylinderFRONT WHEEL CYLINDER [08.1980 - 10.1981] BJ60,FJ60..CBU |
04905-36030 |
US $30.24 |
||
|
47041
|
47041
47041-60040
Plate Sub-Assy, Brake Backing, Front Rh
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47041-60040 |
— | ||
| replacements | |||||
|
47041
|
47041
47041-60050
Plate Sub-Assy, Brake Backing, Front Rh
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47041-60050 |
— | ||
|
47041
|
47041
91651-60614 Bolt[08.1980 - 10.1981] BJ60,FJ60..CBU |
91651-60614 |
from US $1.16 |
||
|
47041C
|
47041C
90101-10439 Bolt (For Front Lower Ball Joint)[08.1980 - 10.1981] BJ60,FJ60..CBU ＊１４−１．２５ＰＸ２８−２０ |
90101-10439 |
US $3.05 |
||
|
47042
|
47042
47041-60040
Plate Sub-Assy, Brake Backing, Front Rh
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47041-60040 |
— | ||
| replacements | |||||
|
47042
|
47042
47041-60050
Plate Sub-Assy, Brake Backing, Front Rh
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47041-60050 |
— | ||
|
47042
|
47042
91651-60614 Bolt[08.1980 - 10.1981] BJ60,FJ60..CBU |
91651-60614 |
from US $1.16 |
||
|
47410C
|
47410C
90501-23002 Spring(For Front Brake Shoe Hold Down)[08.1980 - 10.1981] BJ60,FJ60..CBU |
90501-23002 |
US $3.03 |
||
|
47410D
|
47410D
90506-26372 Spring, Tension(For Front Brake Shoe Return)TENSION(FOR REAR BRAKE SHOE RETURN) [08.1980 - 10.1981] BJ60,FJ60..CBU |
90506-26372 |
from US $6.45 |
||
|
47410E
|
47410E
90506-26372 Spring, Tension(For Front Brake Shoe Return)TENSION(FOR REAR BRAKE SHOE RETURN) [08.1980 - 10.1981] BJ60,FJ60..CBU |
90506-26372 |
from US $6.45 |
||
|
47419
|
47419
47419-35011 Plug, Hole(For Front Brake)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47419-35011 |
from US $0.86 |
||
|
47447
|
47447
47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47447-60010 |
from US $1.81 |
||
|
47449
|
47449
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47449-30020 |
from US $1.27 |
||
|
47491
|
47491
47491-36010
Plug, Hole(For Front Brake)
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47491-36010 |
— | ||
| replacement | |||||
|
47491
|
47491
47491-36020 Plug, Hole(For Rear Brake)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47491-36020 |
US $3.05 |
||
|
47510
|
47510
47520-69015
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47520-69015 |
— | ||
|
47510C
|
47510C
90501-10759 Spring, Compression(For Front Wheel Brake Cylinder)[08.1980 - 10.1981] BJ60,FJ60..CBU |
90501-10759 |
US $2.18 |
||
|
47520
|
47520
47510-69055 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47510-69055 |
US $131.20 |
||
|
47530
|
47530
47540-69015
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[08.1980 - 10.1981] BJ60,FJ60..CBU |
47540-69015 |
— | ||
|
47531
|
47531
47531-60010 Piston, Wheel Brake Cylinder(For Front Brake)WHEEL BRAKE CYLINDER(FOR REAR BRAKE) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47531-60010 |
US $15.14 |
||
|
47533
|
47533
47533-25010 Seat, Wheel Cylinder Piston Spring(For Front Brake)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47533-25010 |
US $5.68 |
||
|
47540
|
47540
47530-69045 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47530-69045 |
US $131.20 |
||
|
47547
|
47547
47547-12010 Plug, Bleeder(For Release Cylinder)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47547-12010 |
from US $2.26 |
||
|
47548
|
47548
31478-30010 Bleeder Plug Cap[08.1980 - 10.1981] BJ60,FJ60..CBU |
31478-30010 |
from US $1.48 |
||
|
47551
|
47551
47551-36041 Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47551-36041 |
US $24.75 |
||
|
47552
|
47552
47552-36041 Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47552-36041 |
US $24.75 |
||
|
47553
|
47553
47553-60030 Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47553-60030 |
US $8.01 |
||
|
47554
|
47554
47554-60030 Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) [08.1980 - 10.1981] BJ60,FJ60..CBU |
47554-60030 |
US $8.01 |
||
|
47555
|
47555
47555-36020 Spring, Adjuster Lock(For Front Brake)[08.1980 - 10.1981] BJ60,FJ60..CBU |
47555-36020 |
US $5.39 |
||
|
9010108043
|
9010108043
90101-08043 New Genuine Part |
90101-08043 |
US $0.52 |
||
|
9014950001
|
9014950001
90149-50001 New Genuine Part |
90149-50001 |
US $1.43 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
