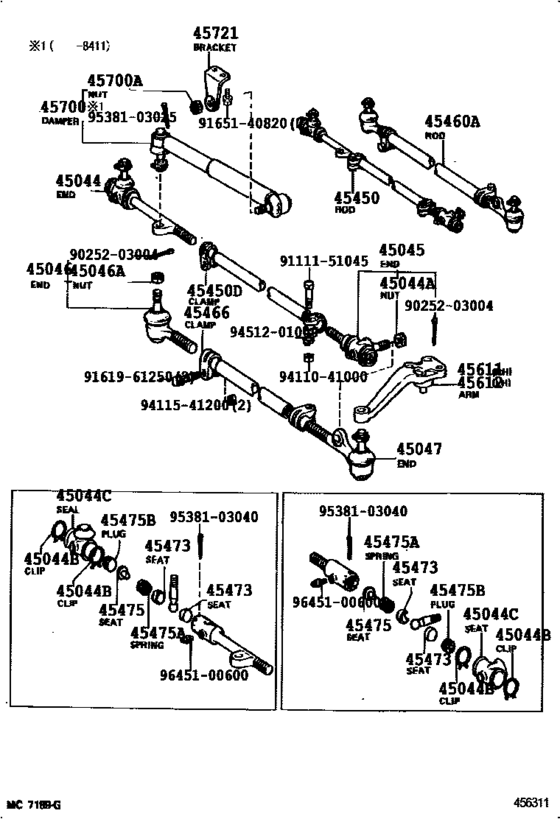

Front Steering Gear & Link ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45044
|
45044
45044-69045 End Sub-Assy, Steering Relay Rod, RhSTEERING RELAY ROD, RH [08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
45044-69045 |
US $136.86 |
||
| replacements | |||||
|
45044
|
45044
91162-61250 Bolt, Mounting[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
91162-61250 |
US $2.87 |
||
|
45044
|
45044
45044-60H01 End Sub-Assy, Steering Relay Rod, Rh[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
45044-60H01 |
US $124.08 |
||
|
45044
|
45044
45466-55020 Clamp, Steering Relay Rod End[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
45466-55020 |
US $4.84 |
||
|
45044
|
45044
94130-61200 Nut[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
94130-61200 |
from US $0.95 |
||
|
45044
|
45044
94512-01200 Washer[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
94512-01200 |
from US $0.70 |
||
|
45044A
|
45044A
90171-14042 Nut, Castle(For Pitman Arm)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90171-14042 |
from US $2.09 |
||
|
45044B
|
45044B
90467-32002 Ring, Set(For Relay Rod)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90467-32002 |
from US $1.37 |
||
|
45044C
|
45044C
45457-60010 Seal, Dust(For Relay Rod)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# RH |
45457-60010 |
from US $17.92 |
||
|
45044C
|
45044C
45458-60010 Seal, Dust(For Relay Rod)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# LH |
45458-60010 |
from US $17.38 |
||
|
45045
|
45045
45045-69035 End Sub-Assy, Steering Relay Rod, LhSTEERING RELAY ROD, RH [08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
45045-69035 |
US $120.85 |
||
| replacements | |||||
|
45045
|
45045
91162-61250 Bolt, Mounting[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
91162-61250 |
US $2.87 |
||
|
45045
|
45045
45045-60H04 End Sub-assy, Steering Relay Rod, Lh[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
45045-60H04 |
from US $82.43 |
||
|
45045
|
45045
45466-55020 Clamp, Steering Relay Rod End[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
45466-55020 |
US $4.84 |
||
|
45045
|
45045
94130-61200 Nut[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
94130-61200 |
from US $0.95 |
||
|
45045
|
45045
94512-01200 Washer[08.1980 - 06.1983] BJ6#,FJ6#,HJ60 |
94512-01200 |
from US $0.70 |
||
|
45046
|
45046
45047-69065
End Sub-Assy, Tie Rod, Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45047-69065 |
— | ||
| replacements | |||||
|
45046
|
45046
45047-60H02 End Sub-assy, Tie Rod, Lh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45047-60H02 |
US $80.52 |
||
|
45046
|
45046
45047-60H03 End Sub-assy, Tie Rod, Lh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45047-60H03 |
US $119.72 |
||
|
45046
|
45046
45047-60H04 End Sub-assy, Tie Rod, Lh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45047-60H04 |
US $97.55 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90171-14042 |
from US $2.09 |
||
|
45047
|
45047
45046-69105
End Sub-Assy, Tie Rod, Lh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45046-69105 |
— | ||
| replacements | |||||
|
45047
|
45047
45046-60H04 End Sub-assy, Tie Rod, Rh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45046-60H04 |
US $119.72 |
||
|
45047
|
45047
45046-60H08 End Sub-assy, Tie Rod, Rh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45046-60H08 |
US $99.01 |
||
|
45450
|
45450
45450-69045 Rod Assy, Steering RelaySTEERING RELAY [08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
45450-69045 |
US $180.54 |
||
| replacement | |||||
|
45450
|
45450
45450-69065 Rod Assy, Steering Relay[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
45450-69065 |
US $217.60 |
||
|
45450D
|
45450D
45466-55010 Clamp, Steering Relay Rod End[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
45466-55010 |
from US $7.24 |
||
|
45460A
|
45460A
45460-69095 Rod Assy, Tie[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45460-69095 |
US $238.40 |
||
|
45466
|
45466
45466-36010 Clamp, Tie Rod End[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45466-36010 |
from US $6.06 |
||
|
45473
|
45473
45473-35010 Seat, Ball Stud[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45473-35010 |
from US $3.76 |
||
|
45475
|
45475
45475-35010 Seat, Steering Link Joint Spring[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45475-35010 |
from US $3.94 |
||
|
45475A
|
45475A
90501-45114 Spring, Compression(For Steering Link Joint)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90501-45114 |
from US $2.28 |
||
|
45475B
|
45475B
90340-25001 Plug, Straight Screw(For Steering Link Joint)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90340-25001 |
from US $3.40 |
||
|
45611
|
45611
45611-60040
Arm, Steering Knuckle, Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45611-60040 |
— | ||
|
45612
|
45612
45612-60040
Arm, Steering Knuckle, Lh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45612-60040 |
— | ||
|
45700
|
45700
45700-69025
Damper Assy, Steering
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45700-69025 |
— | ||
| replacement | |||||
|
45700
|
45700
45700-69135 Damper Assy, SteeringSTEERING [08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45700-69135 |
from US $118.08 |
||
|
45700A
|
45700A
90171-12028 Nut, Castle(For Pitman Arm)[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
90171-12028 |
from US $1.33 |
||
|
45721
|
45721
45721-60030
Bracket, Steering Damper
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
45721-60030 |
— | ||
|
9025203004
|
9025203004
90252-03004
New Genuine Part
|
90252-03004 |
— | ||
| replacement | |||||
|
9025203004
|
9025203004
95381-03025 PIN |
95381-03025 |
from US $0.76 |
||
|
9111151045
|
9111151045
91111-51045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91111-51045 |
— | ||
| replacement | |||||
|
9111151045
|
9111151045
91112-61045 Bolt(For Rear Stabilizer) |
91112-61045 |
from US $1.16 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.76 |
||
|
9538103040
|
9538103040
95381-03040 PINCOTTER |
95381-03040 |
US $1.43 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.39 |
||
