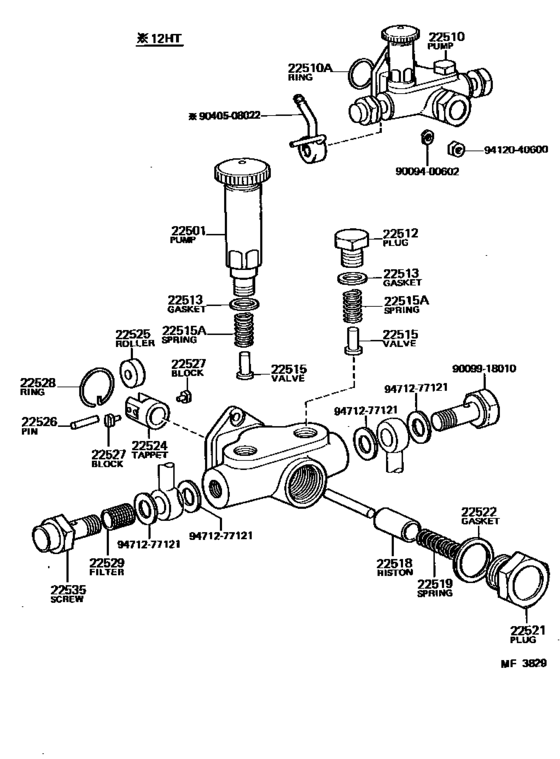

Fuel Feed Pump ([08.1980 - 10.1982] (8008-8210)3B) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22501
|
22501
22501-77021 Pump Sub-Assy, Priming[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22501-77021 |
from US $32.15 |
||
|
22510
|
22510
22510-56040
Pump Assy, Fuel Feed
[08.1980 - 10.1982] 3B..BJ60 |
22510-56040 |
— | ||
|
22510A
|
22510A
90099-14015 Ring, O(For Fuel Feed Pump)[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
90099-14015 |
US $12.54 |
||
|
22512
|
22512
22512-77020 Plug, Feed Pump Check Valve Chamber[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22512-77020 |
US $9.96 |
||
|
22513
|
22513
22513-77020 Gasket, Check Valve Chamber Plug[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22513-77020 |
from US $3.30 |
||
|
22515
|
22515
22515-77021 Valve, Feed Pump Check[08.1980 - 10.1982] 3B..BJ60 |
22515-77021 |
US $1.12 |
||
|
22515A
|
22515A
90501-05141 Spring, Feed Pump Check Valve[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
90501-05141 |
US $0.84 |
||
|
22518
|
22518
22518-56010
Piston, Feed Pump
[08.1980 - 08.1987] 12HT,2H..HJ6# レッド,RED; 3B..BJ60 レッド,RED |
22518-56010 |
— | ||
| replacement | |||||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1980 - 08.1987] 12HT,2H..HJ6# レッド,RED; 3B..BJ60 レッド,RED |
22518-77020 |
US $22.89 |
||
|
22518
|
22518
22518-56011
Piston, Feed Pump
[08.1980 - 08.1987] 12HT,2H..HJ6# イエロー,YELLOW; 3B..BJ60 イエロー,YELLOW |
22518-56011 |
— | ||
| replacement | |||||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1980 - 08.1987] 12HT,2H..HJ6# イエロー,YELLOW; 3B..BJ60 イエロー,YELLOW |
22518-77020 |
US $22.89 |
||
|
22518
|
22518
22518-56012
Piston, Feed Pump
[08.1980 - 08.1987] 12HT,2H..HJ6# グリーン,GREEN; 3B..BJ60 グリーン,GREEN |
22518-56012 |
— | ||
| replacement | |||||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1980 - 08.1987] 12HT,2H..HJ6# グリーン,GREEN; 3B..BJ60 グリーン,GREEN |
22518-77020 |
US $22.89 |
||
|
22518
|
22518
22518-56013
Piston, Feed Pump
[08.1980 - 08.1987] 12HT,2H..HJ6# ホワイト,WHITE; 3B..BJ60 ホワイト,WHITE |
22518-56013 |
— | ||
| replacement | |||||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1980 - 08.1987] 12HT,2H..HJ6# ホワイト,WHITE; 3B..BJ60 ホワイト,WHITE |
22518-77020 |
US $22.89 |
||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1980 - 08.1987] 12HT,2H..HJ6# ブルー,BLUE; 3B..BJ60 ブルー,BLUE |
22518-77020 |
US $22.89 |
||
|
22519
|
22519
22519-48010
Spring, Feed Pump Piston
[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22519-48010 |
— | ||
|
22521
|
22521
22521-77021
Plug, Feed Pump Piston Chamber
[08.1980 - 10.1982] 3B..BJ60 |
22521-77021 |
— | ||
|
22522
|
22522
22522-77020
Gasket, Feed Pump Piston Plug
[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22522-77020 |
— | ||
| replacement | |||||
|
22522
|
22522
90099-01432
Gasket, Feed Pump Piston Plug
[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
90099-01432 |
— | ||
|
22524
|
22524
22524-77021 Tappet, Feed Pump[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22524-77021 |
US $27.26 |
||
|
22525
|
22525
22525-77020 Roller, Feed Pump Tappet[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22525-77020 |
US $5.59 |
||
|
22526
|
22526
22526-77020 Pin, Feed Pump Tappet Roller[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22526-77020 |
US $3.49 |
||
|
22527
|
22527
22527-56010
Block, Feed Pump Tappet Sliding
[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22527-56010 |
— | ||
|
22528
|
22528
22528-77020 Ring, Feed Pump Tappet Snap[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22528-77020 |
US $3.32 |
||
|
22529
|
22529
22529-67010 Filter, Fuel Pump[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22529-67010 |
US $2.62 |
||
|
22535
|
22535
22535-46010
Screw, Fuel Pipe Follow
[08.1980 - 08.1987] 12HT,2H..HJ6#; 3B..BJ60 |
22535-46010 |
— | ||
|
9009400602
|
9009400602
90094-00602
Washer, Lock, No.2
|
90094-00602 |
— | ||
| replacement | |||||
|
9009400602
|
9009400602
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9009918010
|
9009918010
90099-18010 Screw, Fuel Pipe Follow |
90099-18010 |
US $3.32 |
||
|
9040508022
|
9040508022
90405-08022
New Genuine Part
|
90405-08022 |
— | ||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9471277121
|
9471277121
94712-77121 Gasket, Nipple Union(For Fuel) |
94712-77121 |
from US $1.12 |
||
