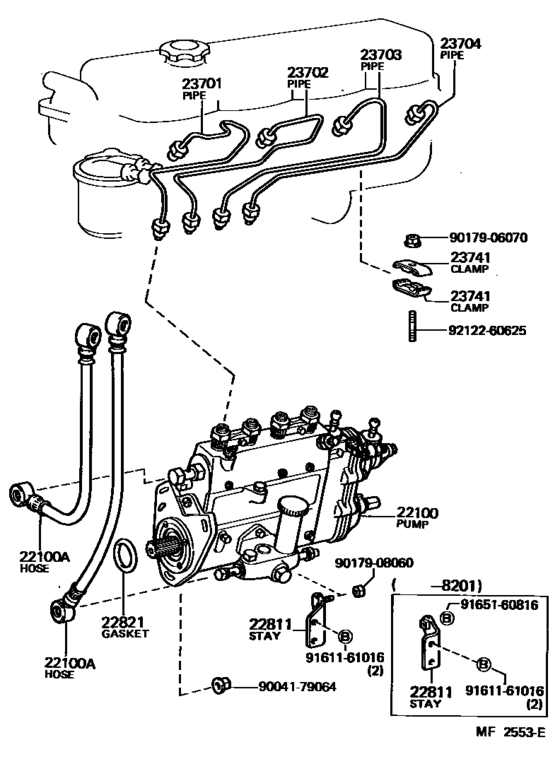

Injection Pump Assembly ([08.1980 - 10.1982] (8008-8210)3B) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-58010 Pump Assy, Injection Or Supply[08.1980 - 01.1982] 3B..BJ60 |
22100-58010 |
US $2,416.96 |
||
| replacement | |||||
|
22100
|
22100
22100-58020 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.1980 - 01.1982] 3B..BJ60 |
22100-58020 |
US $2,416.96 |
||
|
22100
|
22100
22100-58011
Pump Assy, Injection Or Supply
[01.1982 - 10.1982] 3B..BJ60 |
22100-58011 |
— | ||
|
22100A
|
22100A
23801-56040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 10.1982] 3B..BJ60 FEED PUMP TO FILTER |
23801-56040 |
— | ||
|
22100A
|
22100A
23802-56040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 10.1982] 3B..BJ60 ホース 長さ＝２１０,FILTER TO INJECTION PUMP |
23802-56040 |
— | ||
|
22811
|
22811
22811-56010 Stay, Injection Pump, No.1INJECTION PUMP, NO.1 [08.1980 - 01.1982] 3B..BJ60 |
22811-56010 |
US $10.63 |
||
|
22811
|
22811
22811-56011
Stay, Injection Pump, No.1
[01.1982 - 10.1982] 3B..BJ60 |
22811-56011 |
— | ||
|
22821
|
22821
90301-77001
Gasket, Injection Pump
[08.1980 - 10.1982] 3B..BJ60 |
90301-77001 |
— | ||
|
23701
|
23701
23701-56030
Pipe Sub-Assy, Injection, No.1
[08.1980 - 10.1982] 3B..BJ60 |
23701-56030 |
— | ||
|
23702
|
23702
23702-56030
Pipe Sub-Assy, Injection, No.2
[08.1980 - 10.1982] 3B..BJ60 |
23702-56030 |
— | ||
|
23703
|
23703
23703-56020
Pipe Sub-Assy, Injection, No.3
[08.1980 - 10.1982] 3B..BJ60 |
23703-56020 |
— | ||
|
23704
|
23704
23704-56020
Pipe Sub-Assy, Injection, No.4
[08.1980 - 10.1982] 3B..BJ60 |
23704-56020 |
— | ||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[08.1980 - 08.1987] 3B..BJ6# |
23741-56010 |
from US $6.04 |
||
|
9004179064
|
9004179064
90041-79064
New Genuine Part
|
90041-79064 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017908060
|
9017908060
90179-08060 New Genuine Part |
90179-08060 |
US $1.89 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9212260625
|
9212260625
92122-60625 New Genuine Part |
92122-60625 |
US $0.76 |
||
