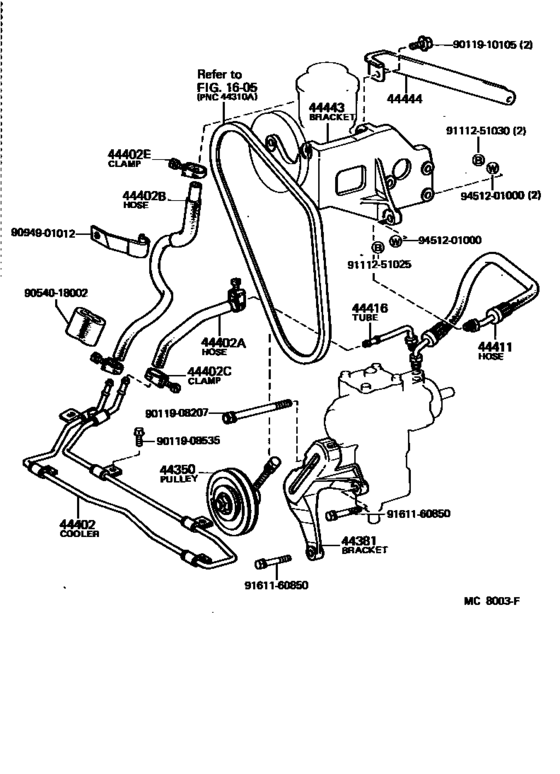

Power Steering Tube ([10.1981 - 08.1986] (8110-8608)BJ6#) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44350
|
44350
44350-60010
Pulley Assy, Power Steering Idle
[10.1981 - 08.1986] BJ6# |
44350-60010 |
— | ||
|
44381
|
44381
44381-60010
Bracket, Power Steering Idle Pulley
[10.1981 - 10.1982] BJ60 |
44381-60010 |
— | ||
| replacement | |||||
|
44381
|
44381
44381-60011
Bracket, Power Steering Idle Pulley
[10.1981 - 10.1982] BJ60 |
44381-60011 |
— | ||
|
44402
|
44402
44420-60060
Cooler Sub-Assy, Power Steering Oil, No.1
[10.1981 - 08.1987] BJ6#,FJ6# |
44420-60060 |
— | ||
|
44402A
|
44402A
90445-18089 Hose, Power Steering Oil Cooler Inlet[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
90445-18089 |
from US $8.63 |
||
|
44402B
|
44402B
90447-18008 Hose, Power Steering Oil Cooler OutletPOWER STEERING OIL COOLER OUTLET [10.1981 - 08.1986] BJ6# |
90447-18008 |
US $34.36 |
||
|
44402C
|
44402C
90460-01001 Clamp, Oil Cooler Hose[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
90460-01001 |
US $7.29 |
||
|
44402E
|
44402E
90460-01001 Clamp, Oil Cooler Hose[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
90460-01001 |
US $7.29 |
||
|
44411
|
44411
44411-60190 Hose, Pressure FeedPRESSURE FEED [10.1981 - 11.1984] BJ6# |
44411-60190 |
US $294.11 |
||
|
44416
|
44416
44416-60050 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [10.1981 - 02.1982] BJ60,FJ60 |
44416-60050 |
US $17.18 |
||
| replacement | |||||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[10.1981 - 02.1982] BJ60,FJ60 |
44416-60061 |
— | ||
|
44416
|
44416
44416-60060
Tube, Return(For Steering Gear Outlet)
[02.1982 - 10.1985] BJ6#,FJ6#,HJ60 |
44416-60060 |
— | ||
| replacement | |||||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[02.1982 - 10.1985] BJ6#,FJ6#,HJ60 |
44416-60061 |
— | ||
|
44443
|
44443
44443-60040
Bracket, Pump
[10.1981 - 11.1984] BJ6# |
44443-60040 |
— | ||
|
9011908207
|
9011908207
90119-08207
New Genuine Part
|
90119-08207 |
— | ||
| replacement | |||||
|
9011908207
|
9011908207
90119-08768
New Genuine Part
|
90119-08768 |
— | ||
|
9011908535
|
9011908535
90119-08535 New Genuine Part |
90119-08535 |
US $2.33 |
||
|
9011910105
|
9011910105
90119-10105
New Genuine Part
|
90119-10105 |
— | ||
|
9054018002
|
9054018002
90540-18002
Cushion(For Pressure Feed Hose)
|
90540-18002 |
— | ||
|
9094901012
|
9094901012
90949-01012 New Genuine Part |
90949-01012 |
US $7.72 |
||
|
9111251025
|
9111251025
91112-51025
Bolt(For Torque Arm Setting)
|
91112-51025 |
— | ||
| replacement | |||||
|
9111251025
|
9111251025
91112-61025 Bolt(For Clutch Pedal Stopper) |
91112-61025 |
US $0.96 |
||
|
9111251030
|
9111251030
91112-51030
Pin Or Bolt(For Steering Worm Yoke)
|
91112-51030 |
— | ||
| replacement | |||||
|
9111251030
|
9111251030
91112-61032 Pin Or Bolt(For Steering Worm Yoke) |
91112-61032 |
US $1.49 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $1.51 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.74 |
||
