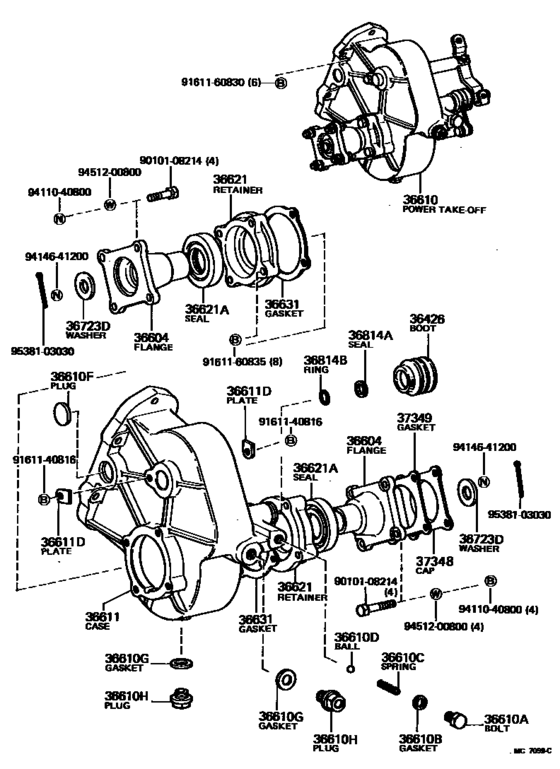

Power Take-Off Case & Gear ([08.1980 - 10.1982] (8008-8210)CBU) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36426
|
36426
36426-60010 Boot, Diaphragm Push Rod[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
36426-60010 |
US $3.72 |
||
|
36604
|
36604
33324-60020 Flange, Output Shaft Companion[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU FR DRIVE |
33324-60020 |
US $84.45 |
||
|
36604
|
36604
37324-60050
Flange, Universal Joint (For Front Power Take-Off)
[08.1980 - 10.1982] BJ60,FJ60..CBU RR DRIVE |
37324-60050 |
— | ||
|
36610
|
36610
36610-60060 Power Take-Off Assy[08.1980 - 10.1982] BJ60,FJ60..CBU |
36610-60060 |
US $2,067.52 |
||
|
36610A
|
36610A
90341-12069 Bolt, Lock(For Transfer Front Drive Shift Shaft Lock)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90341-12069 |
US $3.35 |
||
|
36610B
|
36610B
90430-12030 Gasket, Shift Fork Lock Bolt[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU 厚さ＝０．８ |
90430-12030 |
US $2.18 |
||
|
36610C
|
36610C
90501-12033
Spring, Compression (For Shift Detent Ball Low Side)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90501-12033 |
— | ||
|
36610D
|
36610D
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90360-10003 |
from US $0.89 |
||
|
36610F
|
36610F
90330-27010 Plug (For Transfer Case)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90330-27010 |
US $2.20 |
||
|
36610G
|
36610G
12157-10010 Gasket (For Drain Plug)[08.1980 - 09.1981] BJ60,FJ60..CBU |
12157-10010 |
from US $0.72 |
||
|
36610G
|
36610G
90430-18007
Gasket(For Water Hole)
[09.1981 - 08.1984] BJ6#,FJ6#..CBU |
90430-18007 |
— | ||
| replacement | |||||
|
36610G
|
36610G
90430-18008 Gasket[09.1981 - 08.1984] BJ6#,FJ6#..CBU |
90430-18008 |
from US $0.82 |
||
|
36610H
|
36610H
90341-18002 Plug, No.1[08.1980 - 04.1983] BJ6#,FJ6#,HJ60..CBU |
90341-18002 |
from US $3.36 |
||
|
36611
|
36611
36611-60030 Case, Power Take-OffPOWER TAKE-OFF [08.1980 - 10.1982] BJ60,FJ60..CBU |
36611-60030 |
US $518.34 |
||
|
36611D
|
36611D
36726-60010
Plate, Lock (For Transfer High & Low Shift Fork Shaft)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
36726-60010 |
— | ||
|
36621
|
36621
36621-60010 Retainer, Power Take-Off Bearing[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
36621-60010 |
US $117.94 |
||
|
36621A
|
36621A
90311-35004 Seal, Oil (For Power Take-Off Bearing Retainer)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90311-35004 |
from US $7.43 |
||
|
36631
|
36631
36631-60010 Gasket, Power Take-Off Bearing Retainer[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
36631-60010 |
US $10.46 |
||
|
36723D
|
36723D
90201-12169
Washer, Plate (For Front Power Take-Off Shaft)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90201-12169 |
— | ||
|
36814A
|
36814A
90303-13018 Seal, Dust (For Front Power Take-Off Shaft)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
90303-13018 |
US $1.40 |
||
|
36814B
|
36814B
96710-02012
Ring, O (For Front Power Take-Off Shaft)
[08.1980 - 11.1981] BJ60,FJ60..CBU |
96710-02012 |
— | ||
| replacement | |||||
|
36814B
|
36814B
96711-24012
Ring, O (For Front Power Take-Off Shaft)
[08.1980 - 11.1981] BJ60,FJ60..CBU |
96711-24012 |
— | ||
|
36814B
|
36814B
96711-24012
Ring, O (For Front Power Take-Off Shaft)
[11.1981 - 08.1987] BJ6#,FJ6#,HJ6#..CBU |
96711-24012 |
— | ||
|
37348
|
37348
37348-60010
Cap, Retainer
[08.1980 - 10.1982] BJ60,FJ60..CBU |
37348-60010 |
— | ||
|
37349
|
37349
37349-60010
Gasket, Retainer Cap
[08.1980 - 10.1982] BJ60,FJ60..CBU |
37349-60010 |
— | ||
|
9010108214
|
9010108214
90101-08214
Bolt (For Winch Drive Shaft Setting)
|
90101-08214 |
— | ||
| replacement | |||||
|
9010108214
|
9010108214
90101-08262 Bolt (For Propeller Shaft) |
90101-08262 |
from US $1.48 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.35 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
US $1.10 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.78 |
||
|
9414641200
|
9414641200
94146-41200 New Genuine Part |
94146-41200 |
US $4.89 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.65 |
||
|
9538103030
|
9538103030
95381-03030 New Genuine Part |
95381-03030 |
US $1 |
||
