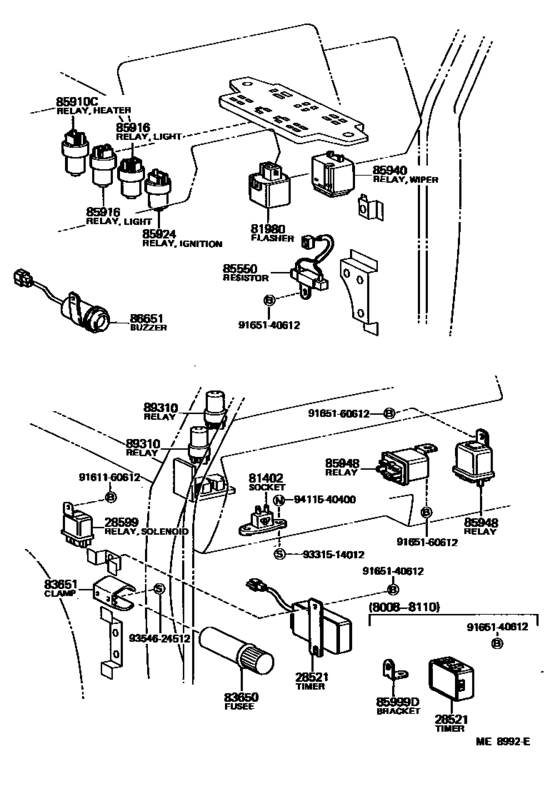

Switch & Relay & Computer ([08.1980 - 11.1984] (8008-8411)) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28521
|
28521
28521-54031 Timer, PreheatingPREHEATING [08.1980 - 10.1981] 3B..BJ60 |
28521-54031 |
US $182 |
||
| replacement | |||||
|
28521
|
28521
28521-56020 Timer, PreheatingPREHEATING [08.1980 - 10.1981] 3B..BJ60 |
28521-56020 |
US $171.81 |
||
|
28521
|
28521
28521-57010
Timer, Preheating
[10.1981 - 11.1984] 3B..BJ6# |
28521-57010 |
— | ||
|
81402
|
81402
81402-29016 Socket Sub-Assy, Inspection Lamp, No.1[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
81402-29016 |
US $15.59 |
||
|
81980
|
81980
81980-36060 Flasher Assy, Turn Signal[08.1980 - 08.1987] BJ6#,HJ6# |
81980-36060 |
US $129.56 |
||
|
83650
|
83650
90986-01003
Fusee
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90986-01003 |
— | ||
|
83651
|
83651
81713-90500 Holder, Fusee[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
81713-90500 |
US $4.51 |
||
|
85550
|
85550
85550-90A00 Resistor Assy, Pilot Lamp[08.1980 - 08.1987] BJ6#,HJ6# |
85550-90A00 |
US $37.27 |
||
|
85910C
|
85910C
85913-90A00 Relay Assy (For Heater Blower Motor)[08.1980 - 08.1987] BJ6#,HJ60 W/COOLER |
85913-90A00 |
US $56.78 |
||
|
85910C
|
85910C
90987-02003 Relay Assy, Turn Signal[08.1980 - 09.1983] BJ6#,HJ60 |
90987-02003 |
US $33.78 |
||
| replacements | |||||
|
85910C
|
85910C
85999-12050
Bracket, Main Relay
[08.1980 - 09.1983] BJ6#,HJ60 |
85999-12050 |
— | ||
|
85910C
|
85910C
90987-02005 Relay, Ignition, No.1[08.1980 - 09.1983] BJ6#,HJ60 |
90987-02005 |
from US $28.80 |
||
|
85916
|
85916
90987-01002 Relay, Heater Pump[08.1980 - 11.1984] BJ6#,HJ60 TAIL & HEAD |
90987-01002 |
US $28.54 |
||
| replacement | |||||
|
85916
|
85916
90987-01004 Relay, Heater Pump[08.1980 - 11.1984] BJ6#,HJ60 TAIL & HEAD |
90987-01004 |
US $35.78 |
||
|
85924
|
85924
90987-02003 Relay Assy, Turn Signal[08.1980 - 09.1983] BJ6#,HJ60 |
90987-02003 |
US $33.78 |
||
| replacements | |||||
|
85924
|
85924
85999-12050
Bracket, Main Relay
[08.1980 - 09.1983] BJ6#,HJ60 |
85999-12050 |
— | ||
|
85924
|
85924
90987-02005 Relay, Ignition, No.1[08.1980 - 09.1983] BJ6#,HJ60 |
90987-02005 |
from US $28.80 |
||
|
85940
|
85940
85940-90A00
Relay Assy, Windshield Wiper
[08.1980 - 11.1984] BJ6#,HJ60 |
85940-90A00 |
— | ||
|
85948
|
85948
85940-26010 Relay Assy (For Heater Blower Motor)[08.1980 - 08.1987] BJ6#,HJ6# |
85940-26010 |
US $50.67 |
||
|
85999D
|
85999D
85999-89101 Bracket Sub-Assy, Flasher[08.1980 - 10.1981] BJ60 |
85999-89101 |
US $2.77 |
||
|
89310
|
89310
90987-02003 Relay Assy, Turn Signal[08.1980 - 09.1983] BJ6#,HJ60 |
90987-02003 |
US $33.78 |
||
| replacements | |||||
|
89310
|
89310
85999-12050
Bracket, Main Relay
[08.1980 - 09.1983] BJ6#,HJ60 |
85999-12050 |
— | ||
|
89310
|
89310
90987-02005 Relay, Ignition, No.1[08.1980 - 09.1983] BJ6#,HJ60 |
90987-02005 |
from US $28.80 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9354624512
|
9354624512
93546-24512 New Genuine Part |
93546-24512 |
US $1.31 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
