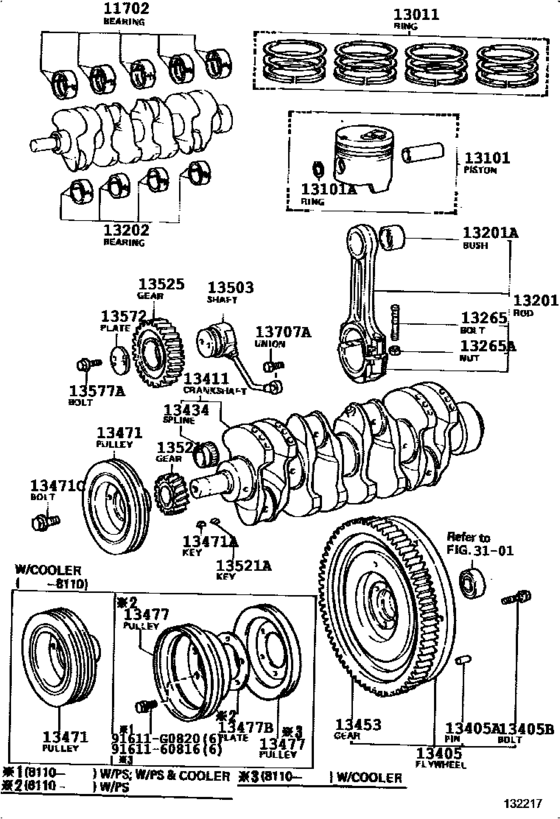

Crankshaft & Piston ([08.1980 - 10.1982] (8008-8210)3B) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11702-56010
Bearing Set, Crankshaft
[08.1980 - 09.1984] 3B..BJ6# ＳＴＤ |
11702-56010 |
— | ||
|
11702
|
11702
11704-56010
Bearing Set, Crankshaft
[08.1980 - 09.1984] 3B..BJ6# Ｕ／Ｓ ０．２５ |
11704-56010 |
— | ||
|
11702
|
11702
11705-56010 Bearing Set, Crankshaft[08.1980 - 09.1984] 3B..BJ6# Ｕ／Ｓ ０．５０ |
11705-56010 |
US $429.52 |
||
|
11702
|
11702
11707-56010 Bearing Set, Crankshaft[08.1980 - 09.1984] 3B..BJ6# Ｕ／Ｓ １．００ |
11707-56010 |
US $429.52 |
||
|
13011
|
13011
13011-58010
Ring Set, Piston
[08.1980 - 09.1984] 3B..BJ6# ＳＴＤ |
13011-58010 |
— | ||
|
13101
|
13101
13101-58011
Piston Sub-Assy, W/pin
[08.1980 - 09.1984] 3B..BJ6# ＳＴＤ |
13101-58011 |
— | ||
|
13101A
|
13101A
90521-36003 Ring, Hole Snap(For Piston Pin)[08.1980 - 09.1984] 3B..BJ6# |
90521-36003 |
US $2.77 |
||
|
13201
|
13201
13201-58010
Rod Sub-Assy, Connecting
[08.1980 - 09.1984] 3B..BJ6# |
13201-58010 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-59037
Rod Sub-Assy, Connecting
[08.1980 - 09.1984] 3B..BJ6# |
13201-59037 |
— | ||
|
13201A
|
13201A
90999-73088
Bush(For Connecting Rod Small End)
[08.1980 - 08.1986] 3B..BJ6# |
90999-73088 |
— | ||
| replacement | |||||
|
13201A
|
13201A
90999-73132
Bush(For Connecting Rod Small End)
[08.1980 - 08.1986] 3B..BJ6# |
90999-73132 |
— | ||
|
13202
|
13202
13202-58010
Bearing Set, Connecting Rod
[08.1980 - 09.1984] 3B..BJ6# ＳＴＤ |
13202-58010 |
— | ||
|
13202
|
13202
13204-58010 Bearing Set, Connecting Rod[08.1980 - 09.1984] 3B..BJ6# Ｕ／Ｓ ０．２５ |
13204-58010 |
US $184.91 |
||
|
13202
|
13202
13205-58010 Bearing Set, Connecting Rod[08.1980 - 09.1984] 3B..BJ6# Ｕ／Ｓ ０．５０ |
13205-58010 |
US $184.91 |
||
|
13202
|
13202
13207-58010 Bearing Set, Connecting Rod[08.1980 - 09.1984] 3B..BJ6# Ｕ／Ｓ １．００ |
13207-58010 |
US $184.91 |
||
|
13265
|
13265
13265-58010
Bolt, Connecting Rod
[08.1980 - 08.1986] 3B..BJ6# |
13265-58010 |
— | ||
|
13265A
|
13265A
90170-12010
Nut, Hexagon(For Connecting Rod Bolt)
[08.1980 - 02.1984] 3B..BJ6# |
90170-12010 |
— | ||
| replacement | |||||
|
13265A
|
13265A
90179-12044 Nut, Hexagon(For Connecting Rod Bolt)[08.1980 - 02.1984] 3B..BJ6# |
90179-12044 |
US $6.84 |
||
|
13405
|
13405
13405-59055
Flywheel Sub-Assy
[08.1980 - 06.1984] 3B..BJ6# |
13405-59055 |
— | ||
| replacements | |||||
|
13405
|
13405
13405-56032
Flywheel Sub-Assy
[08.1980 - 06.1984] 3B..BJ6# |
13405-56032 |
— | ||
|
13405
|
13405
90913-01015 Bolt, Flywheel Setting[08.1980 - 06.1984] 3B..BJ6# |
90913-01015 |
US $5.02 |
||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1980 - 08.1987] 3B..BJ6# 長さ＝２２，外径＝１０; 2F,3F..FJ6# 長さ＝２２，外径＝１０; 12HT,2H..HJ6#..5F 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.97 |
||
|
13405B
|
13405B
90105-13002
Bolt, Flywheel Setting
[08.1980 - 11.1984] 3B..BJ6# |
90105-13002 |
— | ||
|
13411
|
13411
13401-58010
Crankshaft
[08.1980 - 09.1984] 3B..BJ6# |
13401-58010 |
— | ||
| replacements | |||||
|
13411
|
13411
13041-58050-01 Bearing, Connecting Rod[08.1980 - 09.1984] 3B..BJ6# |
13041-58050-01 |
from US $17.31 |
||
|
13411
|
13411
90561-50001
New Genuine Part
[08.1980 - 09.1984] 3B..BJ6# |
90561-50001 |
— | ||
|
13411
|
13411
13041-58050-02 Bearing, Connecting Rod[08.1980 - 09.1984] 3B..BJ6# |
13041-58050-02 |
from US $15.05 |
||
|
13411
|
13411
13401-58022
Crankshaft
[08.1980 - 09.1984] 3B..BJ6# |
13401-58022 |
— | ||
|
13434
|
13434
13519-56010 Spline, Oil Pump Drive[08.1980 - 08.1986] 3B..BJ6# |
13519-56010 |
from US $48.13 |
||
|
13453
|
13453
13453-56020
Gear, Flywheel Ring
[08.1980 - 08.1986] 3B..BJ6# N=110 |
13453-56020 |
— | ||
| replacement | |||||
|
13453
|
13453
13453-56021 Gear, Flywheel RingFLYWHEEL RING [08.1980 - 08.1986] 3B..BJ6# N=110 |
13453-56021 |
from US $200.99 |
||
|
13471
|
13471
13470-56100
Pulley, Crankshaft
[08.1980 - 10.1981] 3B..BJ60 |
13470-56100 |
— | ||
| replacements | |||||
|
13471
|
13471
90901-19032 Bolt(For Crankshaft Pulley Set)[08.1980 - 10.1981] 3B..BJ60 |
90901-19032 |
US $16.77 |
||
|
13471
|
13471
13470-56171
Pulley Assy, Crankshaft
[08.1980 - 10.1981] 3B..BJ60 |
13470-56171 |
— | ||
|
13471
|
13471
13470-56101
Pulley, Crankshaft
[10.1981 - 09.1984] 3B..BJ6# |
13470-56101 |
— | ||
| replacements | |||||
|
13471
|
13471
90901-19032 Bolt(For Crankshaft Pulley Set)[10.1981 - 09.1984] 3B..BJ6# |
90901-19032 |
US $16.77 |
||
|
13471
|
13471
13470-56171
Pulley Assy, Crankshaft
[10.1981 - 09.1984] 3B..BJ6# |
13470-56171 |
— | ||
|
13471
|
13471
13470-56140
Pulley, Crankshaft
[08.1980 - 10.1981] 3B..BJ60 W/COOLER |
13470-56140 |
— | ||
| replacements | |||||
|
13471
|
13471
13470-56171
Pulley Assy, Crankshaft
[08.1980 - 10.1981] 3B..BJ60 W/COOLER |
13470-56171 |
— | ||
|
13471
|
13471
91611-B0816 Bolt[08.1980 - 10.1981] 3B..BJ60 W/COOLER |
91611-B0816 |
from US $0.99 |
||
|
13471
|
13471
88451-60020
Pulley, Crankshaft, No.2
[08.1980 - 10.1981] 3B..BJ60 W/COOLER |
88451-60020 |
— | ||
|
13471
|
13471
90901-19032 Bolt(For Crankshaft Pulley Set)[08.1980 - 10.1981] 3B..BJ60 W/COOLER |
90901-19032 |
US $16.77 |
||
|
13471A
|
13471A
95161-10416 Key, Crankshaft(For Crankshaft Pulley Set)[08.1980 - 08.1986] 3B..BJ6# |
95161-10416 |
US $2.97 |
||
|
13471C
|
13471C
90105-16003
Bolt(For Crankshaft Pulley Set)
[08.1980 - 08.1986] 3B..BJ6# |
90105-16003 |
— | ||
|
13477
|
13477
13477-60030
Pulley, Crankshaft, No.2
[10.1981 - 08.1986] 3B..BJ6# NO.2,W/PS |
13477-60030 |
— | ||
|
13477
|
13477
88451-60020
Pulley, Crankshaft, No.2
[10.1981 - 11.1984] 3B..BJ6# NO.1,W/COOLER |
88451-60020 |
— | ||
|
13477B
|
13477B
13478-60010
Plate, Crankshaft Pulley, No.2
[10.1981 - 08.1986] 3B..BJ6# W/PS |
13478-60010 |
— | ||
|
13503
|
13503
13504-56020
Shaft Sub-Assy, Idle Gear
[08.1980 - 10.1982] 3B..BJ60 |
13504-56020 |
— | ||
| replacement | |||||
|
13503
|
13503
13504-58010 Shaft Sub-Assy, Idle Gear[08.1980 - 10.1982] 3B..BJ60 |
13504-58010 |
US $139.78 |
||
|
13521
|
13521
13521-56020
Gear Or Sprocket, Crankshaft Timing
[08.1980 - 09.1984] 3B..BJ6# N=22 |
13521-56020 |
— | ||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[08.1980 - 09.1986] 3B..BJ6#; 12HT,2H..HJ6# |
95161-10519 |
from US $1.60 |
||
|
13525
|
13525
13525-56010
Gear, Idle, No.1
[08.1980 - 09.1984] 3B..BJ6# |
13525-56010 |
— | ||
|
13572
|
13572
13572-56010
Plate, Idle Gear Thrust
[08.1980 - 09.1984] 3B..BJ6# |
13572-56010 |
— | ||
| replacement | |||||
|
13572
|
13572
13572-56020 Plate, Idle Gear Thrust[08.1980 - 09.1984] 3B..BJ6# |
13572-56020 |
US $8.26 |
||
|
13577A
|
13577A
90119-10208 Bolt, Hexagon(For Idle Gear Bolt Lock)[08.1980 - 06.1986] 3B..BJ6# |
90119-10208 |
US $7.72 |
||
|
13707A
|
13707A
90044-01010
Union(For Oil Pipe, No.1)
[08.1980 - 10.1982] 3B..BJ60 |
90044-01010 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
