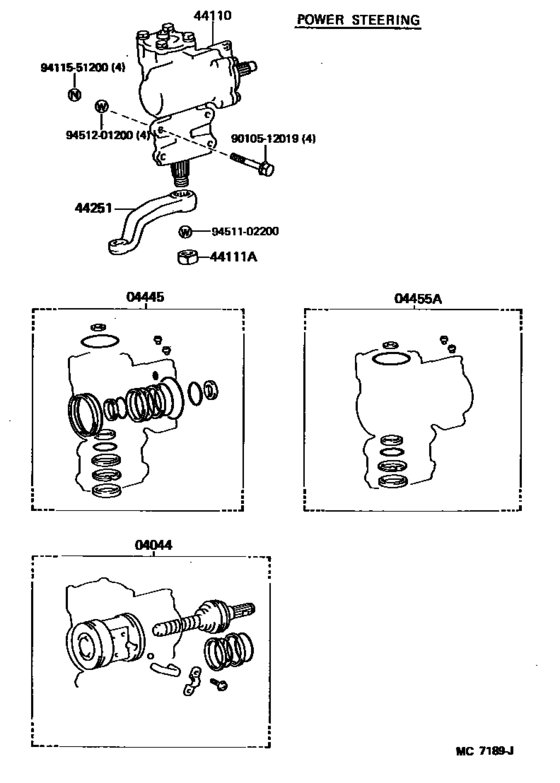

Front Steering Gear & Link ([08.1980 - 11.1984] (8008-8411)) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04044
|
04044
04044-60040
Warm Kit, Power Steering
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
04044-60040 |
— | ||
|
04445
|
04445
04445-60020
Gasket Kit, Power Steering Gear(For Recirculating Ball)
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
04445-60020 |
— | ||
|
04455A
|
04455A
04455-60010 Gasket Kit, Power Steering Cross Shaft OverholePOWER STEERING CROSS SHAFT OVERHOLE [10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
04455-60010 |
US $36.11 |
||
| replacement | |||||
|
04455A
|
04455A
04455-60011 Gasket Kit, Power Steering Cross Shaft Overhole[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
04455-60011 |
US $36.40 |
||
|
44110
|
44110
44110-60041 Gear Assy, Power SteeringPOWER STEERING [10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
44110-60041 |
US $2,023.84 |
||
|
44111A
|
44111A
90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
90170-22058 |
from US $2.05 |
||
|
44251
|
44251
45411-60090 Arm, Pitman[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
45411-60090 |
US $131.04 |
||
|
9010512019
|
9010512019
90105-12019 Bolt, Hexagon(For Idler Arm Support Setting) |
90105-12019 |
US $5.39 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.06 |
||
|
9451102200
|
9451102200
94511-02200 WASHER |
94511-02200 |
from US $1.16 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.67 |
||
