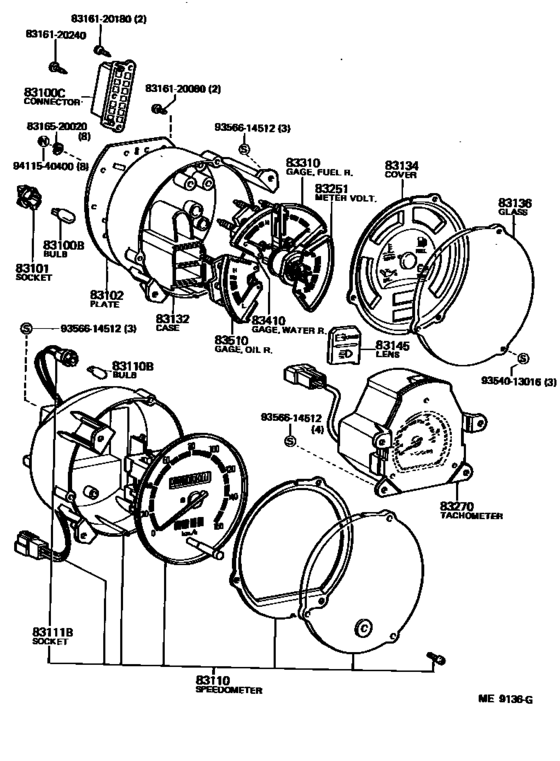

Meter ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99134-12030 Bulb, Position Indicator Lamp[08.1980 - 08.1987] BJ6#,HJ6# ２４Ｖ ３Ｗ,24V 3W |
99134-12030 |
from US $2.15 |
||
|
83100C
|
83100C
90980-08209
Connector, Combination Meter
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90980-08209 |
— | ||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
83101-20040 |
from US $1.52 |
||
|
83102
|
83102
83247-90A01 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1980 - 11.1984] BJ6#,HJ60 |
83247-90A01 |
US $46.88 |
||
|
83110
|
83110
83110-90A13 Speedometer Assy[08.1980 - 11.1984] BJ6#,HJ60 |
83110-90A13 |
US $330.51 |
||
|
83110B
|
83110B
99134-12030 Bulb, Position Indicator Lamp[08.1980 - 08.1987] BJ6#,HJ6# 24V 3W |
99134-12030 |
from US $2.15 |
||
|
83111B
|
83111B
83101-36010 Socket Sub-Assy, Combination Meter Bulb[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
83101-36010 |
US $85.90 |
||
|
83132
|
83132
83132-90A02 Case, Combination MeterCOMBINATION METER [08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
83132-90A02 |
US $35.53 |
||
|
83134
|
83134
83134-90A00 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
83134-90A00 |
US $44.84 |
||
|
83136
|
83136
83138-90A00
Glass, Gage Meter
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
83138-90A00 |
— | ||
|
83145
|
83145
83145-90A00
Lens, Meter, No.1
[08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
83145-90A00 |
— | ||
|
83251
|
83251
83245-90A01 Meter, VoltageVOLTAGE [08.1980 - 08.1986] BJ6#,HJ6# |
83245-90A01 |
US $103.38 |
||
|
83270
|
83270
83270-90A02 Tachometer Assy, EngineENGINE [08.1980 - 11.1984] BJ6#,HJ60 |
83270-90A02 |
US $275.18 |
||
|
83310
|
83310
83243-90A00
Gage Assy, Fuel Receiver
[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
83243-90A00 |
— | ||
|
83410
|
83410
83244-90A00
Gage Assy, Water Temperature Receiver
[08.1980 - 08.1986] BJ6#,FJ6#,HJ6# |
83244-90A00 |
— | ||
|
83510
|
83510
83246-90A01
Gage Assy, Oil Pressure Receiver
[08.1980 - 10.1985] BJ6#,HJ60 |
83246-90A01 |
— | ||
|
8316120080
|
8316120080
83161-20080
Case, Combination Meter Mirror, No.1
|
83161-20080 |
— | ||
|
8316120180
|
8316120180
83161-20180 Case, Combination Meter Mirror, No.1 |
83161-20180 |
US $2.33 |
||
|
8316120240
|
8316120240
83161-20240 Case, Combination Meter Mirror, No.1 |
83161-20240 |
US $1.69 |
||
|
8316520020
|
8316520020
83165-20020 Mirror, Combination Meter, No.2 |
83165-20020 |
US $1.16 |
||
|
9354013016
|
9354013016
93540-13016
Bulb, Combination Meter, No.1
|
93540-13016 |
— | ||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
from US $0.63 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
