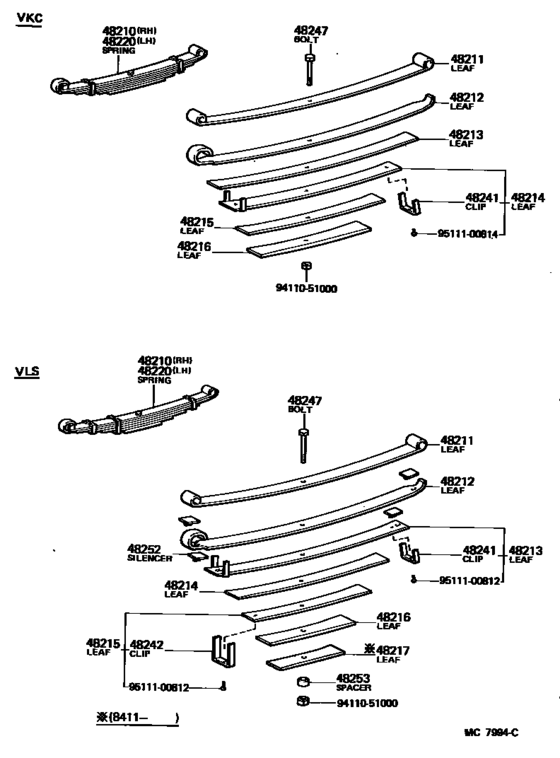

Rear Spring & Shock Absorber ([08.1980 - 08.1986] (8008-8608)CBU ; (8608- )VLS) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-60250 Spring Assy, Rear RhREAR RH [10.1981 - 11.1984] BJ6#,HJ60..VLS |
48210-60250 |
US $623.17 |
||
|
48211
|
48211
48211-60250 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48211-60250 |
US $202.38 |
||
| replacement | |||||
|
48211
|
48211
48211-60280 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48211-60280 |
US $205.30 |
||
|
48211
|
48211
48211-60280 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48211-60280 |
US $205.30 |
||
|
48212
|
48212
48212-60250 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48212-60250 |
US $147.06 |
||
| replacement | |||||
|
48212
|
48212
48212-60660 Leaf, Rear Spring, No.2[10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48212-60660 |
US $145.60 |
||
|
48212
|
48212
48212-60280 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48212-60280 |
US $141.23 |
||
| replacement | |||||
|
48212
|
48212
48212-60710 Leaf, Rear Spring, No.2[10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48212-60710 |
US $145.60 |
||
|
48213
|
48213
48202-60250 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48202-60250 |
US $107.74 |
||
|
48213
|
48213
48202-60280 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48202-60280 |
US $97.55 |
||
|
48214
|
48214
48214-60250 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48214-60250 |
US $78.62 |
||
| replacement | |||||
|
48214
|
48214
48214-60280 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48214-60280 |
US $80.08 |
||
|
48214
|
48214
48214-60280 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48214-60280 |
US $80.08 |
||
|
48215
|
48215
48203-60250 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48203-60250 |
US $62.32 |
||
| replacement | |||||
|
48215
|
48215
48203-60280 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48203-60280 |
US $62.32 |
||
|
48215
|
48215
48203-60280 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48203-60280 |
US $62.32 |
||
|
48216
|
48216
48216-60250 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48216-60250 |
US $28.39 |
||
| replacement | |||||
|
48216
|
48216
48216-60280 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [10.1981 - 11.1984] BJ6#,HJ60..VLS RH |
48216-60280 |
US $31.30 |
||
|
48216
|
48216
48216-60280 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [10.1981 - 11.1984] BJ6#,HJ60..VLS LH |
48216-60280 |
US $31.30 |
||
|
48220
|
48220
48210-60280 Spring Assy, Rear LhREAR RH [10.1981 - 11.1984] BJ6#,HJ60..VLS |
48210-60280 |
US $601.33 |
||
|
48241
|
48241
48141-35021 Clip, Front Spring, No.1[05.1982 - 11.1984] BJ6#,HJ60..VLS RH |
48141-35021 |
US $5.24 |
||
|
48241
|
48241
48141-60081 Clip, Front Spring, No.1FRONT SPRING, NO.1 [05.1982 - 11.1984] BJ6#,HJ60..VLS LH |
48141-60081 |
US $3.93 |
||
|
48242
|
48242
48142-60081 Clip, Front Spring, No.2FRONT SPRING, NO.2 [05.1982 - 11.1984] BJ6#,HJ60..VLS LH |
48142-60081 |
US $4.95 |
||
|
48242
|
48242
48142-60280 Clip, Rear Spring, No.2REAR SPRING, NO.2 [05.1982 - 11.1984] BJ6#,HJ60..VLS RH |
48142-60280 |
US $4.95 |
||
|
48247
|
48247
48247-60250
Bolt, Rear Spring, Center
[10.1981 - 11.1984] BJ6#,HJ60..VLS |
48247-60250 |
— | ||
|
48252
|
48252
48252-26070 Silencer, Front Spring[10.1981 - 08.1987] BJ6#,HJ6#..VLS |
48252-26070 |
from US $2.07 |
||
|
48253
|
48253
48253-15010
Spacer, Rear Spring, No.1
[10.1981 - 08.1987] BJ6#,HJ6#..VLS |
48253-15010 |
— | ||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9511100812
|
9511100812
95111-00812
New Genuine Part
|
95111-00812 |
— | ||
|
9511100814
|
9511100814
95111-00814
New Genuine Part
|
95111-00814 |
— | ||
