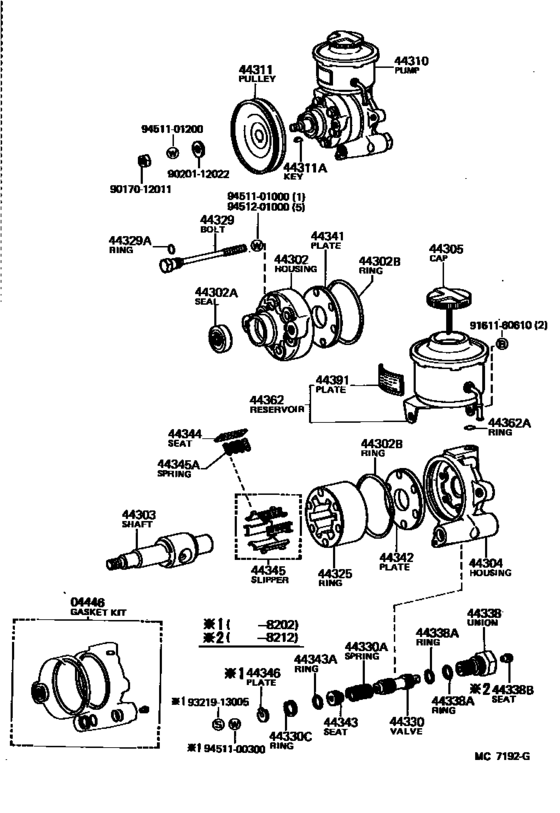

Vane Pump & Reservoir (Power Steering) ([08.1980 - 11.1984] (8008-8411)BJ6#,FJ6#) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-30010
Gasket Kit, Power Steering Pump
[10.1981 - 11.1984] BJ6#,FJ6# |
04446-30010 |
— | ||
|
44302
|
44302
44302-30020
Housing Sub-Assy, Vane Pump, Front
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
44302-30020 |
— | ||
|
44302A
|
44302A
90310-21034 Seal, Oil, No.1(For Vane Pump Housing)[10.1981 - 11.1984] BJ6#,FJ6# |
90310-21034 |
US $3.58 |
||
|
44302B
|
44302B
90301-69170 Ring, O, No.1(For Vane Pump Housing)[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
90301-69170 |
US $3.93 |
||
|
44303
|
44303
44303-22011
Shaft Sub-Assy, W/rotor
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 L=39.9750-39.9775 |
44303-22011 |
— | ||
|
44303
|
44303
44303-22021
Shaft Sub-Assy, W/rotor
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 L=39.9725-39.9750 |
44303-22021 |
— | ||
|
44304
|
44304
44304-30022
Housing Sub-Assy, Vane Pump, Rear
[10.1981 - 11.1984] BJ6#,FJ6# |
44304-30022 |
— | ||
|
44305
|
44305
44305-60010
Cap Sub-Assy, Vane Pump Oil Reservoir
[10.1981 - 11.1984] BJ6# |
44305-60010 |
— | ||
|
44310
|
44310
44320-60080 Pump Assy, VaneVANE [10.1981 - 11.1984] BJ6# |
44320-60080 |
US $1,225.95 |
||
|
44311
|
44311
44311-60040
Pulley, Vane Pump
[10.1981 - 11.1984] BJ6# |
44311-60040 |
— | ||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
90280-05008 |
US $3.94 |
||
|
44325
|
44325
44325-30030
Ring, Fixed(For Vane Pump)
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 マーク １,L=39.9950-39.9975 |
44325-30030 |
— | ||
|
44325
|
44325
44325-30040
Ring, Fixed(For Vane Pump)
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 マーク ２,L=39.9975-40.0000 |
44325-30040 |
— | ||
|
44329
|
44329
44329-30010
Bolt, Vane Pump Front Housing & Rear Housing Set
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 L=76.5 |
44329-30010 |
— | ||
|
44329
|
44329
44329-30020
Bolt, Vane Pump Front Housing & Rear Housing Set
[10.1981 - 11.1984] BJ6#,FJ6# L=78.5 |
44329-30020 |
— | ||
|
44329A
|
44329A
96710-01007
Packing(For Radiator Drain Cock)
[10.1981 - 11.1981] BJ60,FJ60 |
96710-01007 |
— | ||
| replacement | |||||
|
44329A
|
44329A
96711-19007 Packing(For Radiator Drain Cock)[10.1981 - 11.1981] BJ60,FJ60 |
96711-19007 |
from US $2.09 |
||
|
44329A
|
44329A
96711-19007 Packing(For Radiator Drain Cock)[11.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
96711-19007 |
from US $2.09 |
||
|
44330
|
44330
44330-60010 Valve Assy, Flow ControlFLOW CONTROL [10.1981 - 11.1984] BJ6#,FJ6#,HJ60 MARK A |
44330-60010 |
US $168.90 |
||
|
44330
|
44330
44330-60020 Valve Assy, Flow ControlFLOW CONTROL [10.1981 - 11.1984] BJ6#,FJ6#,HJ60 MARK B |
44330-60020 |
US $168.90 |
||
|
44330
|
44330
44330-60030
Valve Assy, Flow Control
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 MARK C |
44330-60030 |
— | ||
|
44330
|
44330
44330-60040
Valve Assy, Flow Control
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 MARK D |
44330-60040 |
— | ||
|
44330
|
44330
44330-60050 Valve Assy, Flow ControlFLOW CONTROL [10.1981 - 11.1984] BJ6#,FJ6#,HJ60 MARK E |
44330-60050 |
US $168.90 |
||
|
44330
|
44330
44330-60060 Valve Assy, Flow ControlFLOW CONTROL [10.1981 - 11.1984] BJ6#,FJ6#,HJ60 MARK F |
44330-60060 |
US $168.90 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[10.1981 - 10.1986] BJ6#,FJ6#,HJ6# |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
96151-01700 |
US $3.30 |
||
|
44338
|
44338
44338-60020 Union, Pressure PortPRESSURE PORT [10.1981 - 12.1982] BJ6#,FJ6#,HJ60 |
44338-60020 |
US $14.71 |
||
|
44338A
|
44338A
96710-01014
Ring, O, No.3(For Vane Pump Housing)
[10.1981 - 11.1981] BJ60,FJ60 内径＝１４，外径＝１７ |
96710-01014 |
— | ||
| replacement | |||||
|
44338A
|
44338A
96711-19014 O-Ring[10.1981 - 11.1981] BJ60,FJ60 内径＝１４，外径＝１７ |
96711-19014 |
from US $2.19 |
||
|
44338A
|
44338A
96711-19014 O-Ring[11.1981 - 11.1984] BJ6#,FJ6#,HJ60 外径＝１７．０，内径＝１３．０ |
96711-19014 |
from US $2.19 |
||
|
44338B
|
44338B
90410-06030
Seat, Union(For Valve Body Housing)
[10.1981 - 12.1982] BJ6#,FJ6# |
90410-06030 |
— | ||
|
44341
|
44341
44341-30020
Plate, Vane Pump Side, Front
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
44341-30020 |
— | ||
|
44342
|
44342
44341-30020
Plate, Vane Pump Side, Front
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
44341-30020 |
— | ||
|
44343
|
44343
44343-12010
Seat, Flow Control Spring
[02.1982 - 10.1986] BJ6#,FJ6#,HJ6# |
44343-12010 |
— | ||
|
44343
|
44343
44343-30020
Seat, Flow Control Spring
[10.1981 - 02.1982] BJ60,FJ60 |
44343-30020 |
— | ||
|
44343A
|
44343A
96710-01014
Ring, O, No.3(For Vane Pump Housing)
[10.1981 - 11.1981] BJ60,FJ60 |
96710-01014 |
— | ||
| replacement | |||||
|
44343A
|
44343A
96711-19014 O-Ring[10.1981 - 11.1981] BJ60,FJ60 |
96711-19014 |
from US $2.19 |
||
|
44343A
|
44343A
96711-19014 O-Ring[11.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
96711-19014 |
from US $2.19 |
||
|
44344
|
44344
44344-30010
Seat, Spring(For Vane Pump)
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
44344-30010 |
— | ||
|
44345
|
44345
44307-22010
Slipper, Vane Pump
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 マーク無し,L=39.942-39.937 |
44307-22010 |
— | ||
|
44345
|
44345
44307-22020
Slipper, Vane Pump
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 マーク無し,L=39.937-39.932 |
44307-22020 |
— | ||
|
44345A
|
44345A
90501-06445
Spring, Compression(For Vane Pump Slipper)
[10.1981 - 11.1984] BJ6#,FJ6#,HJ60 |
90501-06445 |
— | ||
|
44346
|
44346
44346-30020
Plate, Snap Ring Lock
[10.1981 - 02.1982] BJ60,FJ60 |
44346-30020 |
— | ||
|
44362
|
44362
44306-60031
Reservoir, Oil(For Vane Pump)
[10.1981 - 11.1984] BJ6#,FJ6# |
44306-60031 |
— | ||
|
44362A
|
44362A
96710-01013
Ring, O(For Power Steering Suction Port)
[10.1981 - 11.1981] BJ60,FJ60 |
96710-01013 |
— | ||
| replacement | |||||
|
44362A
|
44362A
96711-19013 Ring, O(For Power Steering Suction Port)[10.1981 - 11.1981] BJ60,FJ60 |
96711-19013 |
from US $2.57 |
||
|
44362A
|
44362A
96711-19013 Ring, O(For Power Steering Suction Port)[11.1981 - 08.1987] BJ6#,FJ6# |
96711-19013 |
from US $2.57 |
||
|
44391
|
44391
44391-30020
Plate, Power Steering Oil Reservoir Caution
[10.1981 - 09.1986] BJ6#,FJ6#,HJ6# |
44391-30020 |
— | ||
|
9017012011
|
9017012011
90170-12011 Nut(For Vane Pump Pulley) |
90170-12011 |
from US $1.24 |
||
|
9020112022
|
9020112022
90201-12022 New Genuine Part |
90201-12022 |
US $1.51 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9321913005
|
9321913005
93219-13005 New Genuine Part |
93219-13005 |
US $2.34 |
||
|
9451100300
|
9451100300
94511-00300
New Genuine Part
|
94511-00300 |
— | ||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.59 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
