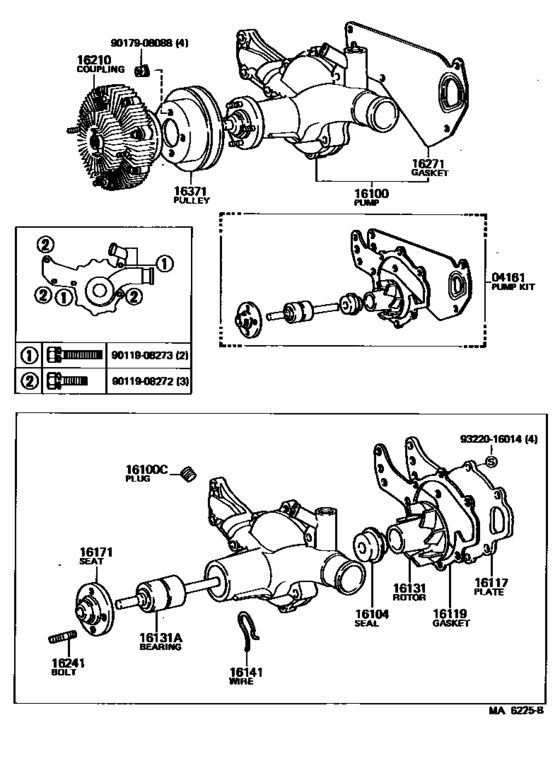

Water Pump ([08.1980 - 08.1986] (8008-8608)3B) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-56080
Pump Kit, Water
[08.1980 - 08.1986] 3B..BJ6# |
04161-56080 |
— | ||
| replacement | |||||
|
04161
|
04161
04161-56081
Pump Kit, Water
[08.1980 - 08.1986] 3B..BJ6# |
04161-56081 |
— | ||
|
16100
|
16100
16100-59105 Pump Assy, Engine Water[08.1980 - 08.1986] 3B..BJ6# |
16100-59105 |
US $265.60 |
||
|
16100C
|
16100C
15184-15010
Plug, Taper Screw(For Oil Filter Bracket)
[08.1980 - 08.1986] 3B..BJ6# |
15184-15010 |
— | ||
|
16104
|
16104
16104-52011 Seal Set, Water Pump[08.1980 - 07.1985] 3B..BJ6# |
16104-52011 |
US $66.25 |
||
| replacement | |||||
|
16104
|
16104
16104-52013
Seal Set, Water Pump
[08.1980 - 07.1985] 3B..BJ6# |
16104-52013 |
— | ||
|
16117
|
16117
16117-56040 Plate, Water Pump[08.1980 - 08.1986] 3B..BJ6# |
16117-56040 |
US $22.13 |
||
|
16119
|
16119
16119-56040
Gasket, Water Pump Body
[08.1980 - 08.1986] 3B..BJ6# |
16119-56040 |
— | ||
| replacement | |||||
|
16119
|
16119
16119-56041
Gasket, Water Pump Body
[08.1980 - 08.1986] 3B..BJ6# |
16119-56041 |
— | ||
|
16131
|
16131
16131-56040
Rotor, Water Pump
[08.1980 - 08.1986] 3B..BJ6# |
16131-56040 |
— | ||
|
16131A
|
16131A
90369-38001 Bearing, Water Pump[08.1980 - 11.1983] 3B..BJ6# |
90369-38001 |
US $44.41 |
||
|
16141
|
16141
16141-76010 Wire, Water Pump Bearing Retaining[08.1980 - 08.1986] 3B..BJ6# |
16141-76010 |
US $4.37 |
||
|
16171
|
16171
16171-61071 Seat, Water Pump Pulley[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6# |
16171-61071 |
US $15 |
||
|
16210
|
16210
16210-58011 Coupling Assy, Fluid[08.1980 - 07.1983] 3B..BJ6# |
16210-58011 |
US $511.06 |
||
| replacement | |||||
|
16210
|
16210
16210-58012 Coupling Assy, Fluid[08.1980 - 07.1983] 3B..BJ6# |
16210-58012 |
US $515.42 |
||
|
16241
|
16241
16198-41170 Bolt, Stud(For Water Pump Pulley Seat)[08.1980 - 08.1986] 3B..BJ6# |
16198-41170 |
US $3.32 |
||
|
16271
|
16271
16271-56020
Gasket, Water Pump
[08.1980 - 08.1986] 3B..BJ6# |
16271-56020 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[08.1980 - 08.1986] 3B..BJ6# |
16271-58010 |
from US $11.19 |
||
|
16371
|
16371
16371-56040
Pulley, Fan
[08.1980 - 08.1986] 3B..BJ6# |
16371-56040 |
— | ||
|
9011908272
|
9011908272
90119-08272
New Genuine Part
|
90119-08272 |
— | ||
| replacement | |||||
|
9011908272
|
9011908272
91643-80845 New Genuine Part |
91643-80845 |
US $2.51 |
||
|
9011908273
|
9011908273
90119-08273
New Genuine Part
|
90119-08273 |
— | ||
| replacement | |||||
|
9011908273
|
9011908273
91643-80865 New Genuine Part |
91643-80865 |
US $2.51 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.65 |
||
