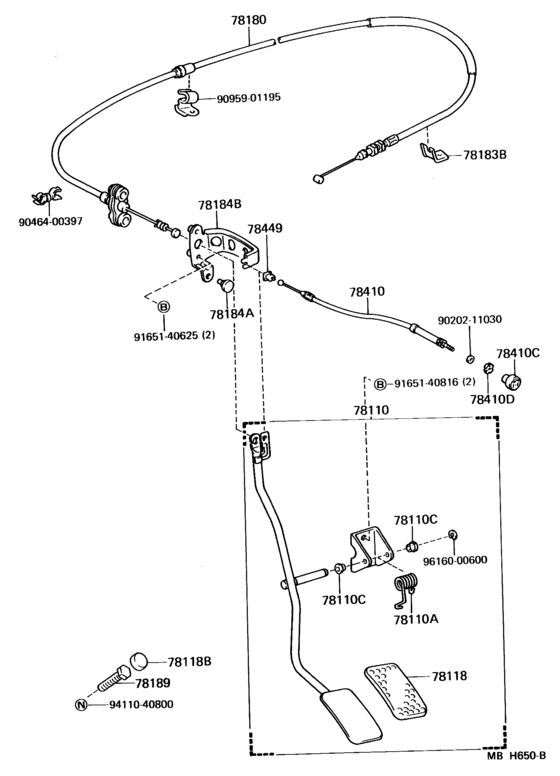

Accelerator Link ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- U.S.A.
- Frame
- BJ70
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-90K02
Rod Assy, Accelerator Pedal
[11.1984 - 07.1987] BJ70 |
78120-90K02 |
— | ||
|
78110A
|
78110A
90508-29017 Spring (For Accelerator Pedal Rod)[11.1984 - 07.1987] BJ70 |
90508-29017 |
US $2.97 |
||
|
78110C
|
78110C
90386-08155 Bush (For Accelerator Pedal Rod)[11.1984 - 07.1987] BJ70 |
90386-08155 |
US $1.14 |
||
|
78118
|
78118
78111-95110 Pedal, Accelerator[11.1984 - 07.1987] BJ70 |
78111-95110 |
from US $7.52 |
||
|
78118B
|
78118B
78118-90K00
Stopper, Accelerator Pedal
[11.1984 - 07.1987] BJ70 |
78118-90K00 |
— | ||
| replacement | |||||
|
78118B
|
78118B
45619-14010 Cover, Knuckle Stopper[11.1984 - 07.1987] BJ70 |
45619-14010 |
US $8.64 |
||
|
78180
|
78180
78180-90K10
Wire Assy, Accelerator
[11.1984 - 07.1987] BJ70 |
78180-90K10 |
— | ||
|
78183B
|
78183B
78183-90A00
Clamp, Accelerator Control Cable
[11.1984 - 07.1987] BJ70 |
78183-90A00 |
— | ||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[11.1984 - 07.1987] BJ70 |
90541-06008 |
from US $1.60 |
||
|
78184B
|
78184B
78184-90K01
Bracket, Accelerator Control Cable
[11.1984 - 07.1987] BJ70 |
78184-90K01 |
— | ||
|
78189
|
78189
91131-50835 Bolt(For Clutch Pedal Stopper)[11.1984 - 07.1987] BJ70 |
91131-50835 |
US $2.62 |
||
|
78410
|
78410
78410-90K01 Cable Assy, Throttle ControlTHROTTLE CONTROL [11.1984 - 07.1987] BJ70 |
78410-90K01 |
from US $36.35 |
||
|
78410C
|
78410C
78411-90K00
Knob, Throttle Cable
[11.1984 - 07.1987] BJ70 |
78411-90K00 |
— | ||
| replacement | |||||
|
78410C
|
78410C
78411-60030 Knob, Throttle Control Cable[11.1984 - 07.1987] BJ70 |
78411-60030 |
from US $8.52 |
||
|
78410D
|
78410D
90179-11007 Nut, Throttle[11.1984 - 07.1987] BJ70 |
90179-11007 |
from US $2.08 |
||
|
78449
|
78449
78449-90300
Guide, Throttle Wire
[11.1984 - 06.1985] BJ70 |
78449-90300 |
— | ||
|
9020211030
|
9020211030
90202-11030 WASHERPLATE |
90202-11030 |
US $1.92 |
||
|
9046400397
|
9046400397
90464-00397 New Genuine Part |
90464-00397 |
US $3.35 |
||
|
9095901195
|
9095901195
90959-01195
New Genuine Part
|
90959-01195 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
