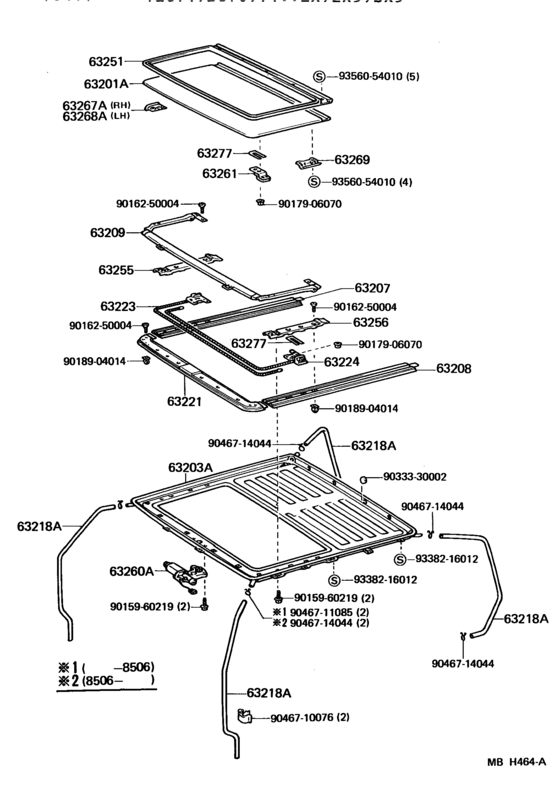

Roof Panel & Back Panel ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- U.S.A.
- Frame
- BJ70
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201A
|
63201A
63201-30010
Panel Sub-Assy, Sliding Roof Or Removable Roof
[11.1984 - 07.1987] BJ70 |
63201-30010 |
— | ||
|
63203A
|
63203A
63203-90K00 Housing Sub-Assy, Sliding Roof Or Removable Roof[11.1984 - 06.1985] BJ70 |
63203-90K00 |
US $569.30 |
||
|
63203A
|
63203A
63250-90K00 Housing Sub-Assy, Sliding Roof Or Removable Roof[06.1985 - 07.1987] BJ70 |
63250-90K00 |
US $573.66 |
||
|
63207
|
63207
63207-22010 Rail Sub-Assy, Sliding Roof Guide, Rh[11.1984 - 07.1987] BJ70 |
63207-22010 |
US $107.74 |
||
|
63208
|
63208
63208-22010 Rail Sub-Assy, Sliding Roof Guide, Lh[11.1984 - 07.1987] BJ70 |
63208-22010 |
US $107.74 |
||
|
63209
|
63209
63209-30010 Panel Sub-Assy, Roof Wind Deflector[11.1984 - 04.1985] BJ70 |
63209-30010 |
US $214.03 |
||
|
63209
|
63209
63209-90A01 Panel Sub-Assy, Roof Wind Deflector[04.1985 - 07.1987] BJ70 |
63209-90A01 |
US $204.42 |
||
|
63218A
|
63218A
63249-90K00 Hose(For Sliding Roof Or Removable Roof Drain)[11.1984 - 06.1985] BJ70 FR |
63249-90K00 |
US $17.91 |
||
|
63218A
|
63218A
63249-90K01 Hose(For Sliding Roof Or Removable Roof Drain)[11.1984 - 06.1985] BJ70 RR |
63249-90K01 |
US $15.72 |
||
| replacement | |||||
|
63218A
|
63218A
63249-90A01
Hose(For Sliding Roof Or Removable Roof Drain)
[11.1984 - 06.1985] BJ70 RR |
63249-90A01 |
— | ||
|
63218A
|
63218A
63249-90K02 Hose(For Sliding Roof Or Removable Roof Drain)[06.1985 - 10.1985] BJ70 FR |
63249-90K02 |
US $15.87 |
||
| replacement | |||||
|
63218A
|
63218A
63249-90A01
Hose(For Sliding Roof Or Removable Roof Drain)
[06.1985 - 10.1985] BJ70 FR |
63249-90A01 |
— | ||
|
63218A
|
63218A
63249-90K03 Hose(For Sliding Roof Or Removable Roof Drain)[10.1985 - 07.1987] BJ70 FR |
63249-90K03 |
US $24.46 |
||
|
63221
|
63221
63221-22010
Casing, Sliding Roof Cable Guide
[11.1984 - 07.1987] BJ70 |
63221-22010 |
— | ||
|
63223
|
63223
63223-30010
Cable, Sliding Roof Drive, Rh
[11.1984 - 07.1987] BJ70 |
63223-30010 |
— | ||
|
63224
|
63224
63224-30010
Cable, Sliding Roof Drive, Lh
[11.1984 - 07.1987] BJ70 |
63224-30010 |
— | ||
|
63251
|
63251
63251-30010
Weatherstrip, Sliding Roof Panel Or Removable Roof
[11.1984 - 07.1987] BJ70 |
63251-30010 |
— | ||
|
63255
|
63255
63255-22020 Cover, Sliding Roof Guide Rail, Rh[11.1984 - 07.1987] BJ70 |
63255-22020 |
US $24.32 |
||
|
63256
|
63256
63255-22020 Cover, Sliding Roof Guide Rail, Rh[11.1984 - 07.1987] BJ70 |
63255-22020 |
US $24.32 |
||
|
63260A
|
63260A
63260-90A02
Gear Sub-Assy, Sliding Roof Drive
[11.1984 - 10.1985] BJ70 |
63260-90A02 |
— | ||
| replacement | |||||
|
63260A
|
63260A
63260-60040
Gear Sub-Assy, Sliding Roof Drive
[11.1984 - 10.1985] BJ70 |
63260-60040 |
— | ||
|
63260A
|
63260A
63260-90A03 Gear Sub-Assy, Sliding Roof Drive[10.1985 - 07.1987] BJ70 |
63260-90A03 |
US $717.81 |
||
|
63261
|
63261
63261-22010
Shoe, Sliding Roof, Front
[11.1984 - 07.1987] BJ70 |
63261-22010 |
— | ||
|
63267A
|
63267A
63267-30010
Protector, Sliding Roof Weatherstrip
[11.1984 - 07.1987] BJ70 |
63267-30010 |
— | ||
|
63268A
|
63268A
63268-30010
Protector, Sliding Roof Weatherstrip
[11.1984 - 07.1987] BJ70 |
63268-30010 |
— | ||
|
63269
|
63269
63269-30010
Retainer, Sliding Roof Weatherstrip
[11.1984 - 07.1987] BJ70 |
63269-30010 |
— | ||
|
63277
|
63277
63277-14020
Shim, Sliding Roof Rail
[11.1984 - 07.1987] BJ70 48X28,T=1.0 |
63277-14020 |
— | ||
|
63277
|
63277
63277-30010 Shim, Sliding Roof Rail[11.1984 - 07.1987] BJ70 73X28,T=1.0 |
63277-30010 |
US $3.64 |
||
|
9015960219
|
9015960219
90159-60219
New Genuine Part
|
90159-60219 |
— | ||
|
9016250004
|
9016250004
90162-50004
New Genuine Part
|
90162-50004 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.03 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9046710076
|
9046710076
90467-10076 Clip |
90467-10076 |
US $1.46 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.86 |
||
|
9046714044
|
9046714044
90467-14044 Clip(For Clutch Reservoir Tube) |
90467-14044 |
US $1.46 |
||
| replacement | |||||
|
9046714044
|
9046714044
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
|
9338216012
|
9338216012
93382-16012 New Genuine Part |
93382-16012 |
US $0.52 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
