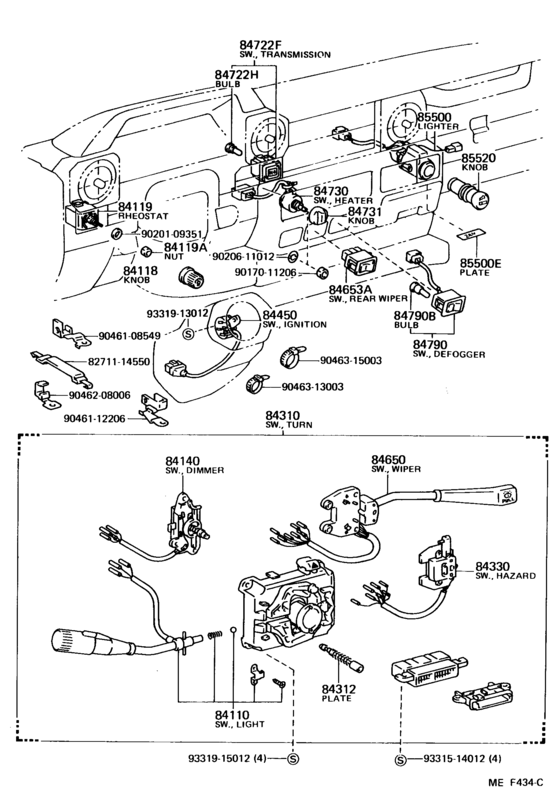

Switch & Relay & Computer ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- U.S.A.
- Frame
- BJ70
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-69355 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [11.1984 - 07.1987] BJ70 |
84112-69355 |
from US $76.96 |
||
|
84118
|
84118
84118-90A00
Knob, Light Control Rheostat
[11.1984 - 07.1987] BJ70 |
84118-90A00 |
— | ||
|
84119
|
84119
84119-90K00
Rheostat, Light Control
[11.1984 - 10.1985] BJ70 |
84119-90K00 |
— | ||
|
84119
|
84119
84119-90K02 Rheostat, Light ControlLIGHT CONTROL [10.1985 - 07.1987] BJ70 |
84119-90K02 |
US $126.67 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[11.1984 - 07.1987] BJ70 |
90170-09167 |
— | ||
|
84140
|
84140
84140-69105 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [11.1984 - 07.1987] BJ70 |
84140-69105 |
US $56.88 |
||
|
84310
|
84310
84310-60570
Switch Assy, Turn Signal
[11.1984 - 07.1987] BJ70 |
84310-60570 |
— | ||
|
84312
|
84312
84312-32010 Plate, Horn Contact[11.1984 - 07.1987] BJ70 |
84312-32010 |
from US $8.13 |
||
|
84330
|
84330
84332-69115
Switch Assy, Hazard Warning Signal
[11.1984 - 07.1987] BJ70 |
84332-69115 |
— | ||
|
84450
|
84450
84450-60130 Switch Assy, Ignition Or StarterIGNITION OR STARTER [11.1984 - 07.1987] BJ70 |
84450-60130 |
US $75.71 |
||
|
84650
|
84650
84652-69445 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1984 - 07.1987] BJ70 |
84652-69445 |
from US $128.13 |
||
|
84653A
|
84653A
84653-22010
Switch, Rear Wiper
[11.1984 - 07.1987] BJ70 |
84653-22010 |
— | ||
|
84722F
|
84722F
84722-60050 Switch, Transmission Control[11.1984 - 08.1986] BJ70 |
84722-60050 |
from US $72.19 |
||
|
84722F
|
84722F
84722-60060 Switch, Transmission Control[08.1986 - 07.1987] BJ70 |
84722-60060 |
US $73.56 |
||
|
84722H
|
84722H
84999-10170 Bulb, Indicator Lamp[11.1984 - 07.1987] BJ70 12V 1.12W |
84999-10170 |
US $7.04 |
||
|
84730
|
84730
84732-90K01 Switch Assy, Heater BlowerHEATER BLOWER [11.1984 - 07.1987] BJ70 |
84732-90K01 |
US $59.06 |
||
|
84731
|
84731
84731-12010 Knob, Heater Blower Switch[11.1984 - 07.1987] BJ70 |
84731-12010 |
from US $6.81 |
||
|
84790
|
84790
84790-90K01
Switch Assy, Rear Window Defogger
[11.1984 - 10.1985] BJ70 |
84790-90K01 |
— | ||
|
84790
|
84790
84790-90K02 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [10.1985 - 07.1987] BJ70 |
84790-90K02 |
US $60.28 |
||
|
84790B
|
84790B
84999-10110 Bulb, Indicator Lamp[11.1984 - 10.1985] BJ70 12V 1.12W |
84999-10110 |
US $7.20 |
||
|
85500
|
85500
85500-12190
Lighter Assy, Cigarette
[11.1984 - 10.1985] BJ70 |
85500-12190 |
— | ||
|
85500
|
85500
85500-90K06 Lighter Assy, CigaretteCIGARETTE [10.1985 - 07.1987] BJ70 |
85500-90K06 |
US $66.68 |
||
|
85500E
|
85500E
74534-90K00 Plate, Fog Lamp Switch Caution, No.2[10.1985 - 07.1987] BJ70 |
74534-90K00 |
US $3.20 |
||
|
85520
|
85520
85520-14030 Knob And Element Assy, Cigarette Lighter[11.1984 - 10.1985] BJ70 |
85520-14030 |
US $32.61 |
||
| replacement | |||||
|
85520
|
85520
85520-17020 Knob And Element Assy, Cigarette Lighter[11.1984 - 10.1985] BJ70 |
85520-17020 |
from US $22.05 |
||
|
85520
|
85520
85520-95400 Knob And Element Assy, Cigarette Lighter[10.1985 - 07.1987] BJ70 |
85520-95400 |
US $22.65 |
||
|
8271114550
|
8271114550
82711-14550
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-14550 |
— | ||
|
9017011206
|
9017011206
90170-11206 Nut, Heater Blower Switch |
90170-11206 |
US $2.62 |
||
|
9020109351
|
9020109351
90201-09351
New Genuine Part
|
90201-09351 |
— | ||
|
9020611012
|
9020611012
90206-11012 WASHER |
90206-11012 |
US $1.31 |
||
|
9046108549
|
9046108549
90461-08549 New Genuine Part |
90461-08549 |
US $7.28 |
||
|
9046112206
|
9046112206
90461-12206 New Genuine Part |
90461-12206 |
US $6.55 |
||
|
9046208006
|
9046208006
90462-08006 Clamp,(For Ignition Switch Wire) |
90462-08006 |
US $7.28 |
||
| replacement | |||||
|
9046208006
|
9046208006
82711-37250
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37250 |
— | ||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331913012
|
9331913012
93319-13012 New Genuine Part |
93319-13012 |
US $1.75 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
