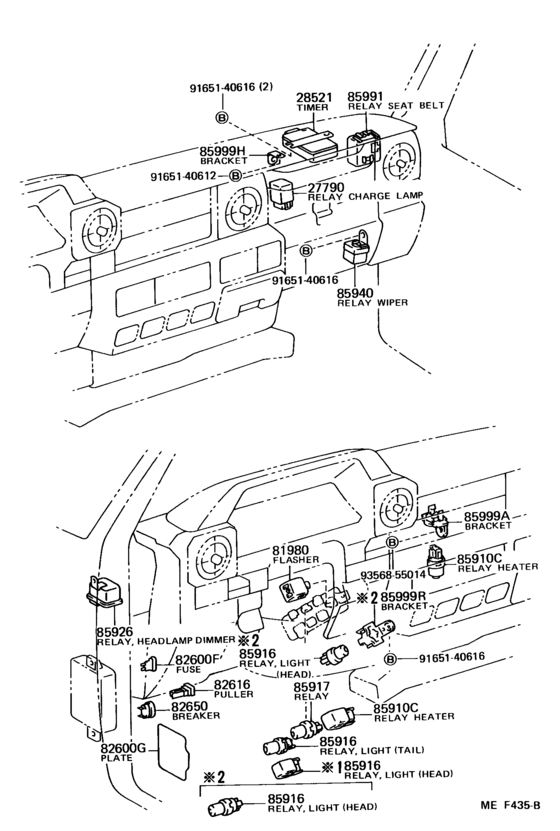

Switch & Relay & Computer ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- U.S.A.
- Frame
- BJ70
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-13010
Relay Assy, Charge Lamp
[11.1984 - 10.1985] 3B..BJ70 |
27790-13010 |
— | ||
|
27790
|
27790
27790-57010
Relay Assy, Charge Lamp
[10.1985 - 07.1987] 3B..BJ70 |
27790-57010 |
— | ||
|
28521
|
28521
28521-57051
Timer, Preheating
[08.1986 - 07.1987] 3B..BJ70 |
28521-57051 |
— | ||
|
28521
|
28521
28521-57060 Timer, PreheatingPREHEATING [11.1984 - 10.1985] 3B..BJ70 |
28521-57060 |
US $633.36 |
||
| replacement | |||||
|
28521
|
28521
28521-57062 Timer, PreheatingPREHEATING [11.1984 - 10.1985] 3B..BJ70 |
28521-57062 |
US $634.82 |
||
|
28521
|
28521
28521-57061 Timer, PreheatingPREHEATING [10.1985 - 08.1986] 3B..BJ70 |
28521-57061 |
US $633.36 |
||
| replacement | |||||
|
28521
|
28521
28521-57062 Timer, PreheatingPREHEATING [10.1985 - 08.1986] 3B..BJ70 |
28521-57062 |
US $634.82 |
||
|
81980
|
81980
81980-22070
Flasher Assy, Turn Signal
[11.1984 - 10.1985] BJ70 |
81980-22070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[11.1984 - 10.1985] BJ70 |
81980-16010 |
US $121.36 |
||
|
81980
|
81980
81980-36060 Flasher Assy, Turn Signal[10.1985 - 07.1987] BJ70 |
81980-36060 |
US $116.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[11.1984 - 07.1987] BJ70 10A,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[11.1984 - 07.1987] BJ70 15A,15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[11.1984 - 07.1987] BJ70 20A,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[11.1984 - 07.1987] BJ70 7.5A,7.5A |
90982-09005 |
from US $1.09 |
||
|
82600G
|
82600G
82683-90K00
Plate, Caution(For Fuse)
[11.1984 - 10.1985] BJ70 |
82683-90K00 |
— | ||
|
82600G
|
82600G
82683-90K06
Plate, Caution(For Fuse)
[10.1985 - 08.1986] BJ70 |
82683-90K06 |
— | ||
|
82600G
|
82600G
82683-90K12 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [08.1986 - 07.1987] BJ70 |
82683-90K12 |
US $4.08 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[11.1984 - 07.1987] BJ70 |
82616-12010 |
from US $3.04 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[11.1984 - 07.1987] BJ70 30A,30A |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[11.1984 - 07.1987] BJ70 20A,20A |
82650-35010 |
US $18 |
||
|
85910C
|
85910C
85913-30020
Relay, Ignition, No.1
[11.1984 - 10.1985] BJ70 FR HEATER |
85913-30020 |
— | ||
|
85910C
|
85910C
85913-90K00 Relay Assy (For Heater Blower Motor)[10.1985 - 07.1987] BJ70 FR HEATER |
85913-90K00 |
US $64.60 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[11.1984 - 10.1985] BJ70 RR HEATER |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [11.1984 - 10.1985] BJ70 RR HEATER |
909870200483 |
US $53.75 |
||
|
85910C
|
85910C
90987-02005 Relay, Ignition, No.1[10.1985 - 07.1987] BJ70 RR HEATER |
90987-02005 |
US $34.66 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[11.1984 - 10.1985] BJ70 TAIL |
90987-01003 |
from US $35.26 |
||
|
85916
|
85916
90987-01004 Relay, Heater Pump[10.1985 - 07.1987] BJ70 TAIL |
90987-01004 |
US $32.38 |
||
|
85916
|
85916
90987-02005 Relay, Ignition, No.1[10.1985 - 07.1987] BJ70 HEAD |
90987-02005 |
US $34.66 |
||
|
85916
|
85916
90987-02006 Relay[11.1984 - 10.1985] BJ70 HEAD |
90987-02006 |
from US $30.99 |
||
|
85917
|
85917
90987-03001 Relay[11.1984 - 08.1986] BJ70 |
90987-03001 |
from US $31.32 |
||
|
85917
|
85917
90987-03002 Relay, Turbo Indicator[08.1986 - 07.1987] BJ70 |
90987-03002 |
US $20.67 |
||
|
85926
|
85926
85926-60010
Relay, Headlamp Dimmer
[10.1985 - 07.1987] BJ70 |
85926-60010 |
— | ||
|
85940
|
85940
85940-90K01
Relay Assy, Windshield Wiper
[11.1984 - 10.1985] BJ70 |
85940-90K01 |
— | ||
|
85940
|
85940
85940-90K03
Relay Assy, Windshield Wiper
[10.1985 - 07.1987] BJ70 |
85940-90K03 |
— | ||
|
85991
|
85991
85991-12050 Relay, Seat Belt WarningSEAT BELT WARNING [11.1984 - 10.1985] BJ70 |
85991-12050 |
US $126.67 |
||
|
85991
|
85991
85991-90K01 Relay, Seat Belt WarningSEAT BELT WARNING [10.1985 - 07.1987] BJ70 |
85991-90K01 |
US $145.60 |
||
|
85999A
|
85999A
85999-12050
Bracket, Main Relay
[11.1984 - 07.1987] BJ70 |
85999-12050 |
— | ||
|
85999H
|
85999H
85999-89101 Bracket Sub-Assy, Flasher[11.1984 - 07.1987] BJ70 |
85999-89101 |
US $2.77 |
||
|
85999R
|
85999R
85999-12050
Bracket, Main Relay
[10.1985 - 07.1987] BJ70 |
85999-12050 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
