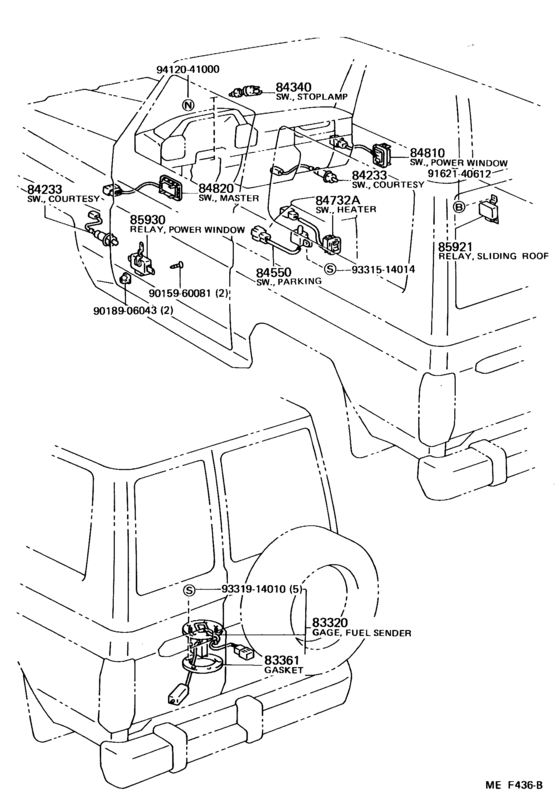

Switch & Relay & Computer ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- U.S.A.
- Frame
- BJ70
- ENGINE
- 3B
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-69025 Gage Assy, Fuel Sender[11.1984 - 07.1987] BJ70 |
83320-69025 |
from US $82.76 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[11.1984 - 02.1985] BJ70 |
83361-20030 |
from US $2.55 |
||
|
84233
|
84233
84230-22051
Switch Assy, Courtesy Lamp (For Front Door)
[11.1984 - 07.1987] BJ70 |
84230-22051 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[11.1984 - 07.1987] BJ70 |
84231-28010 |
from US $16.26 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[08.1986 - 07.1987] BJ70 MATSUSHITA |
84340-30030 |
from US $28.78 |
||
|
84340
|
84340
84340-32010
Switch Assy, Stop Lamp
[11.1984 - 08.1986] BJ70 |
84340-32010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[11.1984 - 08.1986] BJ70 |
84340-30030 |
from US $28.78 |
||
|
84550
|
84550
84550-24010
Switch Assy, Brake Warning Test
[11.1984 - 07.1987] BJ70 |
84550-24010 |
— | ||
|
84732A
|
84732A
84732-90K04 Switch, Rear Heater Blower[11.1984 - 07.1987] BJ70 |
84732-90K04 |
US $54.69 |
||
|
84810
|
84810
84810-90K00-03
Switch Assy, Power Window Regulator
[11.1984 - 08.1986] BJ70 GRAY,SHADOW GRAY |
84810-90K00-03 |
— | ||
|
84810
|
84810
84810-90K00-06
Switch Assy, Power Window Regulator
[11.1984 - 08.1986] BJ70 BROWN,SEPIA BROWN |
84810-90K00-06 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-90K00-03
Switch Assy, Power Window Regulator
[11.1984 - 08.1986] BJ70 BROWN,SEPIA BROWN |
84810-90K00-03 |
— | ||
|
84820
|
84820
84820-90K01-03
Master Switch Assy, Power Window Regulator
[11.1984 - 10.1985] BJ70 GRAY,SHADOW GRAY |
84820-90K01-03 |
— | ||
|
84820
|
84820
84820-90K01-06
Master Switch Assy, Power Window Regulator
[11.1984 - 10.1985] BJ70 BROWN,SEPIA BROWN |
84820-90K01-06 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-90K01-03
Master Switch Assy, Power Window Regulator
[11.1984 - 10.1985] BJ70 BROWN,SEPIA BROWN |
84820-90K01-03 |
— | ||
|
84820
|
84820
84820-90K04-03
Master Switch Assy, Power Window Regulator
[10.1985 - 08.1986] BJ70 GRAY,SHADOW GRAY |
84820-90K04-03 |
— | ||
|
84820
|
84820
84820-90K04-06
Master Switch Assy, Power Window Regulator
[10.1985 - 08.1986] BJ70 BROWN,SEPIA BROWN |
84820-90K04-06 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-90K04-03
Master Switch Assy, Power Window Regulator
[10.1985 - 08.1986] BJ70 BROWN,SEPIA BROWN |
84820-90K04-03 |
— | ||
|
85921
|
85921
85921-90A00 Relay, Sliding Roof Control[11.1984 - 10.1985] BJ70 |
85921-90A00 |
US $366.91 |
||
|
85921
|
85921
85921-90A01 Relay, Sliding Roof Control[10.1985 - 07.1987] BJ70 |
85921-90A01 |
US $368.37 |
||
|
85930
|
85930
85930-90K03
Relay Assy, Power Window
[10.1985 - 08.1986] BJ70 |
85930-90K03 |
— | ||
| replacement | |||||
|
85930
|
85930
85930-60020
Relay Assy, Power Window
[10.1985 - 08.1986] BJ70 |
85930-60020 |
— | ||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9018906043
|
9018906043
90189-06043 CLIP |
90189-06043 |
from US $0.74 |
||
|
9162140612
|
9162140612
91621-40612 BOLT W-WASHER |
91621-40612 |
from US $0.80 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $1.02 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
