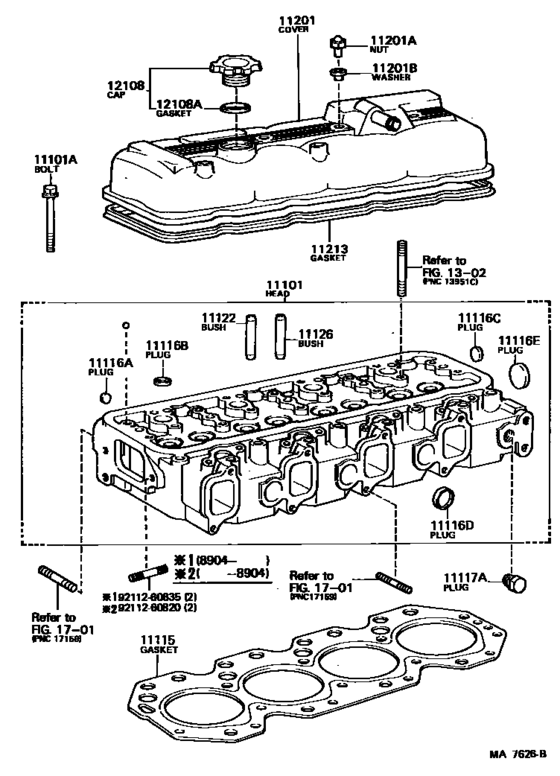

Cylinder Head ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58030
Head Sub-Assy, Cylinder
[10.1985 - 08.1988] 13BT..BJ71 |
11101-58030 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-58031
Head Sub-Assy, Cylinder
[10.1985 - 08.1988] 13BT..BJ71 |
11101-58031 |
— | ||
|
11101
|
11101
11101-58031
Head Sub-Assy, Cylinder
[08.1988 -] 13BT..BJ71 |
11101-58031 |
— | ||
|
11101A
|
11101A
90105-12180
Bolt(For Cylinder Head Set)
[08.1988 - 01.1990] 13BT..BJ71 *12-1.25PX119-25 |
90105-12180 |
— | ||
|
11101A
|
11101A
90910-02046 Bolt(For Cylinder Head Set)[11.1984 - 08.1988] 13BT,3B..BJ7# *12-1.25PX119-25 |
90910-02046 |
from US $8.53 |
||
|
11115
|
11115
11115-58050
Gasket, Cylinder Head
[10.1985 - 01.1990] 13BT..BJ71 T=1.60 |
11115-58050 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58110 Gasket, Cylinder Head[10.1985 - 01.1990] 13BT..BJ71 T=1.60 |
11115-58110 |
from US $97.62 |
||
|
11116A
|
11116A
96411-41200 Plug, Tight, No.1[09.1985 - 08.1988] 13BT,3B..BJ7# OD=12 |
96411-41200 |
US $3.58 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[09.1985 - 08.1988] 13BT,3B..BJ7# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
90331-21001 Plug, Tight, No.3[11.1984 - 01.1990] 13BT,3B..BJ7# OD=21 |
90331-21001 |
US $3.23 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[09.1985 - 01.1990] 13BT,3B..BJ7# OD=28 |
96411-42800 |
from US $2.81 |
||
|
11116E
|
11116E
90331-40024
Plug, Tight, No.5
[11.1984 - 11.1987] 13BT,3B..BJ7# OD=40 |
90331-40024 |
— | ||
| replacement | |||||
|
11116E
|
11116E
96411-44000 Plug, Tight, No.1[11.1984 - 11.1987] 13BT,3B..BJ7# OD=40 |
96411-44000 |
from US $3.93 |
||
|
11116E
|
11116E
96411-44000 Plug, Tight, No.1[11.1987 - 01.1990] 13BT,3B..BJ7# OD=40 |
96411-44000 |
from US $3.93 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[11.1984 - 01.1990] 13BT,3B..BJ7# |
90345-54005 |
from US $3.80 |
||
|
11122
|
11122
11122-56021
Bush, Intake Valve Guide
[11.1984 - 08.1988] 13BT,3B..BJ7# STD |
11122-56021 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[11.1984 - 08.1988] 13BT,3B..BJ7# STD |
11122-56030 |
from US $7.05 |
||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[08.1988 - 01.1990] 13BT,3B..BJ7# STD |
11122-56030 |
from US $7.05 |
||
|
11126
|
11126
11122-56021
Bush, Intake Valve Guide
[11.1984 - 08.1988] 13BT,3B..BJ7# STD |
11122-56021 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-56030 Bush, Intake Valve Guide[11.1984 - 08.1988] 13BT,3B..BJ7# STD |
11122-56030 |
from US $7.05 |
||
|
11126
|
11126
11122-56030 Bush, Intake Valve Guide[08.1988 - 01.1990] 13BT,3B..BJ7# STD |
11122-56030 |
from US $7.05 |
||
|
11201
|
11201
11201-56090 Cover Sub-Assy, Cylinder Head[10.1985 - 01.1990] 13BT..BJ71 |
11201-56090 |
US $200.93 |
||
|
11201A
|
11201A
11295-46010
Nut, Cap(For Cylinder Head Cover)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
11295-46010 |
— | ||
|
11201B
|
11201B
90210-12001 Washer, Seal(For Cylinder Head Cover)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90210-12001 |
US $12.01 |
||
|
11213
|
11213
11213-58010
Gasket, Cylinder Head Cover
[10.1985 - 01.1990] 13BT..BJ71 |
11213-58010 |
— | ||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[09.1985 - 01.1990] 13BT,3B..BJ7#; 22R#..RJ7# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1985 - 01.1990] 13BT,3B..BJ7#; 22R#..RJ7# |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[11.1984 - 01.1990] 13BT,3B..BJ7#; 2L#..LJ7#; 22R#..RJ7# |
90430-37140 |
from US $1.14 |
||
|
9211260820
|
9211260820
92112-60820 Bolt, Stud(For Manifold To Carburetor) |
92112-60820 |
US $2.33 |
||
|
9211260835
|
9211260835
92112-60835 Bolt, Stud(For Cylinder Head Cover Set) |
92112-60835 |
US $3.40 |
||
