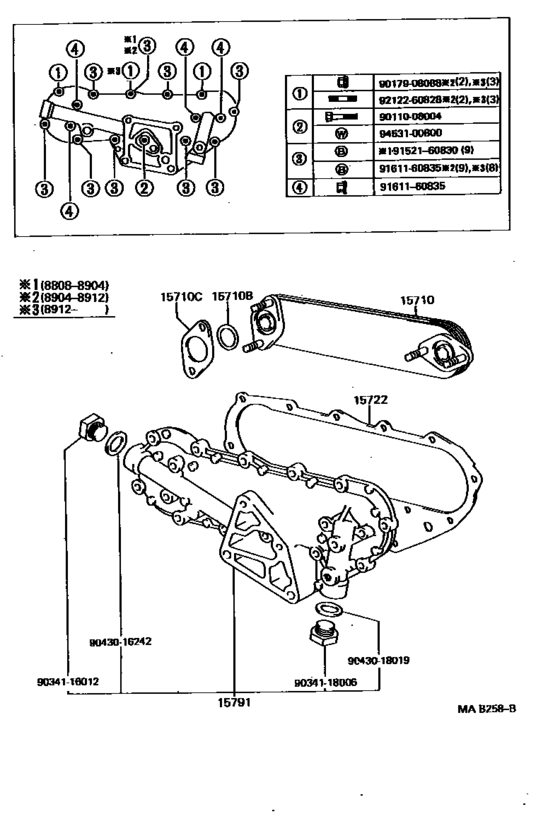

Engine Oil Cooler ([08.1988 - ] (8808- )13BT,3B) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-56051
Cooler Assy, Oil
[10.1985 - 01.1990] 13BT..BJ71 |
15710-56051 |
— | ||
|
15710B
|
15710B
90301-20001 Ring, O(For Oil Cooler)[11.1984 - 01.1990] 13BT,3B..BJ7# |
90301-20001 |
from US $3.80 |
||
|
15710C
|
15710C
90923-05014
Gasket(For Oil Cooler)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90923-05014 |
— | ||
| replacement | |||||
|
15710C
|
15710C
90923-05018 Gasket(For Oil Cooler)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90923-05018 |
from US $4.48 |
||
|
15722
|
15722
15725-56011
Gasket, Oil Cooler
[11.1984 - 08.1988] 13BT,3B..BJ7# |
15725-56011 |
— | ||
| replacement | |||||
|
15722
|
15722
15725-56020 Gasket, Oil Cooler[11.1984 - 08.1988] 13BT,3B..BJ7# |
15725-56020 |
from US $7.18 |
||
|
15791
|
15791
15701-58010
Case, Oil Cooler
[10.1985 - 01.1990] 13BT..BJ71 |
15701-58010 |
— | ||
|
9011008004
|
9011008004
90110-08004 New Genuine Part |
90110-08004 |
US $4.19 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9034116012
|
9034116012
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.66 |
||
|
9034118006
|
9034118006
90341-18006 Plug (No magnet) |
90341-18006 |
from US $3.23 |
||
|
9043016242
|
9043016242
90430-16242 Gasket, W/head Straight Screw Plug |
90430-16242 |
from US $0.80 |
||
|
9043018019
|
9043018019
90430-18019 New Genuine Part |
90430-18019 |
US $1.16 |
||
|
9152160830
|
9152160830
91521-60830
New Genuine Part
|
91521-60830 |
— | ||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9212260828
|
9212260828
92122-60828 New Genuine Part |
92122-60828 |
US $3.05 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
