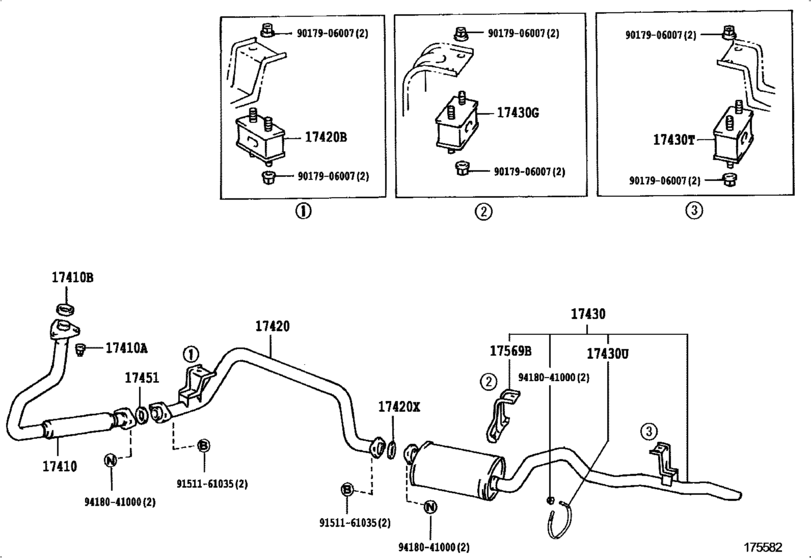

Exhaust Pipe ([11.1984 - ] (8411- )13BT,3B..BJ70,71,73) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-58110 Pipe Assy, Exhaust, Front[10.1985 - 01.1990] 13BT..BJ71 |
17401-58110 |
US $211.41 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06005
Gasket, Exhaust Pipe
[10.1985 - 01.1990] 3B..BJ73..VM; 13BT,2LT..BJ71,LJ7# |
90917-06005 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[10.1985 - 01.1990] 3B..BJ73..VM; 13BT,2LT..BJ71,LJ7# |
90917-06042 |
from US $4.50 |
||
|
17420
|
17420
17403-58080
Pipe Assy, Exhaust, Center
[10.1985 - 08.1988] 13BT..BJ71; 3B..BJ73..VM |
17403-58080 |
— | ||
|
17420B
|
17420B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 13BT,3B,2L#..BJ7#,LJ7# |
17567-61030 |
from US $14.29 |
||
|
17420X
|
17420X
90917-06024
Gasket, Exhaust Pipe, Center
[11.1984 - 01.1990] 13BT,3B..BJ71,75 |
90917-06024 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[11.1984 - 01.1990] 13BT,3B..BJ71,75 |
90917-06073 |
from US $8.06 |
||
|
17430
|
17430
17430-58240 Pipe Assy, Exhaust, Tail[10.1985 - 08.1988] 13BT..BJ71 |
17430-58240 |
US $509.60 |
||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
17567-61030 |
from US $14.29 |
||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
17567-61030 |
from US $14.29 |
||
|
17430U
|
17430U
17504-61020
Clamp No.1, Exhaust Tail Pipe (For Rear)
[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ70,71,73,LJ7#,RJ7# |
17504-61020 |
— | ||
|
17451
|
17451
90917-06024
Gasket, Exhaust Pipe, Center
[10.1985 - 01.1990] 13BT..BJ71; 3B..BJ73..VM |
90917-06024 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06073 Gasket, Exhaust Pipe, Center[10.1985 - 01.1990] 13BT..BJ71; 3B..BJ73..VM |
90917-06073 |
from US $8.06 |
||
|
17569B
|
17569B
17569-61020
Stay, Exhaust Pipe Support, No.2
[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ70,71,73,LJ7#,RJ7# |
17569-61020 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
