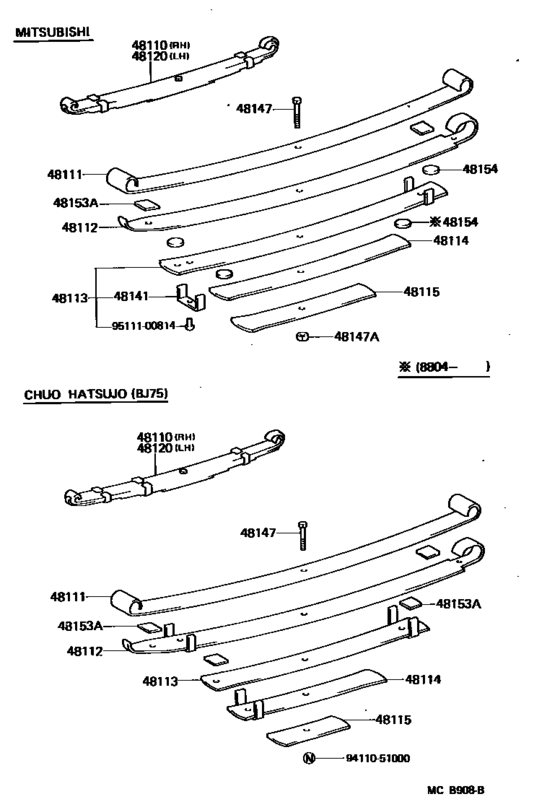

Front Spring & Shock Absorber ([11.1984 - ] (8411-8808)BJ75 ; (8411- )BJ70,71,73) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48110
|
48110
48110-60231 Spring Assy, Front, Rh[10.1985 - 04.1988] BJ70,71,73..LX,STD |
48110-60231 |
US $503.78 |
||
| replacement | |||||
|
48110
|
48110
48110-60440 Spring Assy, Front, RhFRONT, RH [10.1985 - 04.1988] BJ70,71,73..LX,STD |
48110-60440 |
US $496.50 |
||
|
48110
|
48110
48110-60241 Spring Assy, Front, Rh[10.1985 - 04.1988] BJ70,71,73..LX,STD W/WINCH |
48110-60241 |
US $490.67 |
||
| replacement | |||||
|
48110
|
48110
48110-60450 Spring Assy, Front, RhFRONT, RH [10.1985 - 04.1988] BJ70,71,73..LX,STD W/WINCH |
48110-60450 |
US $511.06 |
||
|
48110
|
48110
48110-60440 Spring Assy, Front, RhFRONT, RH [04.1988 - 01.1990] BJ70,71,73..LX,STD |
48110-60440 |
US $496.50 |
||
|
48110
|
48110
48110-60450 Spring Assy, Front, RhFRONT, RH [04.1988 - 01.1990] BJ70,71,73..LX,STD W/WINCH |
48110-60450 |
US $511.06 |
||
|
48111
|
48111
48111-60230 Leaf, Front Spring, No.1[10.1985 - 01.1990] BJ70,71,73..LX,STD |
48111-60230 |
US $171.81 |
||
|
48112
|
48112
48112-60230 Leaf, Front Spring, No.2[10.1985 - 01.1990] BJ70,71,73..LX,STD |
48112-60230 |
US $142.69 |
||
|
48113
|
48113
48102-60230 Leaf, Front Spring, No.3[11.1984 - 04.1988] BJ70,71,73..LX,STD |
48102-60230 |
US $110.66 |
||
| replacement | |||||
|
48113
|
48113
48102-60241 Leaf, Front Spring, No.3[11.1984 - 04.1988] BJ70,71,73..LX,STD |
48102-60241 |
US $110.66 |
||
|
48113
|
48113
48102-60241 Leaf, Front Spring, No.3[10.1985 - 04.1988] BJ70,71,73..LX,STD W/WINCH |
48102-60241 |
US $110.66 |
||
|
48113
|
48113
48102-60440 Leaf, Front Spring, No.3[04.1988 - 01.1990] BJ70,71,73..LX,STD |
48102-60440 |
US $113.57 |
||
|
48113
|
48113
48102-60450 Leaf, Front Spring, No.3[04.1988 - 01.1990] BJ70,71,73..LX,STD W/WINCH |
48102-60450 |
US $133.95 |
||
|
48114
|
48114
48114-60230 Leaf, Front Spring, No.4[11.1984 - 04.1988] BJ70,71,73..LX,STD |
48114-60230 |
US $62.17 |
||
|
48114
|
48114
48114-60241 Leaf, Front Spring, No.4[10.1985 - 04.1988] BJ70,71,73..LX,STD W/WINCH |
48114-60241 |
US $56.06 |
||
|
48114
|
48114
48114-60440 Leaf, Front Spring, No.4[04.1988 - 01.1990] BJ70,71,73..LX,STD |
48114-60440 |
US $56.35 |
||
|
48114
|
48114
48114-60450 Leaf, Front Spring, No.4[04.1988 - 01.1990] BJ70,71,73..LX,STD W/WINCH |
48114-60450 |
US $58.82 |
||
|
48115
|
48115
48115-60230 Leaf, Front Spring, No.5[11.1984 - 01.1990] BJ70,71,73..LX,STD |
48115-60230 |
US $33.20 |
||
|
48115
|
48115
48115-60241 Leaf, Front Spring, No.5[10.1985 - 01.1990] BJ70,71,73..LX,STD W/WINCH |
48115-60241 |
US $22.71 |
||
|
48120
|
48120
48110-60231 Spring Assy, Front, Rh[10.1985 - 04.1988] BJ70,71,73..LX,STD |
48110-60231 |
US $503.78 |
||
| replacement | |||||
|
48120
|
48120
48110-60440 Spring Assy, Front, RhFRONT, RH [10.1985 - 04.1988] BJ70,71,73..LX,STD |
48110-60440 |
US $496.50 |
||
|
48120
|
48120
48110-60241 Spring Assy, Front, Rh[10.1985 - 04.1988] BJ70,71,73..LX,STD W/WINCH |
48110-60241 |
US $490.67 |
||
| replacement | |||||
|
48120
|
48120
48110-60450 Spring Assy, Front, RhFRONT, RH [10.1985 - 04.1988] BJ70,71,73..LX,STD W/WINCH |
48110-60450 |
US $511.06 |
||
|
48120
|
48120
48110-60440 Spring Assy, Front, RhFRONT, RH [04.1988 - 01.1990] BJ70,71,73..LX,STD |
48110-60440 |
US $496.50 |
||
|
48120
|
48120
48110-60450 Spring Assy, Front, RhFRONT, RH [04.1988 - 01.1990] BJ70,71,73..LX,STD W/WINCH |
48110-60450 |
US $511.06 |
||
|
48141
|
48141
48141-60062
Clip, Front Spring, No.1
[11.1984 - 08.1988] BJ7#..LX,STD |
48141-60062 |
— | ||
|
48141
|
48141
48141-60440
Clip, Front Spring, No.1
[08.1988 - 01.1990] BJ70,71,73..LX,STD |
48141-60440 |
— | ||
|
48147
|
48147
48289-60010 Bolt, Front Spring, Center[11.1984 - 08.1988] BJ7#..LX,STD MITSUBISHI |
48289-60010 |
from US $10.87 |
||
|
48147A
|
48147A
48284-60062 Nut, Front Spring Center Bolt[11.1984 - 08.1988] BJ7#..LX,STD |
48284-60062 |
from US $3.94 |
||
|
48153A
|
48153A
48153-60230 Silencer, Front Spring, No.1[11.1984 - 08.1988] BJ7# MITSUBISHI |
48153-60230 |
US $5.91 |
||
|
48154
|
48154
48154-60230 Silencer, Front Spring, No.2[11.1984 - 08.1988] BJ7# |
48154-60230 |
from US $2.55 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9511100814
|
9511100814
95111-00814
New Genuine Part
|
95111-00814 |
— | ||
