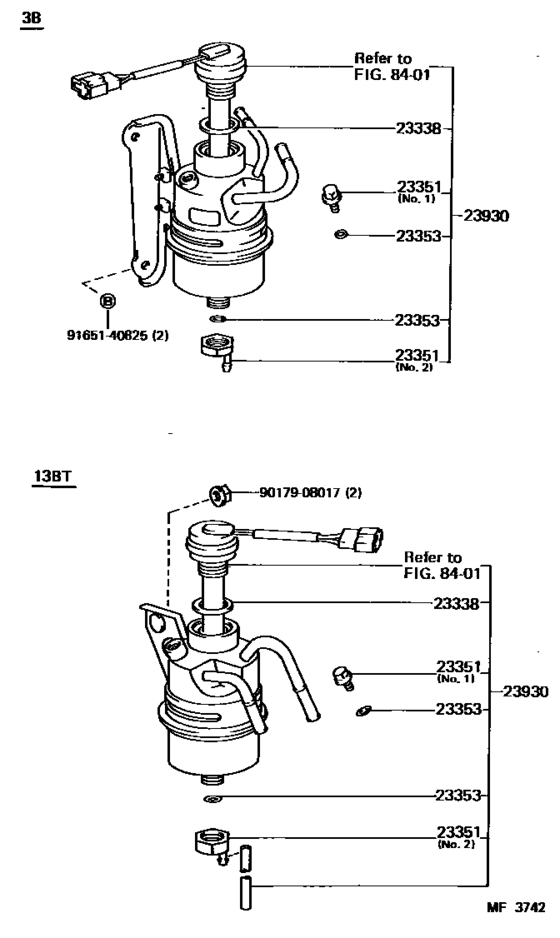

Fuel Filter ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23338
|
23338
23338-54010 Gasket(For Warning Switch)[11.1984 - 08.1988] 13BT,3B..BJ7#..LX,STD W/SEDIMENTER |
23338-54010 |
US $3.32 |
||
|
23351
|
23351
23323-56010 Plug, Air VentAIR VENT [11.1984 - 08.1988] 13BT,3B..BJ7#..LHD..(LX,STD) W/SEDIMENTER,NO.2 |
23323-56010 |
US $12.38 |
||
|
23351
|
23351
23351-54010 Plug, Air Vent[11.1984 - 08.1988] 13BT,3B..BJ7#..LX,STD W/SEDIMENTER,NO.1 |
23351-54010 |
US $3.49 |
||
|
23351
|
23351
47547-12030 Plug, Air Vent[11.1984 - 08.1988] 13BT,3B..BJ7#..LX,STD FILTER |
47547-12030 |
from US $4.60 |
||
|
23353
|
23353
23353-54010 Ring, O(For Air Vent Plug)[11.1984 - 08.1988] 13BT,3B..BJ7#..LX,STD W/SEDIMENTER |
23353-54010 |
US $4.12 |
||
|
23930
|
23930
23930-58060 Sedimenter Assy, FuelFUEL [10.1985 - 01.1990] 13BT..BJ71 |
23930-58060 |
US $192.19 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.67 |
