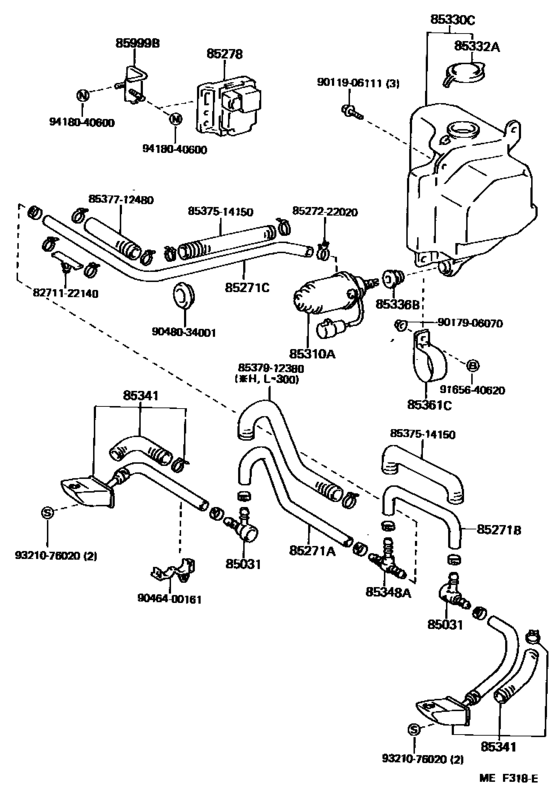

Headlamp Cleaner ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031
|
85031
85031-30020 Valve, Headlamp Cleaner Washer Hose[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX) |
85031-30020 |
from US $32.66 |
||
|
85271A
|
85271A
85376-12510
Hose, Headlamp Cleaner, No.2
[11.1984 - 01.1990] BJ7#..LX,STD |
85376-12510 |
— | ||
|
85271B
|
85271B
85343-87702 Hose, Headlamp Cleaner, No.1[11.1984 - 01.1990] BJ7#..LX,STD |
85343-87702 |
from US $16.89 |
||
|
85278
|
85278
85276-90K00 Relay, Cleaner ControlCLEANER CONTROL [11.1984 - 01.1990] BJ7#..LX,STD |
85276-90K00 |
US $205.30 |
||
|
85310A
|
85310A
85310-90K00 Motor And Pump Assy, Headlamp Cleaner Washer[11.1984 - 01.1990] BJ7#..LX,STD 24V |
85310-90K00 |
US $313.04 |
||
|
85330C
|
85330C
85330-90K12 Jar Assy, Headlamp Cleaner Washer[07.1986 - 01.1990] BJ7#..LX,STD |
85330-90K12 |
US $99.01 |
||
|
85332A
|
85332A
85332-90A00 Cap Assy, Windshield Washer[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX) |
85332-90A00 |
US $6.99 |
||
|
85336B
|
85336B
85336-10010 Bush, Windshield Washer Jar[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX) |
85336-10010 |
from US $3.61 |
||
|
85341
|
85341
85044-90K00 Nozzle, Headlamp Cleaner Washer[11.1984 - 01.1990] BJ7#..LX,STD RH |
85044-90K00 |
US $69.38 |
||
|
85341
|
85341
85045-90K00 Nozzle, Headlamp Cleaner Washer[11.1984 - 01.1990] BJ7#..LX,STD LH |
85045-90K00 |
US $106.60 |
||
|
85348A
|
85348A
85352-12010 Joint, Headlamp Cleaner Hose, No.1[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX) |
85352-12010 |
from US $5.72 |
||
|
85361C
|
85361C
85361-90K00 Bracket, Washer[11.1984 - 01.1990] BJ7#..LX,STD |
85361-90K00 |
US $10.05 |
||
|
85999B
|
85999B
85999-90K00 Bracket, Headlamp Cleaner Relay[11.1984 - 01.1990] BJ7#..LX,STD |
85999-90K00 |
US $6.99 |
||
|
8271122140
|
8271122140
82711-22140 Wire, Fuse To Fuse(for Combustion Heater) |
82711-22140 |
US $3.84 |
||
|
8527222020
|
8527222020
85272-22020
Clamp, Headlamp Cleaner, No.1
|
85272-22020 |
— | ||
| replacement | |||||
|
8527222020
|
8527222020
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.77 |
||
|
8537514150
|
8537514150
85375-14150 Hose, Headlamp Cleaner, No.3 |
85375-14150 |
US $4.37 |
||
| replacement | |||||
|
8537514150
|
8537514150
85276-60180 Protector, Headlamp Cleaner Hose, No.3 |
85276-60180 |
US $4.22 |
||
|
8537712480
|
8537712480
85377-12480 Protector, Headlamp Cleaner Hose, No.1 |
85377-12480 |
US $8.01 |
||
|
8537912380
|
8537912380
85379-12380 Joint |
85379-12380 |
US $8.88 |
||
| replacement | |||||
|
8537912380
|
8537912380
85276-60080 Relay, Cleaner Control |
85276-60080 |
US $9.03 |
||
|
9011906111
|
9011906111
90119-06111
Bolt
|
90119-06111 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9046400161
|
9046400161
90464-00161 New Genuine Part |
90464-00161 |
US $3.40 |
||
|
9048034001
|
9048034001
90480-34001
New Genuine Part
|
90480-34001 |
— | ||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9321076020
|
9321076020
93210-76020 New Genuine Part |
93210-76020 |
US $1.60 |
||
| replacement | |||||
|
9321076020
|
9321076020
93210-86020 New Genuine Part |
93210-86020 |
US $0.93 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
