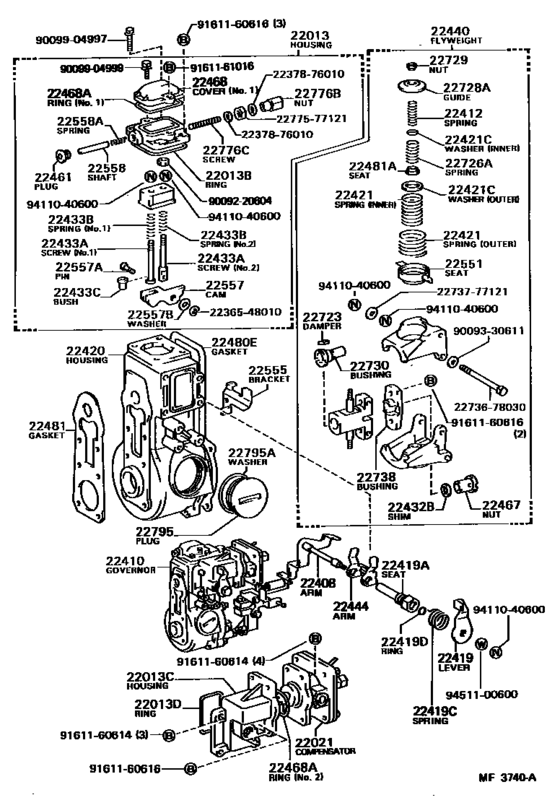

Mechanical Governor ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22013
|
22013
22021-58270
Compensator Sub-Assy, Boost
[10.1985 - 01.1990] 13BT..BJ71 |
22021-58270 |
— | ||
|
22013B
|
22013B
90099-14081
Ring, O(For Fullroad Stopper Housing)
[10.1985 - 01.1990] 13BT..BJ71 |
90099-14081 |
— | ||
| replacement | |||||
|
22013B
|
22013B
S2284-72690 Ring, O(For Fullroad Stopper Housing, No.2)[10.1985 - 01.1990] 13BT..BJ71 |
S2284-72690 |
US $2.97 |
||
|
22013C
|
22013C
22559-58271
Housing, Fullroad Stopper, No.2
[10.1985 - 01.1990] 13BT..BJ71 |
22559-58271 |
— | ||
|
22013D
|
22013D
90099-14002 Ring, O(For Fullroad Stopper Housing, No.2)[10.1985 - 01.1990] 13BT..BJ71 |
90099-14002 |
US $7.13 |
||
|
22021
|
22021
22021-58360
Compensator Sub-Assy, Boost
[10.1985 - 01.1990] 13BT..BJ71 |
22021-58360 |
— | ||
|
22408
|
22408
22408-58270
Arm, Stopper
[10.1985 - 01.1990] 13BT..BJ71 |
22408-58270 |
— | ||
|
22410
|
22410
22410-58360 Governor Assy, Injection Pump Mechanical[10.1985 - 01.1990] 13BT..BJ71 |
22410-58360 |
US $2,431.52 |
||
|
22412
|
22412
22412-78030
Spring, Mechanical Governor
[10.1985 - 01.1990] 13BT..BJ71 |
22412-78030 |
— | ||
|
22419
|
22419
22419-58270
Lever, Stop
[10.1985 - 01.1990] 13BT..BJ71 |
22419-58270 |
— | ||
|
22419A
|
22419A
22468-58270
Seat, Return Spring(For Stopper Arm)
[10.1985 - 01.1990] 13BT..BJ71 |
22468-58270 |
— | ||
|
22419C
|
22419C
22432-78050
Spring, Return(For Stopper Lever)
[10.1985 - 01.1990] 13BT..BJ71 |
22432-78050 |
— | ||
|
22419D
|
22419D
90099-14080
Ring, O(For Stopper Lever)
[10.1985 - 01.1990] 13BT..BJ71 |
90099-14080 |
— | ||
|
22420
|
22420
22017-58270
Housing Sub-Assy, Mechanical Governor
[10.1985 - 01.1990] 13BT..BJ71 |
22017-58270 |
— | ||
|
22421
|
22421
22768-58230
Spring, Idling
[10.1985 - 01.1990] 13BT..BJ71 INNER |
22768-58230 |
— | ||
|
22421
|
22421
22768-78031
Spring, Idling
[10.1985 - 01.1990] 13BT..BJ71 OUTER |
22768-78031 |
— | ||
|
22421C
|
22421C
22737-78030
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.20,OUTER,T=0.2 |
22737-78030 |
— | ||
|
22421C
|
22421C
22737-78031
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.40,OUTER,T=0.4 |
22737-78031 |
— | ||
|
22421C
|
22421C
22737-78032
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.60,OUTER,T=0.6 |
22737-78032 |
— | ||
|
22421C
|
22421C
22737-78033
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.40,INNER,T=0.4 |
22737-78033 |
— | ||
|
22421C
|
22421C
22737-78034
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.60,INNER,T=0.6 |
22737-78034 |
— | ||
|
22421C
|
22421C
22737-78035
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.50,OUTER,T=0.5 |
22737-78035 |
— | ||
|
22421C
|
22421C
22737-78036
Washer, Idling Spring
[10.1985 - 01.1990] 13BT..BJ71 T=0.55,INNER,T=0.55 |
22737-78036 |
— | ||
|
22432B
|
22432B
22713-58230
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.60,T=1.60 |
22713-58230 |
— | ||
|
22432B
|
22432B
22713-58231
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.65,T=1.65 |
22713-58231 |
— | ||
|
22432B
|
22432B
22713-58232
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.70,T=1.70 |
22713-58232 |
— | ||
|
22432B
|
22432B
22713-58233
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.75,T=1.75 |
22713-58233 |
— | ||
|
22432B
|
22432B
22713-58234
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.80,T=1.80 |
22713-58234 |
— | ||
|
22432B
|
22432B
22713-58235
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.85,T=1.85 |
22713-58235 |
— | ||
|
22432B
|
22432B
22713-58236
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.90,T=1.90 |
22713-58236 |
— | ||
|
22432B
|
22432B
22713-58237
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=1.95,T=1.95 |
22713-58237 |
— | ||
|
22432B
|
22432B
22713-58238
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=2.00,T=2.00 |
22713-58238 |
— | ||
|
22432B
|
22432B
22713-58239
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=2.10,T=2.10 |
22713-58239 |
— | ||
|
22432B
|
22432B
22714-58230
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=2.20,T=2.20 |
22714-58230 |
— | ||
|
22432B
|
22432B
22714-58231
Shim
[10.1985 - 01.1990] 13BT..BJ71 T=2.30,T=2.30 |
22714-58231 |
— | ||
|
22433A
|
22433A
22433-58270
Screw, Adapter(For Sliding Block)
[10.1985 - 01.1990] 13BT..BJ71 NO.1 |
22433-58270 |
— | ||
|
22433A
|
22433A
22433-58271
Screw, Adapter(For Sliding Block)
[10.1985 - 01.1990] 13BT..BJ71 NO.2 |
22433-58271 |
— | ||
|
22433B
|
22433B
22411-58270
Spring(For Adapter Screw)
[10.1985 - 01.1990] 13BT..BJ71 NO.2 |
22411-58270 |
— | ||
|
22433B
|
22433B
22411-78030
Spring(For Adapter Screw)
[10.1985 - 01.1990] 13BT..BJ71 NO.1 |
22411-78030 |
— | ||
|
22433C
|
22433C
22554-78030
Screw, Adapter(For Sliding Block)
[10.1985 - 01.1990] 13BT..BJ71 |
22554-78030 |
— | ||
|
22440
|
22440
22720-58230
Flyweight Sub-Assy
[10.1985 - 01.1990] 13BT..BJ71 |
22720-58230 |
— | ||
|
22444
|
22444
22428-58270
Lever Assy(For Pneumatic Bellows)
[10.1985 - 01.1990] 13BT..BJ71 |
22428-58270 |
— | ||
|
22461
|
22461
22129-78030
Plug, Screw
[10.1985 - 01.1990] 13BT..BJ71 FULL ROAD STOPPER HOUSING |
22129-78030 |
— | ||
|
22461
|
22461
22446-78030
Plug, Screw
[10.1985 - 01.1990] 13BT..BJ71 GOVERNOR COVER |
22446-78030 |
— | ||
|
22467
|
22467
22722-58230
Nut, Round
[10.1985 - 01.1990] 13BT..BJ71 |
22722-58230 |
— | ||
|
22468
|
22468
22458-58270
Cover, Plate
[10.1985 - 01.1990] 13BT..BJ71 NO.1 |
22458-58270 |
— | ||
|
22468
|
22468
22458-78030
Cover, Plate
[10.1985 - 01.1990] 13BT..BJ71 NO.2 |
22458-78030 |
— | ||
|
22468A
|
22468A
90099-14039
Ring, O(For Fullroad Stopper Housing)
[10.1985 - 01.1990] 13BT..BJ71 NO.1 |
90099-14039 |
— | ||
| replacement | |||||
|
22468A
|
22468A
22442-5C360
Ring, O(For Fullroad Stopper Housing)
[10.1985 - 01.1990] 13BT..BJ71 NO.1 |
22442-5C360 |
— | ||
|
22468A
|
22468A
90099-14069
O, Ring
[10.1985 - 01.1990] 13BT..BJ71 NO.2 |
90099-14069 |
— | ||
|
22480E
|
22480E
22774-58270
Gasket, Governor Cover
[11.1985 - 01.1990] 13BT..BJ71 |
22774-58270 |
— | ||
|
22481
|
22481
22442-78030
Gasket(For Governor Housing)
[10.1985 - 01.1990] 13BT..BJ71 |
22442-78030 |
— | ||
|
22481A
|
22481A
22481-58230
Seat, Spring, Inner
[10.1985 - 01.1990] 13BT..BJ71 |
22481-58230 |
— | ||
|
22551
|
22551
22551-78030
Seat, Spring(For Flyweight)
[10.1985 - 01.1990] 13BT..BJ71 |
22551-78030 |
— | ||
|
22555
|
22555
22555-78030
Bracket, Stopper
[10.1985 - 01.1990] 13BT..BJ71 |
22555-78030 |
— | ||
|
22557
|
22557
22557-58270
Cam, Full Stop
[10.1985 - 01.1990] 13BT..BJ71 |
22557-58270 |
— | ||
|
22557A
|
22557A
22423-78030
Pin, Connecting(For Full Stop Cam)
[10.1985 - 01.1990] 13BT..BJ71 |
22423-78030 |
— | ||
|
22557B
|
22557B
90093-30610
Washer, Plate(For Connecting Pin)
[10.1985 - 01.1990] 13BT..BJ71 T=0.20,T=0.20 |
90093-30610 |
— | ||
|
22557B
|
22557B
90099-01334
Washer, Plate(For Connecting Pin)
[10.1985 - 01.1990] 13BT..BJ71 T=0.05,T=0.05 |
90099-01334 |
— | ||
|
22557B
|
22557B
90099-01505
Washer, Plate(For Connecting Pin)
[10.1985 - 01.1990] 13BT..BJ71 T=0.10,T=0.10 |
90099-01505 |
— | ||
|
22558
|
22558
22558-78030
Shaft, Sliding Block
[10.1985 - 01.1990] 13BT..BJ71 |
22558-78030 |
— | ||
|
22558A
|
22558A
22411-58271
Spring(For Adapter Screw)
[10.1985 - 01.1990] 13BT..BJ71 |
22411-58271 |
— | ||
|
22723
|
22723
22723-68150
Damper, Flyweight Holder
[08.1987 - 01.1990] 13BT..BJ71 |
22723-68150 |
— | ||
|
22723
|
22723
22723-78030
Damper, Flyweight Holder
[06.1986 - 08.1987] 13BT..BJ71 |
22723-78030 |
— | ||
| replacement | |||||
|
22723
|
22723
22723-68150
Damper, Flyweight Holder
[06.1986 - 08.1987] 13BT..BJ71 |
22723-68150 |
— | ||
|
22726A
|
22726A
22726-58230
Spring, Speed Control
[10.1985 - 01.1990] 13BT..BJ71 |
22726-58230 |
— | ||
|
22728A
|
22728A
22728-78030
Guide, Return Spring
[10.1985 - 01.1990] 13BT..BJ71 |
22728-78030 |
— | ||
| replacement | |||||
|
22728A
|
22728A
22728-78031
Guide, Spring
[10.1985 - 01.1990] 13BT..BJ71 |
22728-78031 |
— | ||
|
22729
|
22729
22729-78030
Nut, Adjusting(For Flyweight)
[10.1985 - 01.1990] 13BT..BJ71 |
22729-78030 |
— | ||
|
22730
|
22730
22730-58230 Bushing Assy, Camshaft[10.1985 - 01.1990] 13BT..BJ71 |
22730-58230 |
US $81.59 |
||
|
22738
|
22738
22738-78030
Bushing, Guide(For Flyweight)
[10.1985 - 01.1990] 13BT..BJ71 |
22738-78030 |
— | ||
|
22776B
|
22776B
22437-58230
Nut, Cap(For Screw Stopper)
[10.1985 - 01.1990] 13BT..BJ71 |
22437-58230 |
— | ||
|
22776C
|
22776C
22776-58270
Screw, Stopper
[10.1985 - 01.1990] 13BT..BJ71 |
22776-58270 |
— | ||
|
22795
|
22795
22795-77121
Plug, Screw
[11.1985 - 01.1990] 13BT..BJ71 |
22795-77121 |
— | ||
|
22795A
|
22795A
22561-78030
Washer, Screw Plug
[10.1985 - 01.1990] 13BT..BJ71 |
22561-78030 |
— | ||
|
2236548010
|
2236548010
22365-48010
Ring, E(For Injection Pump Lever)
|
22365-48010 |
— | ||
| replacement | |||||
|
2236548010
|
2236548010
22421-47030
Washer, Plate(For Connecting Pin)
|
22421-47030 |
— | ||
|
2237876010
|
2237876010
22378-76010
Washer, Drain Screw
|
22378-76010 |
— | ||
| replacement | |||||
|
2237876010
|
2237876010
22113-77090
Washer, Drain Screw
|
22113-77090 |
— | ||
|
2273678030
|
2273678030
22736-78030
Bolt, Bellcrank
|
22736-78030 |
— | ||
|
2273777121
|
2273777121
22737-77121
Washer, Idling Spring
|
22737-77121 |
— | ||
|
2277577121
|
2277577121
22775-77121
Nut, Rock
|
22775-77121 |
— | ||
|
9009220604
|
9009220604
90092-20604
Nut, Wire Adjusting, No.1
|
90092-20604 |
— | ||
| replacement | |||||
|
9009220604
|
9009220604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9009330611
|
9009330611
90093-30611
Washer, Plate(For Connecting Pin)
|
90093-30611 |
— | ||
|
9009904997
|
9009904997
90099-04997
New Genuine Part
|
90099-04997 |
— | ||
|
9009904999
|
9009904999
90099-04999
New Genuine Part
|
90099-04999 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.65 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
