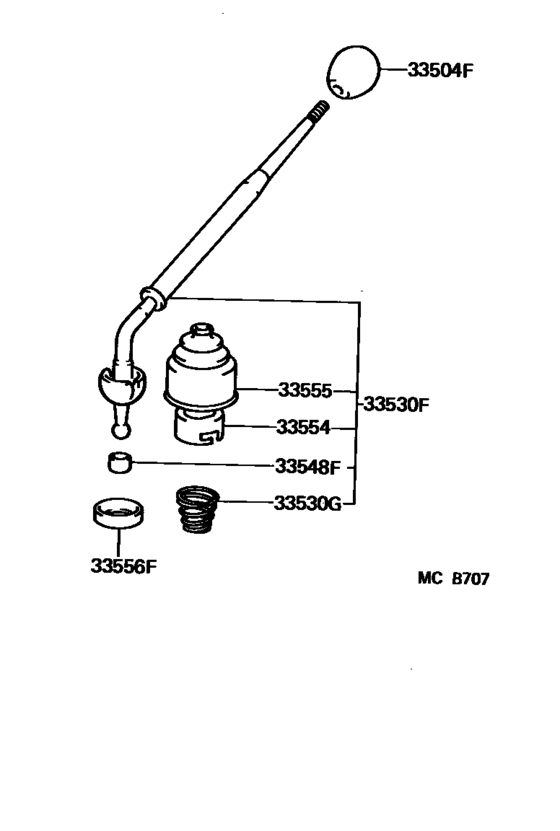

Shift Lever & Retainer ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-60060
Knob Sub-Assy, Shift Lever
[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..HT W/URETHANE STEERING WHEEL |
33504-60060 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..HT W/URETHANE STEERING WHEEL |
33504-24010-C1 |
from US $31.42 |
||
|
33530F
|
33530F
33530-60100
Lever Assy, Shift (For Floor Shift)
[11.1984 - 01.1990] BJ7#..LHD |
33530-60100 |
— | ||
|
33530G
|
33530G
90502-29001
Spring, Conical (For Shift Lever)
[11.1984 - 01.1990] BJ7# |
90502-29001 |
— | ||
| replacement | |||||
|
33530G
|
33530G
90502-29002 Spring, Conical (For Shift Lever)[11.1984 - 01.1990] BJ7# |
90502-29002 |
from US $5.83 |
||
|
33548F
|
33548F
33548-60020 Bush, No.1, Shift Lever (For Floor Shift)[11.1984 - 01.1990] BJ7# |
33548-60020 |
from US $3.36 |
||
|
33554
|
33554
33554-60021 Cap, Shift Lever[11.1984 - 01.1990] BJ7# |
33554-60021 |
from US $20.48 |
||
|
33555
|
33555
33555-55011 Boot, Shift Lever[11.1984 - 01.1990] BJ7# |
33555-55011 |
from US $10.20 |
||
|
33556F
|
33556F
33505-60011 Seat Sub-Assy, Shift Lever[10.1985 - 01.1990] BJ7# |
33505-60011 |
from US $14.23 |
||
