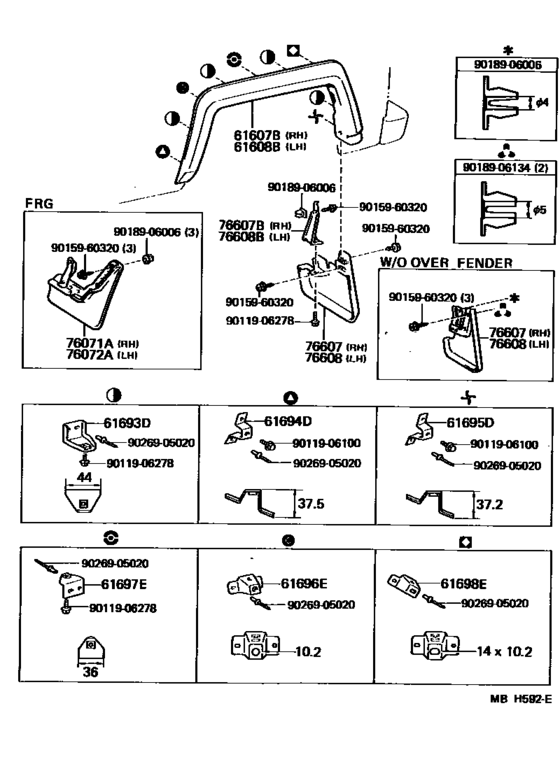

Side Member ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61607B
|
61607B
61607-90K00
Extension Sub-Assy, Rear Wheel Opening, Rh
[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
61607-90K00 |
— | ||
|
61608B
|
61608B
61608-90K00
Extension Sub-Assy, Rear Wheel Opening, Lh
[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
61608-90K00 |
— | ||
|
61693D
|
61693D
61693-90K01 Bracket, Rear Wheel Opening, No.1[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
61693-90K01 |
from US $4.66 |
||
|
61694D
|
61694D
61694-90K00 Bracket, Rear Wheel Opening, No.2[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# RH |
61694-90K00 |
from US $7.17 |
||
|
61694D
|
61694D
61696-90K00 Bracket, Rear Wheel Opening, No.2 Lh[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# LH |
61696-90K00 |
from US $7.17 |
||
|
61695D
|
61695D
61695-90K01 Bracket, Rear Wheel Opening, No.3[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# RH |
61695-90K01 |
from US $6.45 |
||
|
61695D
|
61695D
61697-90K02 Bracket, Rear Wheel Opening, No.3 Lh[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# LH |
61697-90K02 |
from US $6.45 |
||
|
61696E
|
61696E
53861-90K00 Bracket, Front Wheel Opening, No.1[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
53861-90K00 |
from US $5.56 |
||
|
61697E
|
61697E
53865-90K00 Bracket, Front Wheel Opening, No.3[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
53865-90K00 |
from US $3.58 |
||
|
61698E
|
61698E
53872-90K00 Bracket, Front Wheel Opening, No.8[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
53872-90K00 |
from US $4.12 |
||
|
76607
|
76607
76607-90K00
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
76607-90K00 |
— | ||
| replacement | |||||
|
76607
|
76607
76607-60290 Mudguard Sub-Assy, Quarter Panel, Rear Rh[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
76607-60290 |
from US $49.22 |
||
|
76607
|
76607
76607-90K01
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# W/OVER FENDER |
76607-90K01 |
— | ||
| replacement | |||||
|
76607
|
76607
76650-60010
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# W/OVER FENDER |
76650-60010 |
— | ||
|
76607B
|
76607B
76645-90K01 Bracket, Quarter Panel Rear Mudguard, Rh[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
76645-90K01 |
from US $9.98 |
||
|
76608
|
76608
76608-90K00
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
76608-90K00 |
— | ||
| replacement | |||||
|
76608
|
76608
76608-60290 Mudguard Sub-Assy, Quarter Panel, Rear Lh[11.1984 - 01.1990] BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
76608-60290 |
from US $49.22 |
||
|
76608
|
76608
76608-90K01
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# W/OVER FENDER |
76608-90K01 |
— | ||
| replacement | |||||
|
76608
|
76608
76660-60020
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# W/OVER FENDER |
76660-60020 |
— | ||
|
76608B
|
76608B
76646-90K01 Bracket, Quarter Panel Rear Mudguard, Lh[10.1985 - 08.1986] BJ70,71,73,LJ7#,RJ7# |
76646-90K01 |
from US $9.65 |
||
|
9011906100
|
9011906100
90119-06100 BOLT |
90119-06100 |
from US $1.08 |
||
|
9011906278
|
9011906278
90119-06278 BOLT |
90119-06278 |
from US $0.89 |
||
|
9015960320
|
9015960320
90159-60320
New Genuine Part
|
90159-60320 |
— | ||
| replacement | |||||
|
9015960320
|
9015960320
90159-60510 Screw with washer |
90159-60510 |
from US $0.74 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9018906134
|
9018906134
90189-06134 GROMMET |
90189-06134 |
from US $0.95 |
||
|
9026905020
|
9026905020
90269-05020 PIN |
90269-05020 |
from US $1.08 |
||
