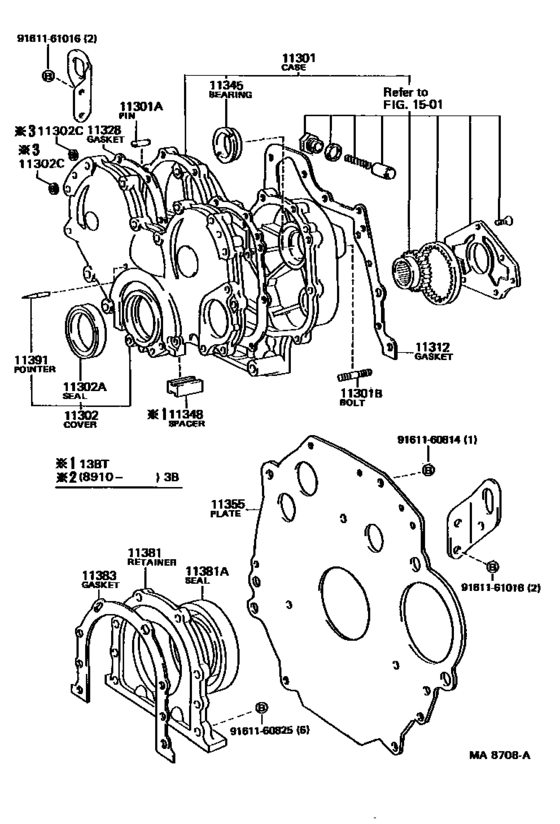

Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301
|
11301
11301-56060 Case Sub-Assy, Timing Gear[10.1985 - 01.1990] 13BT..BJ71 |
11301-56060 |
US $904.18 |
||
|
11301A
|
11301A
90250-08120 Pin, Straight, No.1[11.1984 - 01.1990] 13BT,3B..BJ7# L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11301B
|
11301B
90116-10048
Bolt,stud(For Timing Gear Case)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90116-10048 |
— | ||
| replacement | |||||
|
11301B
|
11301B
90116-10093 Bolt, Stud(For Turbocharger)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90116-10093 |
US $3.40 |
||
|
11302
|
11302
11302-56040
Cover Sub-Assy, Timing Chain Or Belt
[10.1985 - 01.1990] 13BT..BJ71 |
11302-56040 |
— | ||
|
11302A
|
11302A
90311-50007
Seal, Oil(For Timing Chain Or Belt Cover)
[03.1985 - 08.1988] 13BT,3B..BJ7# |
90311-50007 |
— | ||
| replacement | |||||
|
11302A
|
11302A
90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)[03.1985 - 08.1988] 13BT,3B..BJ7# |
90311-50013 |
from US $10.91 |
||
|
11302A
|
11302A
90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)[08.1988 - 01.1990] 13BT,3B..BJ7# |
90311-50013 |
from US $10.91 |
||
|
11312
|
11312
11312-56031
Gasket, Front End Plate
[11.1984 - 08.1988] 13BT,3B..BJ7# |
11312-56031 |
— | ||
| replacement | |||||
|
11312
|
11312
11312-56040 Gasket, Front End Plate[11.1984 - 08.1988] 13BT,3B..BJ7# |
11312-56040 |
US $9.32 |
||
|
11312
|
11312
11312-56040 Gasket, Front End Plate[08.1988 - 01.1990] 13BT,3B..BJ7# |
11312-56040 |
US $9.32 |
||
|
11328
|
11328
11328-56040
Gasket, Timing Gear Or Chain Cover
[10.1985 - 01.1990] 13BT..BJ71 |
11328-56040 |
— | ||
| replacement | |||||
|
11328
|
11328
11328-56041
Gasket, Timing Gear Or Chain Cover
[10.1985 - 01.1990] 13BT..BJ71 |
11328-56041 |
— | ||
|
11345
|
11345
11345-56020 Bearing, Injection Pump Gear Thrust[10.1985 - 01.1990] 13BT..BJ71 |
11345-56020 |
US $19.95 |
||
|
11348
|
11348
11348-56010
Spacer, Timing Gear Cover
[10.1985 - 01.1990] 13BT..BJ71 |
11348-56010 |
— | ||
|
11355
|
11355
11355-56053 Plate, Rear End[02.1985 - 08.1988] 13BT,3B..BJ7# |
11355-56053 |
US $147.06 |
||
| replacement | |||||
|
11355
|
11355
11355-58030 Plate, Rear End[02.1985 - 08.1988] 13BT,3B..BJ7# |
11355-58030 |
US $136.86 |
||
|
11355
|
11355
11355-56060 Plate, Rear End[08.1988 - 10.1989] 13BT,3B..BJ7# |
11355-56060 |
US $147.06 |
||
| replacement | |||||
|
11355
|
11355
11355-58030 Plate, Rear End[08.1988 - 10.1989] 13BT,3B..BJ7# |
11355-58030 |
US $136.86 |
||
|
11355
|
11355
11355-56061 Plate, Rear End[10.1989 - 01.1990] 13BT,3B..BJ7# |
11355-56061 |
US $85.90 |
||
|
11381
|
11381
11381-56031 Retainer, Engine Rear Oil Seal[11.1984 - 08.1988] 13BT,3B..BJ7# |
11381-56031 |
US $107.74 |
||
| replacements | |||||
|
11381
|
11381
11381-58011 Retainer, Engine Rear Oil Seal[11.1984 - 08.1988] 13BT,3B..BJ7# |
11381-58011 |
US $62.90 |
||
|
11381
|
11381
90311-95008 Seal, Engine Rear Oil[11.1984 - 08.1988] 13BT,3B..BJ7# |
90311-95008 |
from US $27.72 |
||
|
11381
|
11381
11381-56032 Retainer, Engine Rear Oil Seal[08.1988 - 10.1989] 13BT,3B..BJ7# |
11381-56032 |
US $96.10 |
||
| replacement | |||||
|
11381
|
11381
11381-58011 Retainer, Engine Rear Oil Seal[08.1988 - 10.1989] 13BT,3B..BJ7# |
11381-58011 |
US $62.90 |
||
|
11381
|
11381
11381-56033 Retainer, Engine Rear Oil Seal[10.1989 - 01.1990] 13BT,3B..BJ7# |
11381-56033 |
US $94.64 |
||
| replacement | |||||
|
11381
|
11381
11381-58011 Retainer, Engine Rear Oil Seal[10.1989 - 01.1990] 13BT,3B..BJ7# |
11381-58011 |
US $62.90 |
||
|
11381A
|
11381A
90311-95003 Seal, Engine Rear Oil[02.1985 - 08.1988] 13BT,3B..BJ7# |
90311-95003 |
US $27.72 |
||
|
11381A
|
11381A
90311-95005 Seal, Engine Rear Oil[08.1988 - 10.1989] 13BT,3B..BJ7# |
90311-95005 |
US $24.02 |
||
| replacement | |||||
|
11381A
|
11381A
90311-95008 Seal, Engine Rear Oil[08.1988 - 10.1989] 13BT,3B..BJ7# |
90311-95008 |
from US $27.72 |
||
|
11381A
|
11381A
90311-95008 Seal, Engine Rear Oil[10.1989 -] 13BT,3B..BJ7# |
90311-95008 |
from US $27.72 |
||
|
11383
|
11383
11383-56031
Gasket, Engine Rear Oil Seal Retainer
[11.1984 - 08.1988] 13BT,3B..BJ7# |
11383-56031 |
— | ||
| replacement | |||||
|
11383
|
11383
11383-56040 Gasket, Engine Rear Oil Seal Retainer[11.1984 - 08.1988] 13BT,3B..BJ7# |
11383-56040 |
from US $4.07 |
||
|
11383
|
11383
11383-56040 Gasket, Engine Rear Oil Seal Retainer[08.1988 - 01.1990] 13BT,3B..BJ7# |
11383-56040 |
from US $4.07 |
||
|
11391
|
11391
11391-56020
Pointer, Timing
[11.1984 - 08.1988] 13BT,3B..BJ7# |
11391-56020 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
