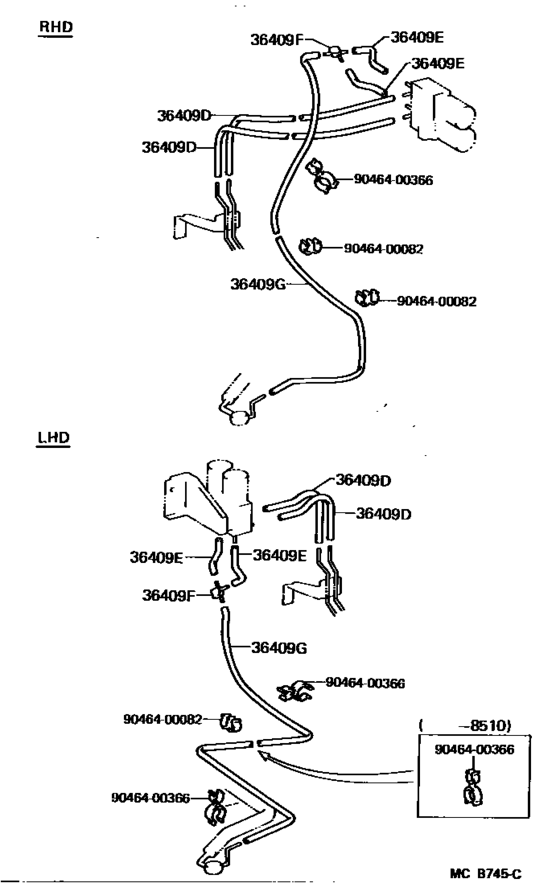

Transfer Vacuum Piping ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36409D
|
36409D
90999-92002
Air Hose (300 mm)
[03.1988 - 01.1990] BJ70,LJ70..RHD *H,L=260,MARK=#*; BJ7#,LJ7#,RJ7#..LHD *H,L=150,MARK=#* |
90999-92002 |
— | ||
|
36409D
|
36409D
95411-19930
Hose(For Carburetor To Manifold)
[11.1984 - 03.1988] BJ7#,LJ7#,RJ7#..LHD *H,L=150,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
36409D
|
36409D
90999-92002
Air Hose (300 mm)
[11.1984 - 03.1988] BJ7#,LJ7#,RJ7#..LHD *H,L=150,MARK=#* |
90999-92002 |
— | ||
|
36409E
|
36409E
90999-92002
Air Hose (300 mm)
[03.1988 - 01.1990] BJ7#,LJ7#,RJ7# *H,L=80,MARK=#* |
90999-92002 |
— | ||
|
36409E
|
36409E
95411-19930
Hose(For Carburetor To Manifold)
[11.1984 - 03.1988] BJ7#,LJ7#,RJ7# *H,L=80,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
36409E
|
36409E
90999-92002
Air Hose (300 mm)
[11.1984 - 03.1988] BJ7#,LJ7#,RJ7# *H,L=80,MARK=#* |
90999-92002 |
— | ||
|
36409F
|
36409F
90413-04005 Way, 3, No.1 (For Front Drive Shift)[11.1984 - 01.1990] BJ7#,LJ7#,RJ7# |
90413-04005 |
from US $3.40 |
||
|
36409G
|
36409G
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[03.1988 - 08.1988] BJ70..RHD L=950; BJ7#..LHD L=950 |
90999-92004 |
from US $8.76 |
||
|
36409G
|
36409G
95411-19995
Hose, Vaccum
[10.1985 - 03.1988] LJ7# *H,L=700,MARK=#*; BJ7#..LHD *H,L=850,MARK=#* |
95411-19995 |
— | ||
| replacement | |||||
|
36409G
|
36409G
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[10.1985 - 03.1988] LJ7# *H,L=700,MARK=#*; BJ7#..LHD *H,L=850,MARK=#* |
90999-92004 |
from US $8.76 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400366
|
9046400366
90464-00366 Clamp Or Clip(For Radiator Reserve Tank Hose No.3) |
90464-00366 |
US $5.82 |
||
