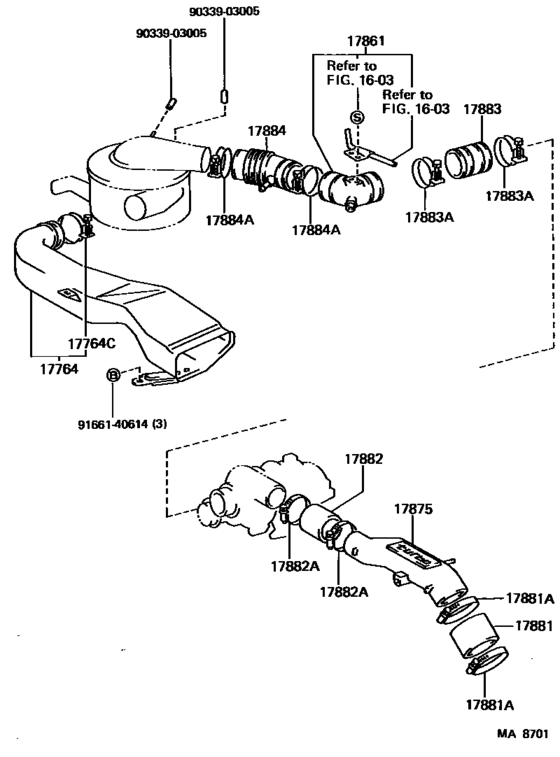

Air Cleaner ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17764
|
17764
53207-90K06
Duct, Air Cleaner
[10.1985 - 01.1990] 13BT..BJ71,74 |
53207-90K06 |
— | ||
|
17764C
|
17764C
96111-10800 Clamp, Hose(For Air Cleaner Duct)[11.1984 - 01.1990] 13BT,3B..BJ7# |
96111-10800 |
from US $2.87 |
||
|
17861
|
17861
17885-58080
Connector, Intake Air
[10.1985 - 01.1990] 13BT..BJ71,74 |
17885-58080 |
— | ||
|
17875
|
17875
17113-58020
Pipe, Intake Air Connector
[10.1985 - 01.1990] 13BT..BJ71,74 |
17113-58020 |
— | ||
|
17881
|
17881
17349-58010
Hose, Intake Pipe
[10.1985 - 01.1990] 13BT..BJ71,74 |
17349-58010 |
— | ||
| replacement | |||||
|
17881
|
17881
17349-58020
Hose, Intake Pipe
[10.1985 - 01.1990] 13BT..BJ71,74 |
17349-58020 |
— | ||
|
17881A
|
17881A
90460-80001
Clamp, Hose
[10.1985 - 01.1990] 13BT..BJ71,74 |
90460-80001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-80006 Clamp, Hose[10.1985 - 01.1990] 13BT..BJ71,74 |
90460-80006 |
from US $8.11 |
||
|
17882
|
17882
17341-58010
Hose, Air Cleaner, No.2
[10.1985 - 01.1990] 13BT..BJ71,74 |
17341-58010 |
— | ||
| replacement | |||||
|
17882
|
17882
17341-58140 Hose, Air, No.1(For Intercooler)[10.1985 - 01.1990] 13BT..BJ71,74 |
17341-58140 |
US $45.08 |
||
|
17882A
|
17882A
90460-65004
Clamp Or Clip(For Air Hose, No.1)
[10.1985 - 01.1990] 13BT..BJ71,74 |
90460-65004 |
— | ||
| replacement | |||||
|
17882A
|
17882A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[10.1985 - 01.1990] 13BT..BJ71,74 |
90460-65002 |
from US $3.69 |
||
|
17883
|
17883
17881-58120
Hose, Air Cleaner, No.3
[10.1985 - 01.1990] 13BT..BJ71,74 |
17881-58120 |
— | ||
|
17883A
|
17883A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[12.1985 - 01.1990] 13BT..BJ71,74 |
96111-10800 |
from US $2.87 |
||
|
17883A
|
17883A
96111-10830 Clamp, Hose(For Air Connector)[10.1985 - 12.1985] 13BT..BJ71,74 |
96111-10830 |
from US $3.23 |
||
|
17884
|
17884
17882-58080
Hose, Air Cleaner, No.4
[10.1985 - 01.1990] 13BT..BJ71,74 |
17882-58080 |
— | ||
|
17884A
|
17884A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[12.1985 - 01.1990] 13BT..BJ71,74 |
96111-10800 |
from US $2.87 |
||
|
17884A
|
17884A
96111-10830 Clamp, Hose(For Air Connector)[10.1985 - 12.1985] 13BT..BJ71,74 |
96111-10830 |
from US $3.23 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.97 |
||
