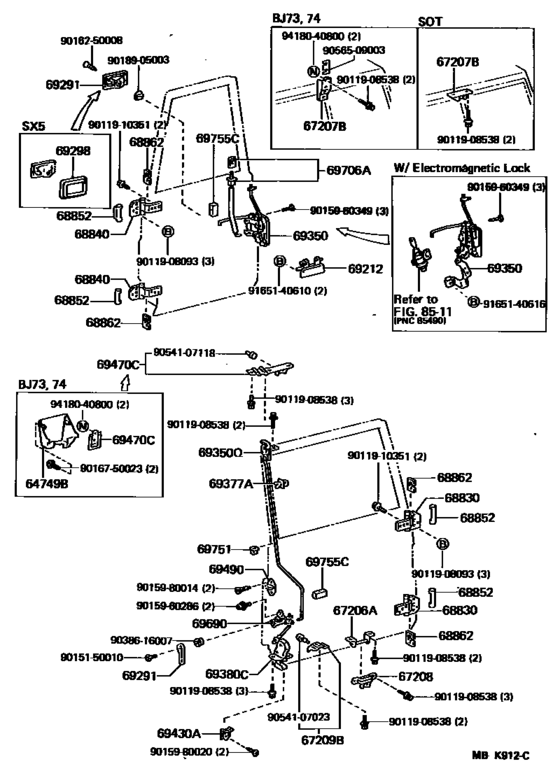

Back Door Lock & Hinge ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67206A
|
67206A
67206-90K00 Bracket Sub-Assy, Back Door Stopper[11.1984 - 01.1990] BJ7#,LJ71 |
67206-90K00 |
US $16.84 |
||
|
67208
|
67208
67208-90K00
Stopper Sub-Assy, Back Door, No.2
[11.1984 - 01.1990] BJ7#,LJ71 |
67208-90K00 |
— | ||
| replacement | |||||
|
67208
|
67208
67208-60031 Stopper Sub-Assy, Back Door, No.2[11.1984 - 01.1990] BJ7#,LJ71 |
67208-60031 |
from US $25.94 |
||
|
67209B
|
67209B
67207-90K00 Stopper Sub-Assy, Back Door[11.1984 - 01.1990] BJ7#,LJ71 |
67207-90K00 |
US $11.83 |
||
|
68830
|
68830
68801-90K00 Hinge Sub-Assy, Back Door, Upper Rh[11.1984 - 01.1990] BJ7#,LJ71 UPR |
68801-90K00 |
from US $101.68 |
||
|
68830
|
68830
68803-90K00 Hinge Sub-Assy, Back Door, Lower Rh[11.1984 - 01.1990] BJ7#,LJ71 LWR |
68803-90K00 |
from US $98.27 |
||
|
68840
|
68840
68802-90K00 Hinge Sub-Assy, Back Door, Upper Lh[11.1984 - 01.1990] BJ7#,LJ71 UPR |
68802-90K00 |
from US $92.57 |
||
|
68840
|
68840
68804-90K00 Hinge Sub-Assy, Back Door, Lower Lh[11.1984 - 01.1990] BJ7#,LJ71 LWR |
68804-90K00 |
from US $88.56 |
||
|
68852
|
68852
68851-90K00 Cover, Back Door Hinge, Upper[11.1984 - 01.1990] BJ7#,LJ71 UPR |
68851-90K00 |
from US $9.14 |
||
|
68852
|
68852
68852-90K00 Cover, Back Door Hinge[11.1984 - 01.1990] BJ7#,LJ71 LWR |
68852-90K00 |
from US $9.14 |
||
|
68862
|
68862
68861-90K00 Pad, Back Door Hinge Male, Rh[11.1984 - 01.1990] BJ7#,LJ71 |
68861-90K00 |
from US $0.99 |
||
|
69212
|
69212
69220-32010 Handle, Back Door Outside, Lh[11.1984 - 01.1990] BJ7#,LJ71 |
69220-32010 |
from US $30.53 |
||
|
69291
|
69291
69206-10050-03
Handle Sub-Assy, Front Door Inside, Lh
[11.1984 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,GRAY,GRAY |
69206-10050-03 |
— | ||
| replacement | |||||
|
69291
|
69291
69206-10030-P0
Handle Sub-Assy, Front Door Inside, Rh
[11.1984 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,GRAY,GRAY |
69206-10030-P0 |
— | ||
|
69291
|
69291
69206-10050-06
Handle Sub-Assy, Front Door Inside, Lh
[11.1984 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,BROWN,SEPIA BROWN |
69206-10050-06 |
— | ||
| replacement | |||||
|
69291
|
69291
69206-10050-33
Handle Assy, Back Door Inside
[11.1984 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,BROWN,SEPIA BROWN |
69206-10050-33 |
— | ||
|
69291
|
69291
69212-90K00
Handle, Back Door Inside
[11.1984 - 01.1990] BJ7#,LJ71 RH |
69212-90K00 |
— | ||
| replacements | |||||
|
69291
|
69291
69212-60030 Handle, Back Door Inside[11.1984 - 01.1990] BJ7#,LJ71 RH |
69212-60030 |
from US $10.05 |
||
|
69291
|
69291
90149-50064 SCREW[11.1984 - 01.1990] BJ7#,LJ71 RH |
90149-50064 |
from US $0.68 |
||
|
69350
|
69350
69350-90K00
Lock Assy, Back Door
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
69350-90K00 |
— | ||
| replacement | |||||
|
69350
|
69350
69350-60080 Lock Assy, Back Door[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
69350-60080 |
from US $111.52 |
||
|
69350
|
69350
69350-90K04
Lock Assy, Back Door
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/*EL |
69350-90K04 |
— | ||
|
69350Q
|
69350Q
69350-90K01
Lock Assy, Back Door, Upper
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
69350-90K01 |
— | ||
| replacement | |||||
|
69350Q
|
69350Q
69350-60170
Lock Assy, Back Door, Upper
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
69350-60170 |
— | ||
|
69377A
|
69377A
69377-90K00 Snap, Back Door Upper Lock Rod[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
69377-90K00 |
US $2.51 |
||
|
69380C
|
69380C
69380-90K00 Lock Assy, Back Door, Lower[11.1984 - 01.1990] BJ7#,LJ71 |
69380-90K00 |
from US $61.15 |
||
|
69430A
|
69430A
69430-90K00
Striker Assy, Back Door Lower Lock
[11.1984 - 01.1990] BJ7#,LJ71 |
69430-90K00 |
— | ||
| replacement | |||||
|
69430A
|
69430A
69430-60050 Striker Assy, Back Door Lower Lock[11.1984 - 01.1990] BJ7#,LJ71 |
69430-60050 |
US $17.02 |
||
|
69470C
|
69470C
69470-90K00
Striker Assy, Back Door Upper Lock
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
69470-90K00 |
— | ||
| replacement | |||||
|
69470C
|
69470C
69470-60020 Striker Assy, Back Door Upper Lock[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
69470-60020 |
US $26.04 |
||
|
69490
|
69490
69410-14050
Plate Assy, Front Door Lock Striker
[11.1984 - 01.1990] BJ7#,LJ71 |
69410-14050 |
— | ||
| replacement | |||||
|
69490
|
69490
69410-20070 Plate Assy, Front Door Lock Striker[11.1984 - 01.1990] BJ7#,LJ71 |
69410-20070 |
from US $18.51 |
||
|
69690
|
69690
69690-90K00 Control Assy, Back Door Remote[11.1984 - 01.1990] BJ7#,LJ71 |
69690-90K00 |
from US $26.21 |
||
|
69706A
|
69706A
69706-90K00-03
Rod Sub-Assy, Back Door Lock Remote Control
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD GRAY,SHADOW GRAY |
69706-90K00-03 |
— | ||
| replacement | |||||
|
69706A
|
69706A
69706-90K00-B0
Rod Sub-Assy, Back Door Lock Remote Control
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD GRAY,SHADOW GRAY |
69706-90K00-B0 |
— | ||
|
69706A
|
69706A
69706-90K00-06 Rod Sub-Assy, Back Door Lock Remote Control[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD BROWN,SEPIA BROWN |
69706-90K00-06 |
US $24.46 |
||
| replacement | |||||
|
69706A
|
69706A
69706-90K00-B0
Rod Sub-Assy, Back Door Lock Remote Control
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD BROWN,SEPIA BROWN |
69706-90K00-B0 |
— | ||
|
69706A
|
69706A
69706-90K02-03
Rod Sub-Assy, Back Door Lock Remote Control
[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*EL,GRAY,SHADOW GRAY |
69706-90K02-03 |
— | ||
|
69706A
|
69706A
69706-90K02-06 Rod Sub-Assy, Back Door Lock Remote Control[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*EL,BROWN,SEPIA BROWN |
69706-90K02-06 |
US $24.32 |
||
|
69751
|
69751
69751-90K00 Holder, Door Lock Control Knob[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
69751-90K00 |
US $2.51 |
||
|
69755C
|
69755C
69759-90K00 Silencer, Back Door Lock Link[11.1984 - 01.1990] BJ7#,LJ71 |
69759-90K00 |
US $2.51 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.20 |
||
|
9011908538
|
9011908538
90119-08538 SCREW |
90119-08538 |
US $1.61 |
||
|
9011910351
|
9011910351
90119-10351 BOLT |
90119-10351 |
US $6.45 |
||
|
9015150010
|
9015150010
90151-50010 Screw |
90151-50010 |
US $1.25 |
||
|
9015960286
|
9015960286
90159-60286 SCREW |
90159-60286 |
from US $0.95 |
||
|
9015960349
|
9015960349
90159-60349 SCREW WWASHER |
90159-60349 |
US $1.25 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $2.15 |
||
|
9015980020
|
9015980020
90159-80020
SCREW
|
90159-80020 |
— | ||
| replacement | |||||
|
9015980020
|
9015980020
90151-80016 SCREW CROSSRECESS |
90151-80016 |
US $2.33 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
from US $0.84 |
||
|
9016750023
|
9016750023
90167-50023 New Genuine Part |
90167-50023 |
US $1.60 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.10 |
||
|
9038616007
|
9038616007
90386-16007 BUSH |
90386-16007 |
from US $1.97 |
||
|
9054107023
|
9054107023
90541-07023 BUSH |
90541-07023 |
from US $1.97 |
||
|
9054107118
|
9054107118
90541-07118
Cushion, Hood Bumper
|
90541-07118 |
— | ||
|
9056509003
|
9056509003
90565-09003
SHIM
|
90565-09003 |
— | ||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.52 |
||
