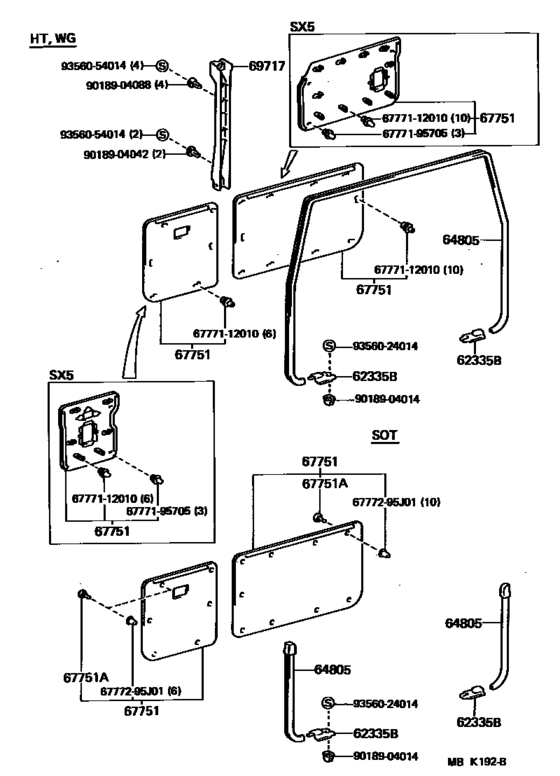

Back Door Panel & Glass ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62335B
|
62335B
62335-90K00
Cover, Back Door Opening Trim
[11.1984 - 01.1990] BJ7#,LJ71 RH |
62335-90K00 |
— | ||
|
62335B
|
62335B
62336-90K00
Cover, Back Door Opening Trim
[11.1984 - 01.1990] BJ7#,LJ71 LH |
62336-90K00 |
— | ||
|
64805
|
64805
62333-90K01-03
Trim Sub-Assy, Back Door Opening
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG GRAY,SHADOW GRAY |
62333-90K01-03 |
— | ||
| replacement | |||||
|
64805
|
64805
62333-90K01-13
Trim Sub-Assy, Back Door Opening
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG GRAY,SHADOW GRAY |
62333-90K01-13 |
— | ||
|
64805
|
64805
62333-90K01-06
Trim Sub-Assy, Back Door Opening
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG BROWN,SEPIA BROWN |
62333-90K01-06 |
— | ||
| replacement | |||||
|
64805
|
64805
62333-90K01-13
Trim Sub-Assy, Back Door Opening
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG BROWN,SEPIA BROWN |
62333-90K01-13 |
— | ||
|
67751
|
67751
64780-90K00-03
Board, Back Door Trim
[11.1984 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) RH,GRAY,GRAY |
64780-90K00-03 |
— | ||
|
67751
|
67751
64780-90K00-05
Board, Back Door Trim
[11.1984 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) RH,BEIGE,BEIGE |
64780-90K00-05 |
— | ||
|
67751
|
67751
64790-90K00-03
Board, Back Door Trim
[11.1984 - 08.1986] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,GRAY,GRAY |
64790-90K00-03 |
— | ||
|
67751
|
67751
64790-90K00-05
Board, Back Door Trim
[11.1984 - 08.1986] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,BEIGE,BEIGE |
64790-90K00-05 |
— | ||
|
67751
|
67751
64790-90K07-03
Board, Back Door Trim
[08.1986 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,GRAY,GRAY |
64790-90K07-03 |
— | ||
|
67751
|
67751
64790-90K07-05
Board, Back Door Trim
[08.1986 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) LH,BEIGE,BEIGE |
64790-90K07-05 |
— | ||
|
69717
|
69717
69717-90K00-01 Cover, Back Door Lock Control Link[11.1984 - 01.1990] BJ7#,LJ71..HT,WG BLACK,BLACK |
69717-90K00-01 |
US $30.58 |
||
| replacement | |||||
|
69717
|
69717
69717-90K00-20 Cover, Back Door Lock Control Link[11.1984 - 01.1990] BJ7#,LJ71..HT,WG BLACK,BLACK |
69717-90K00-20 |
from US $21.17 |
||
|
6777295J01
|
6777295J01
67772-95J01 Retainer, Front Door Lower Frame Bracket Garnish |
67772-95J01 |
from US $1.37 |
||
|
6777112010
|
6777112010
67771-12010 Retainer, Door Trim |
67771-12010 |
from US $1.77 |
||
|
6777195705
|
6777195705
67771-95705 Weatherstrip, Back Door Trim, Rh |
67771-95705 |
US $3.20 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.95 |
||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.97 |
||
|
9018904088
|
9018904088
90189-04088 GROMMET |
90189-04088 |
US $1.43 |
||
|
9356024014
|
9356024014
93560-24014 Screw |
93560-24014 |
US $1.43 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.68 |
||
