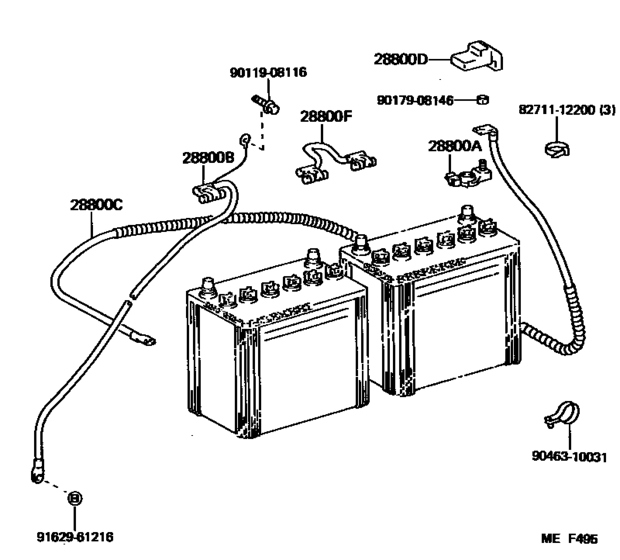

Battery & Battery Cable ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800A
|
28800A
90982-05031
Terminal, Battery Positive
[04.1985 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 |
90982-05031 |
— | ||
| replacement | |||||
|
28800A
|
28800A
82675-60030 Terminal, Battery PositiveBATTERY POSITIVE [04.1985 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 |
82675-60030 |
from US $7.60 |
||
|
28800B
|
28800B
82123-90K03
Cable, Battery To Ground
[11.1984 - 01.1990] 13BT,3B..BJ7# |
82123-90K03 |
— | ||
|
28800C
|
28800C
82122-90K02
Cable, Battery To Starter(For Battery To Main Switch)
[11.1984 - 01.1990] 13BT,3B..BJ7# |
82122-90K02 |
— | ||
|
28800D
|
28800D
82821-24010 Cover, Connector(For Battery Terminal)[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 |
82821-24010 |
from US $5.56 |
||
|
28800F
|
28800F
82122-90K03
Cable, Battery To Battery
[11.1984 - 01.1990] 13BT,3B..BJ7# |
82122-90K03 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046310031
|
9046310031
90463-10031 New Genuine Part |
90463-10031 |
US $1.05 |
||
|
9162961216
|
9162961216
91629-61216 New Genuine Part |
91629-61216 |
US $1.05 |
||
