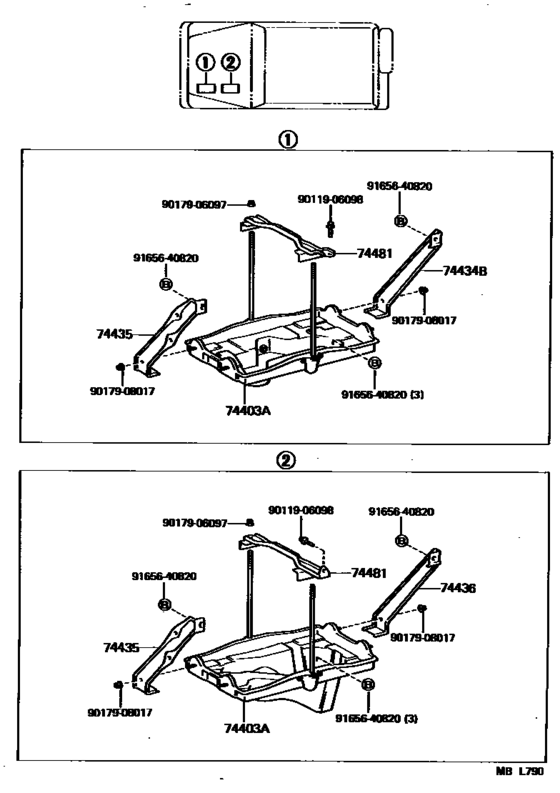

Battery Carrier ([04.1987 - ] (8704- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74403A
|
74403A
74403-90K02 Carrier Sub-Assy, Battery[04.1987 - 01.1990] BJ7# RR |
74403-90K02 |
US $109.20 |
||
| replacement | |||||
|
74403A
|
74403A
74403-60140
Carrier Sub-Assy, Battery
[04.1987 - 01.1990] BJ7# RR |
74403-60140 |
— | ||
|
74403A
|
74403A
74403-90K04
Carrier Sub-Assy, Battery
[04.1987 - 01.1990] BJ7# FR |
74403-90K04 |
— | ||
| replacement | |||||
|
74403A
|
74403A
74403-60160 Carrier Sub-Assy, Battery[04.1987 - 01.1990] BJ7# FR |
74403-60160 |
from US $81.36 |
||
|
74434B
|
74434B
74434-90K03 Support, Battery Tray, No.2[10.1985 - 01.1990] BJ7# |
74434-90K03 |
US $50.84 |
||
|
74435
|
74435
74435-90K03 Support, Battery Tray, No.3[10.1985 - 01.1990] BJ71,74 |
74435-90K03 |
US $53 |
||
|
74436
|
74436
74436-90K02 Support, Battery Tray, No.4[11.1984 - 01.1990] BJ7# |
74436-90K02 |
from US $44.71 |
||
|
74481
|
74481
74404-90K01
Clamp, Battery Hold Down
[11.1984 - 01.1990] BJ7# FR |
74404-90K01 |
— | ||
| replacement | |||||
|
74481
|
74481
74404-60090 Clamp, Battery Hold Down[11.1984 - 01.1990] BJ7# FR |
74404-60090 |
from US $13.98 |
||
|
74481
|
74481
74405-90K01
Clamp, Battery Hold Down
[11.1984 - 01.1990] BJ7# RR |
74405-90K01 |
— | ||
| replacement | |||||
|
74481
|
74481
74405-60030 Clamp, Battery Hold Down[11.1984 - 01.1990] BJ7# RR |
74405-60030 |
from US $24.80 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.43 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
