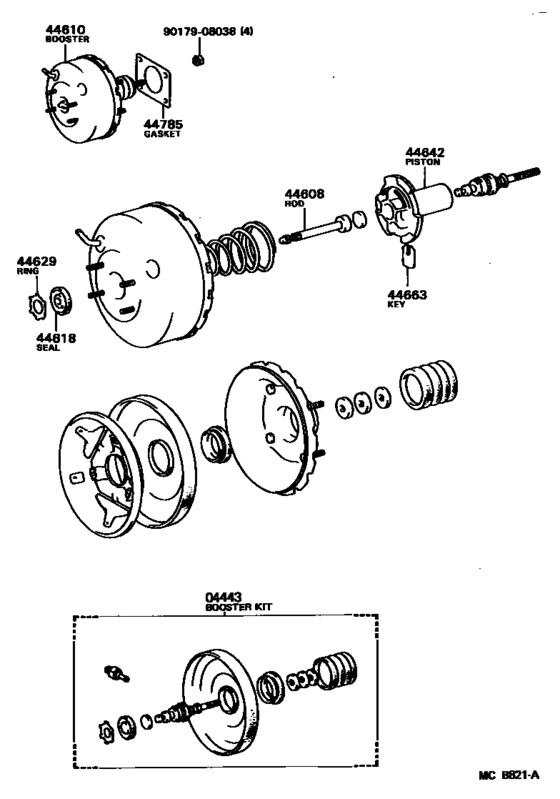

Brake Booster & Vacuum Tube ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04443
|
04443
04443-60300 Booster Kit, Brake[10.1985 - 01.1990] BJ71,74,LJ71 |
04443-60300 |
US $155.79 |
||
|
44608
|
44608
44606-12520
Rod Sub-Assy, Booster Piston(For Clutch Booster)
[11.1984 - 01.1990] BJ7#,LJ71 |
44606-12520 |
— | ||
|
44610
|
44610
44610-60460 Booster Assy, Brake[10.1985 - 01.1990] BJ71,74,LJ71 |
44610-60460 |
US $717.60 |
||
|
44618
|
44618
44621-28120 Seal, Booster Body No.1(For Clutch Booster)[11.1984 - 01.1990] BJ7#,LJ71 |
44621-28120 |
from US $4.24 |
||
|
44629
|
44629
44628-28120 Ring, Circular Internal(For Clutch Booster)[11.1984 - 01.1990] BJ7#,LJ71 |
44628-28120 |
US $6.99 |
||
|
44642
|
44642
44642-60450
Piston, Brake Booster
[10.1985 - 01.1990] BJ71,74,LJ71 |
44642-60450 |
— | ||
|
44663
|
44663
44635-28120 Key, Valve Stopper[11.1984 - 01.1990] BJ7#,LJ71 |
44635-28120 |
US $4.95 |
||
|
44785
|
44785
44785-35020 Gasket, Brake Booster Bracket[11.1984 - 01.1990] BJ7#,LJ71 |
44785-35020 |
from US $1.14 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
